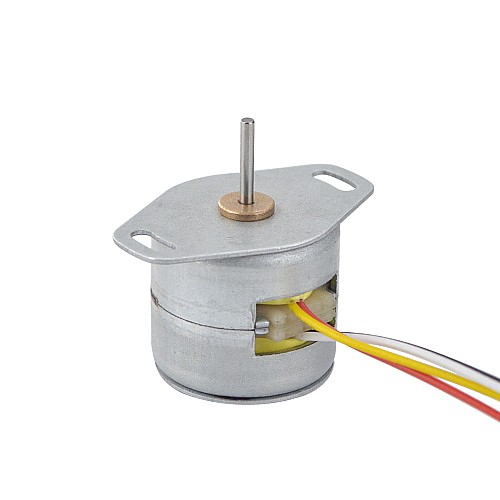

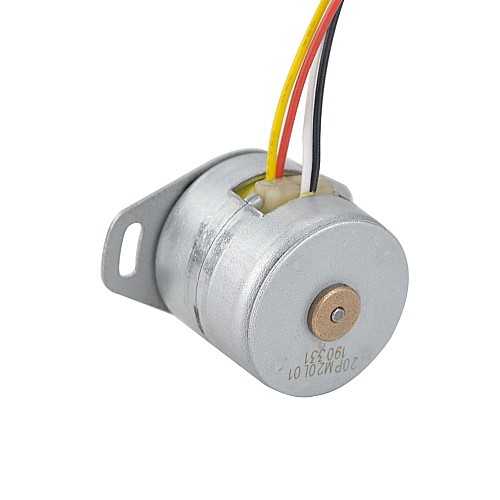

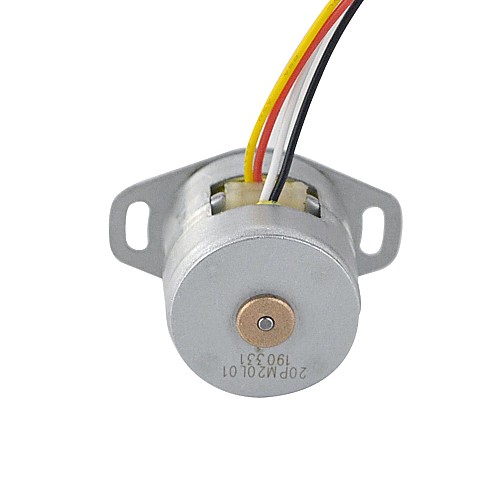

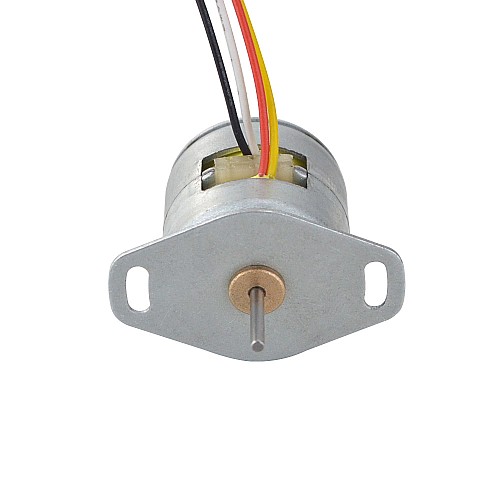

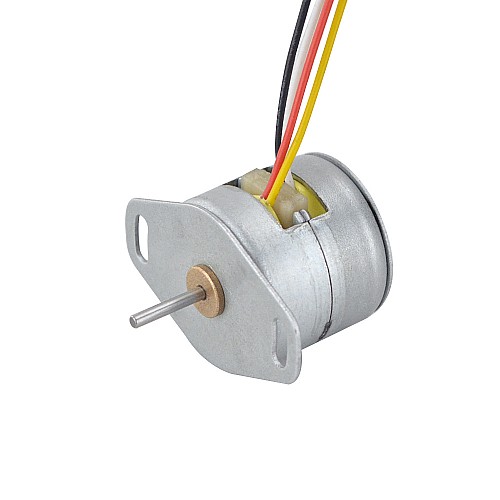

Φ20x18.2mm PM Stepper motor 18deg 5.88mN.m(0.833oz.in) 0.5A 4 Wires

0 reviews - Write a review

C$5.31

5 + C$4.93

10 + C$4.77

50 + C$4.60

100 + C$4.45

In Stock: 10000
Model: 20PM20L01
Gross Weight: 0.04kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 20PM20L01
Motor Type: PM Stepper
Phase: 2
Step Angle: 18deg
Rated Current/phase: 0.5A
Holding Torque: 5.88mN.m(0.833oz.in)
Detent Torque: 1.98mN.m(0.28oz.in)
Phase Resistance: 10±10%ohms(20℃)
Insulation Class: B 130°C[266°F]
Inductance: 4.3mH±20%
Rotor Inertia: Less than 1.0g.cm²
Life: 3000h MIN(20℃, 200 pps)

Physical Specification

Frame Size: Φ20mm
Body Length: 18.2mm
Shaft Diameter: Φ1.5mm
Shaft Length: 10.5mm

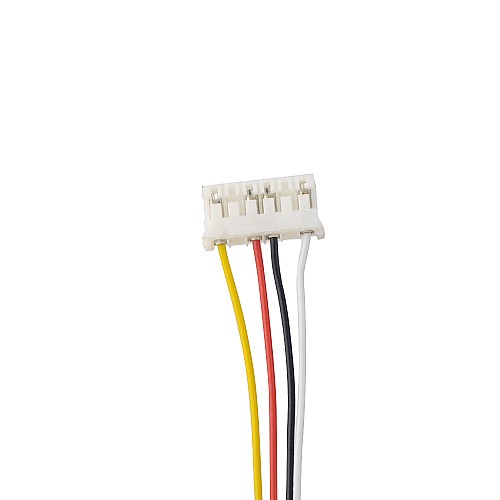

Number of Leads: 4 with connector PH-6Y
Lead Length: 250mm
Weight: 24g

Connection

A+	A-	B+	B-
Yellow	Red	White	Black

Product Type
Product Type	PM Rotary Stepper Motor
Electrical Specification
Detent Torque(mN.m)	1.98
Detent Torque(oz.in)	0.28
Holding Torque(mN.m)	5.88
Holding Torque(oz.in)	0.833
Inductance(mH)	4.3
No. of Phase	2
Phase Resistance(ohms)	10
Rated Current(A)	0.5
Step Angle(deg.)	18
Physical Specification
Body Length(mm)	18.2
Frame Size(mm)	Φ20
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	250
No. of Lead	4
Shaft Diameter(mm)	1.5
Shaft Length(mm)	10.5
