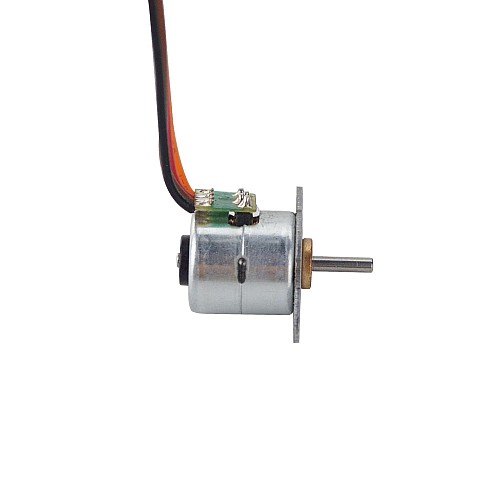

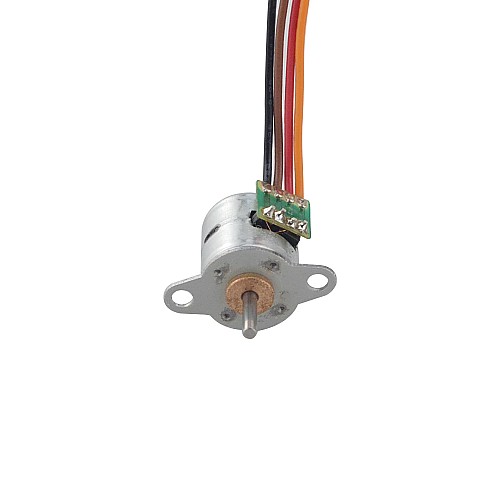

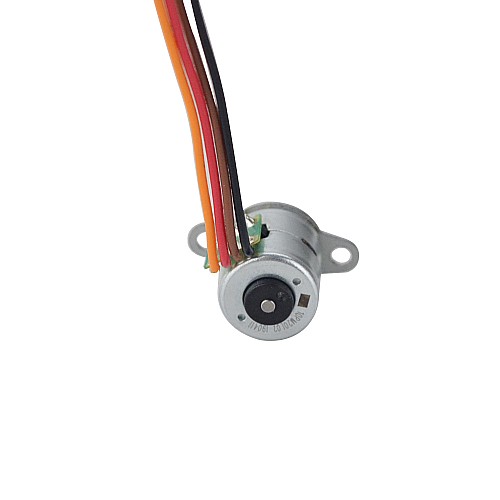

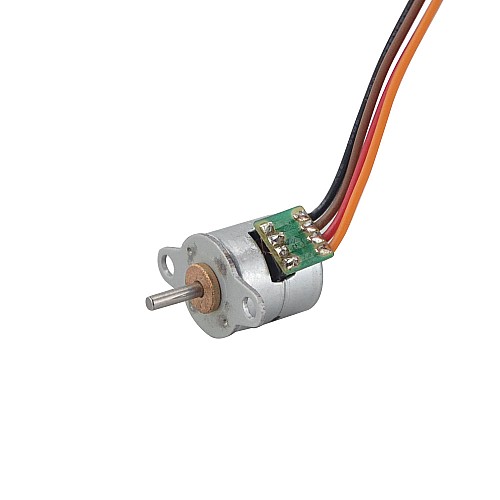

Φ10.25x11mm PM Stepper motor 18deg 1.96mN.m(0.278oz.in) 0.2A 4 Wires

1 reviews - Write a review

C$5.70

5 + C$5.28

10 + C$5.11

50 + C$4.93

100 + C$4.77

In Stock: 10000
Model: 10PM20L02
Gross Weight: 0.02kg
Certificated: ISO, CE

Sold: 185

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 10PM20L02
Motor Type: PM Stepper
Phase: 2
Step Angle: 18deg
Rated Current/phase: 0.2A
Holding Torque: 1.96mN.m(0.278oz.in)
Detent Torque: 0.98mN.m(0.139oz.in)
Phase Resistance: 26±7%ohms(20℃)
Insulation Class: B 130°C[266°F]
Inductance: 3.8mH±20%(1KHz)
Rotor Inertia: Less than 1.0g.cm²
Life: 3000h MIN(20℃, 100pps)

Physical Specification

Frame Size: Φ10.25mm
Body Length: 11mm
Shaft Diameter: Φ1.5mm
Shaft Length: 7mm

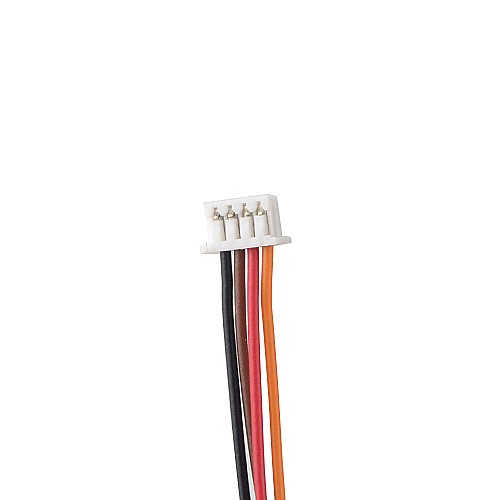

Number of Leads: 4 with connector Molex-4Y
Lead Length: 100mm
Weight: 5.5g

Connection

A+	A-	B+	B-
Red	Black	Brown	Orange

Product Type
Product Type	PM Rotary Stepper Motor
Electrical Specification
Detent Torque(mN.m)	0.98
Detent Torque(oz.in)	0.139
Holding Torque(mN.m)	1.96
Holding Torque(oz.in)	0.278
Inductance(mH)	3.8
No. of Phase	2
Phase Resistance(ohms)	26
Rated Current(A)	0.2
Step Angle(deg.)	18
Physical Specification
Body Length(mm)	11
Frame Size(mm)	Φ10.25
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	100
Shaft Diameter(mm)	1.5
Shaft Length(mm)	7
