1 Axis Stepper CNC Kit 12.0Nm(1699.34oz.in) Nema 34 Stepper Motor & Driver & 60V Power Supply - 1-DM860I-S120 | StepperOnline CA

1 Axis Stepper CNC Kit 12.0Nm(1699.34oz.in) Nema 34 Stepper Motor & Driver & 60V Power Supply

0 reviews - Write a review

C$127.28

5 + C$123.57

10 + C$120.06

50 + C$116.76

100 + C$113.62

In Stock: 10000
Model: 1-DM860I-S120
Gross Weight: 7.09kg
Certificated: ISO, CE, UKCA

Available Options

Ships from

China

United States

Germany

United Kingdom

Australia

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

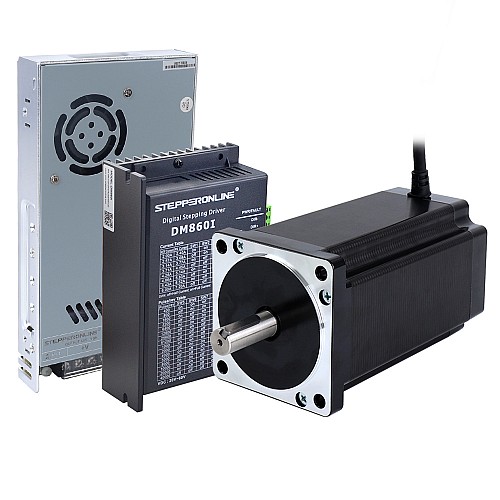

This CNC kit included:

1 x DM860I: Digital Stepper Drive 2.4-7.2A 20-80VDC for Nema 34 Stepper Motor CNC Kit
1 x 34HS59-6004S: Nema 34 Stepper Motor Bipolar 1.8deg 12.0Nm(1699.34oz.in) 6.0A 86x86x151.5mm 4 Wires
1 x LE-350-60: 350W 60V 5.8A 115/230V Switching Power Supply

Motor Specification

Manufacturer Part Number: 34HS59-6004S
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 12.0Nm(1699.34oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.7ohms±10%
Inductance: 7.9mH±20%(1KHz)
Frame Size: 86 x 86mm
Body Length: 151.5mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Keyway Shaft Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Insulation Class: B 130°C[266°F]

Driver Specification

Output Peak Current: 2.4~7.2A(6.0RMS)
Input Voltage: +20~80VDC
Logic Signal Current: 7~16mA(Typical 10mA)
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 100MΩ
Support PUL/DIR and CW/CCW modes
Automatic idle-current reduction
Suitable for 2-phase and 4-phase motors
Soft-start with no "jump" when powered on
Over-voltage, over-curren protection
Anti-Resonance provides optimal torque and nulls mid-range instability
Pulse input frequency up to 200KHz, TTL compatible and optically isolated input
8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A
Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
16 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000
Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement, works well as Cnc drive as well.

Power Specification

Part Number: LE-350-60
Input Voltage: 115/230VAC±20%
Input Frequency: 47-63Hz
Input Current: 40A/230VAC
Output Voltage: 60V
Output Current: 5.8A
Rated Output Power: 350W
Leakage Current: <0.5mA/230VAC
Dimensions: 215*115*30mm(L*W*H)
Internal EMI filter
High efficiency low cost
Forced air cooling by built-in DC fan
Over current, over voltage, short circuit and overheat protections

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

We will gradually replace the power supplies in this kit with the latest model: LE-350-60. The new power supply is an ultra-thin power supply optimized for industrial automation. During the replacement process, each warehouse may randomly ship new and old versions.

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Open Loop Stepper Kit
Electrical Specification
Holding Torque(Ncm)	1200
Holding Torque(oz.in)	1699.34
Input Voltage Reference(V)	20 - 80DC
No. of Phase	2
Number of Axes	1
Physical Specification
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
Output Shaft Type	Keyway
Power Supply	Power Supply
Product Series	TS Series
Shaft Diameter(mm)	14

File	Size
S-350-60.pdf	128.44KB	Download
DM860I.pdf	625.95KB	Download
DM860I.STEP	3.1MB	Download
34HS59-6004S_Torque_Curve.pdf	159.6KB	Download
LE-350-60.STEP	2.28MB	Download
LE-350-60.pdf	229.51KB	Download
