220V 2.2KW Φ80x210mm Water Cooled Spindle Motor and 3HP 2.2KW 12.5A Variable Frequency Drive Kit

0 reviews - Write a review

C$0.00

In Stock: 1
Model: VSK-W2.2B
Gross Weight: 6.79kg
Certificated: ISO

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

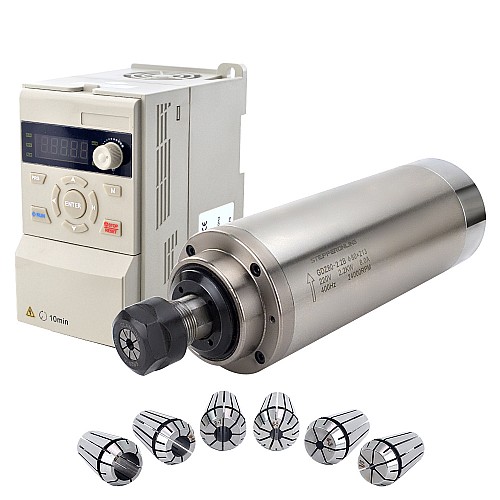

This spindle kit includes:

1 x GDZ80-2.2B CNC Spindle Motor Water Cooled 220V 2.2KW 24000RPM 400Hz ER20 Collet
1 x EV51S20022BX0 EV51 Series VFD 3HP 2.2KW 12.5A Single Phase 220V

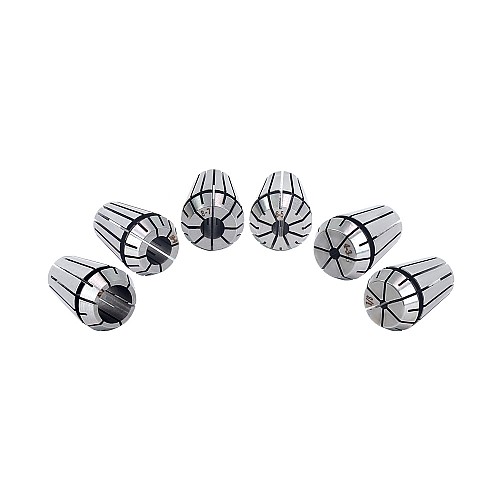

1 x ER20-D3 ER20 Φ3.175mm High Precision Collet
1 x ER20-D4 ER20 Φ4mm High Precision Collet
1 x ER20-D6 ER20 Φ6mm High Precision Collet
1 x ER20-D8 ER20 Φ8mm High Precision Collet
1 x ER20-D10 ER20 Φ10mm High Precision Collet
1 x ER20-D13 ER20 Φ12.7mm High Precision Collet

Spindle Motor Specification

Manufacturer Part Number: GDZ80-2.2B
Material: Stainless steel
Size: Ø80x210(Middle body diameter: 80mm, Length:210mm)
Power: 2.2KW
Voltage: 220VAC
Current: 8A
Frequency: 0 ~ 400Hz
Speed: 0 ~ 24000RPM
Cooling: Water cooled
Bearing Lubrication: Grease
Collet size: ER20 Collet(6mm)
Weight: 5.26kg

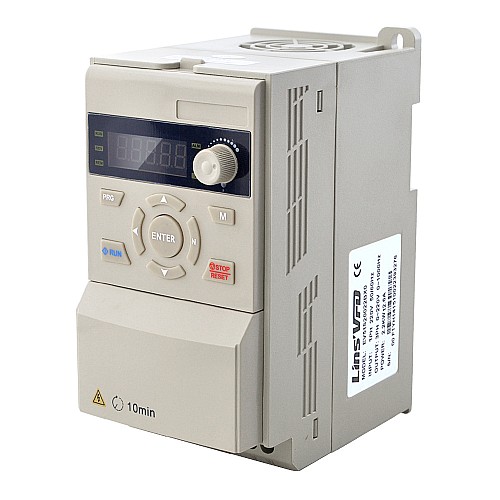

Variable Frequency Drive Specification

Manufacturer Part Number: EV51S20022BX0
Rated Input Voltage: 1-Phase 220V
Allowed Input Voltage: 1-Phase 180~260VAC
Input Frequency: 50/60Hz(+/-5%)
Input Current: 1-Phase 14A
Power: 3HP(2.2KW)
Output Current: 12.5A
Output Voltage: 0~Rated Input Voltage
Output Frequency: 0~1000Hz
Output Capacity: 150% Rated Current 60s, 180% Rated Current 2s

Operating Environment
Cooling Method	Water cooled
Product Type
Product Type	Motor & VFD Kit
Spindle Motor Specification
Bearing Lubrication	Grease
Body Length(mm)	210
Collet Size	ER20
Diameter(mm)	80
Power(Kw)	2.2
Shape	Round
Voltage(VAC)	220
Variable Frequency Drive Specification
Input Voltage	1PH 220VAC
Output Current	12.5A
Output Power	3HP / 2.2KW
Electrical Specification
Frequency(Hz)	0 - 400
Speed(rpm)	0 - 24000
Physical Specification
Inventory Method	Dedicated Inventory

File	Size
GDZ80-1.5B_Full_Datasheet.pdf	88.28KB	Download
ER11-D3.pdf	97.71KB	Download
ER11-D3.STEP	415.32KB	Download
EV51_Series_Inverter_Easy_User_Manual.pdf	6.82MB	Download
ER11-D4.pdf	98.03KB	Download
ER11-D4.STEP	415.29KB	Download
ER11-D6.pdf	98.69KB	Download
ER11-D6.STEP	415.24KB	Download
ER20-D13.pdf	97.3KB	Download
ER20-D13.STEP	370.17KB	Download
ER20-D8.pdf	96.84KB	Download
ER20-D8.STEP	370.14KB	Download
ER20-D10.pdf	96.72KB	Download
ER20-D10.STEP	370.16KB	Download
