24V 101W Round Geared Brushless DC Motor 11.42Nm(1617.20oz.in) 51:1 Round Planetary Gearbox

0 reviews - Write a review

C$102.92

5 + C$99.52

10 + C$96.33

50 + C$93.34

100 + C$90.55

In Stock: Pre-order
Model: 57BYA74-24-01-PG51
Gross Weight: 1.70kg
Certificated: ISO, CE

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

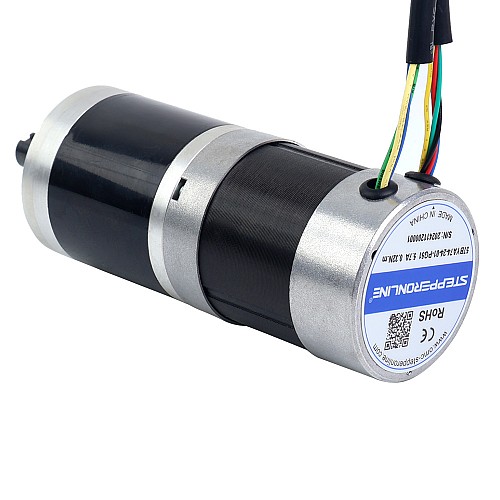

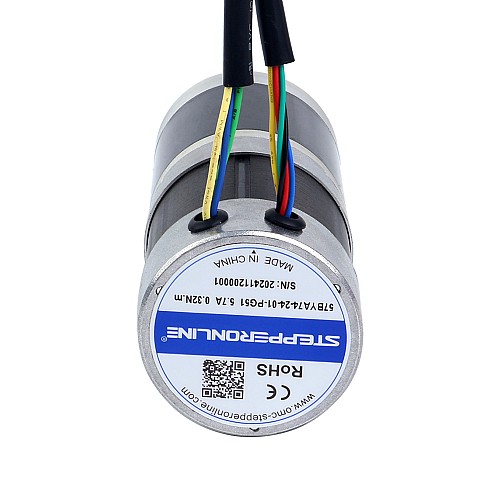

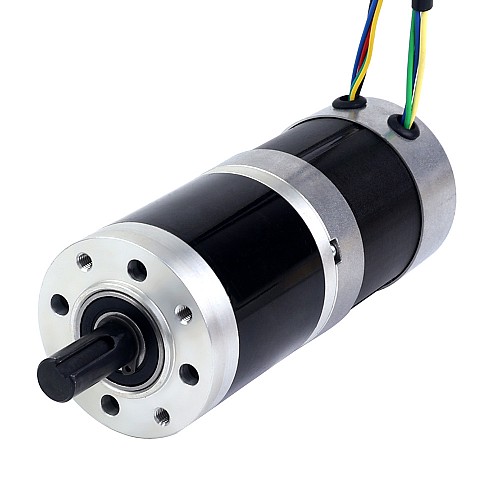

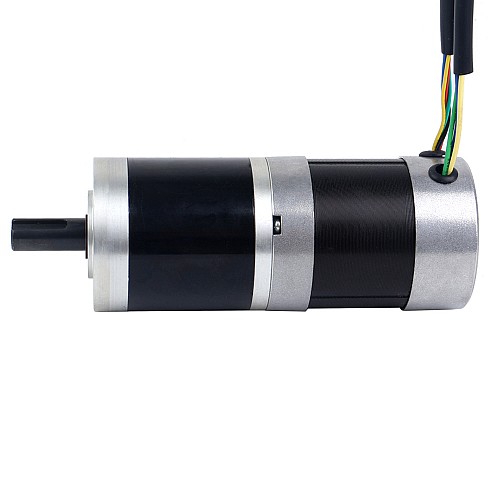

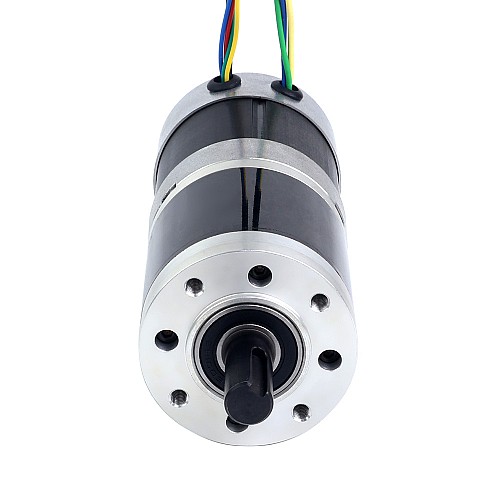

This is a 24V 101W brushless DC motor with a flange of Φ57mm. The built-in 51:1 round planetary gearbox delivers a rated torque of 11.42Nm(1617.20oz.in). The overall cylindrical body is more suitable for installation in specific situations.
It is the perfect solution for motion control applications that require high torque, high precision, maximum efficiency and compact structure, such as medical equipment, robotics and other industrial applications, etc.

Electrical Specification

Manufacturer Part Number: 57BYA74-24-01-PG51
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Torque without Gearbox: 0.32Nm(45.32oz.in)
Rated Torque with Gearbox: 11.42Nm(1617.20oz.in)
Rated Power: 101W
Rated Speed: 59rpm
Speed without Gearbox：3000rpm
Rated Current: 5.70A
Resistance/phase: 0.43±10%Ohms
Inductance/phase: 1.18±20%mH
BACK EMF: 4.8±5%V/krpm
Sensor: HALL
Insulation Class: B 130°C[266°F]

Physical Specification

Gearbox Type: Planetary Gearbox
Gear Ratio: 51:1
Frame Size: Φ57mm
Body Length: 135.5mm
Shaft Diameter: Φ12mm
Shaft Length: 30mm
Shaft Type: Keyway
Number of Leads: 8
Lead Length: 500mm
Weight: 1.57kg

Connection

U	V	W	+5V	GND	A	B	C
Yellow	Green	Blue	Red	Black	Yellow	Green	Blue

Product Type
Product Type	Geared BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	5.70
Rated Power(W)	101
Rated Speed(rpm)	59
Rated Torque(Nm)	0.32
Rated Voltage(V)	24
Physical Specification
Backlash at No-load	<=3 deg
Body Length(mm)	135.5
Frame Size(mm)	57 Round
Gear Ratio(xx:1)	51.06
Gearbox Shape	Round
Gearbox Type	Planetary Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	Keyway
Shaft Diameter(mm)	12
Shaft Length(mm)	30
With Gearbox	Yes
