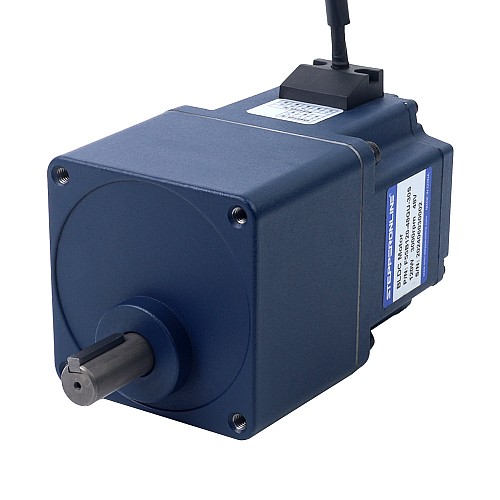

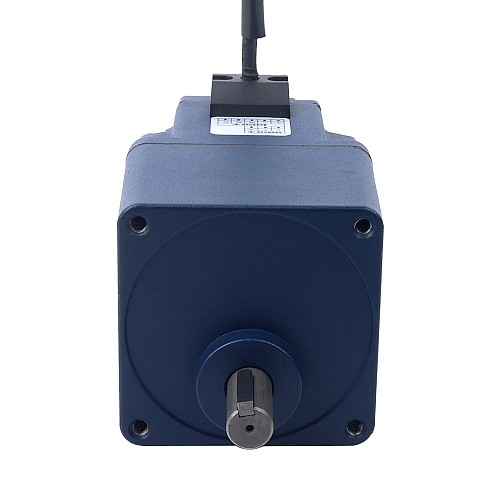

This is a 24V 120W brushless DC gear Motor with a flange of 90x90mm. The built-in 10:1 spur gearbox brings speed and torque to 300rpm and 3.08Nm(436.16oz.in). Due to its compact structure, high efficiency, low noise, long life, strong controllability, brushless DC gear motors are widely used in industrial automation, home appliances, medical equipment, automotive industry and aerospace fields,etc.

The recommended BLDC driver to match this motor is BLD-510B.

Electrical Specifications

P/N: F55B120-24GU-30S/5GU10KB
Phase: 3
Poles: 10
Rated Current: 6.50A
Rated Voltage: 24V
Rated Speed: 300rpm
Rated Torque: 3.08Nm(436.16oz.in)
No-load Current: 0.90A
Rated Power: 120W
Insulation Class: E 120°C[248°F]
Insulation Resistance: 50MΩ Min @500V
Sensor: Hall Sensor
Life: More than 5000 hours

Physical Specifications

Frame Size: 90x90mm
Body Length: 137mm

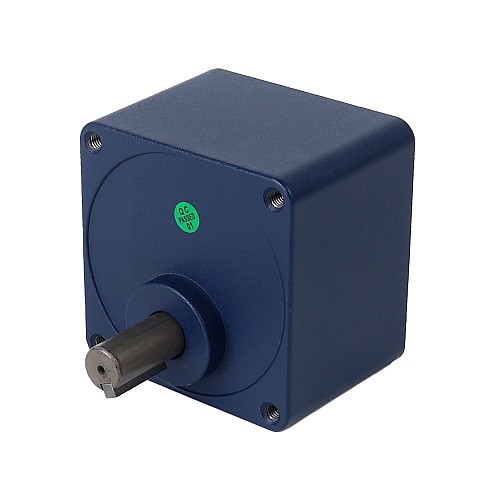

Gearbox Type: Spur Gearbox
Gearbox Ratio: 10:1
Shaft Type: Keyway
Shaft Diameter: Φ15mm
Shaft Length: 38mm
Keyway Length: 25mm
Bearing: Deep Groove Ball
Weight: 3.1kg

Connection

1	2	3	4	5	6	7	8
U	W	Hb	Ha	V	-	Hc	+
Yellow(Thick)	Blue(Thick)	Green	Yellow	Green(Thick)	Black	Blue	Red

Product Type
Product Type	Geared BLDC Motor
Electrical Specification
No-load Current(A)	0.9
No. of Phase	3
Rated Current(A)	6.50
Rated Power(W)	120
Rated Speed(rpm)	300
Rated Torque(Nm)	3.08
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	137
Frame Size(mm)	90 x 90
Gear Ratio(xx:1)	10
Gearbox Type	Square Spur Gearbox
Output Shaft Type	Keyway
Shaft Diameter(mm)	15
Shaft Length(mm)	38
With Gearbox	Yes
