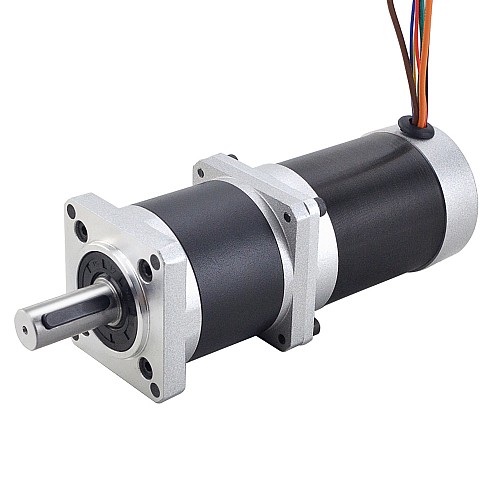

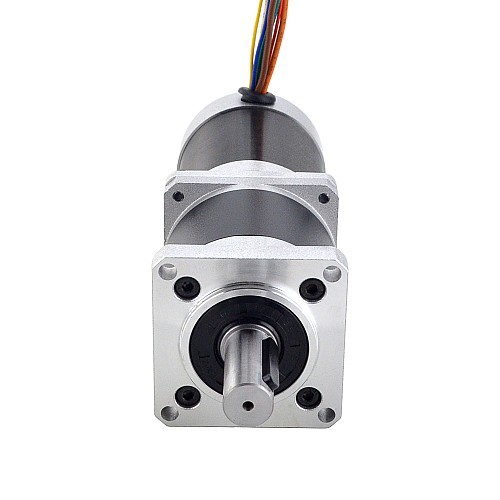

24V 220W 70RPM Geared Brushless DC Motor 20.00Nm(2832.23oz.in) 50:1 High Precision Gearbox

0 reviews - Write a review

C$131.78

5 + C$126.11

10 + C$120.92

50 + C$116.14

100 + C$111.71

In Stock: 10000
Model: 57BLR90-24-01-HG50
Gross Weight: 2.00kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 57BLR90-24-01-HG50
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Speed: 70±10%RPM
Rated Torque: 20.00Nm(2832.23oz.in)
Rated Current: 14.0±10%A
Rated Power: 220W
Insulation Class: B 130°C[266°F]
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

Frame Size: Φ57mm
Body Length: 89.1mm
Gearbox Length: 61.65mm
Shaft Diameter: Φ14mm
Shaft Length: 34mm
Key-way Length: 25mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Weight: 1.72kg

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 50 : 1
Efficiency: 75%
Backlash at No-load: <=1.6deg
Max. Permissible Torque: 20Nm(2832.8oz.in)
Moment Permissible Torque: 40Nm(5665.6oz.in)
Max. Radial Load: 250N
Insulation Class: B
Noise: <=50dB
Ambient Temperature: 0 - 50℃

Connection

U	V	W	+5V	GND	A	B	C
Orange	Green	Brown	Red	Black	Yellow	White	Blue

Product Type
Product Type	Geared BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	14.00
Rated Power(W)	220
Rated Speed(rpm)	70
Rated Torque(Nm)	20.00
Rated Voltage(V)	24
Physical Specification
Backlash at No-load	<=1.6 deg
Body Length(mm)	89.1
Frame Size(mm)	Nema 23 (57 x 57)
Gear Ratio(xx:1)	50
Gearbox Type	Planetary Gearbox
Inventory Method	Dedicated Inventory
IP Rating	20
Output Shaft Type	Keyway
Shaft Diameter(mm)	14
Shaft Length(mm)	34
With Gearbox	Yes
