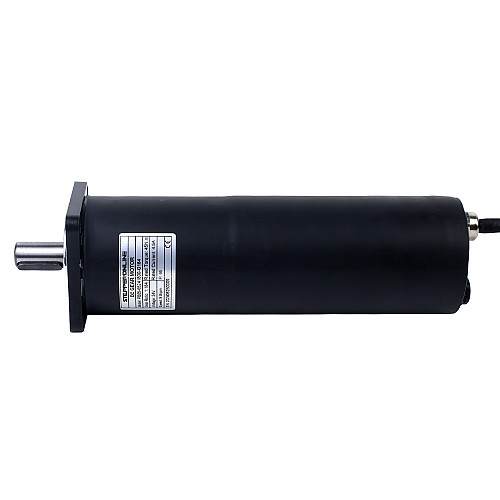

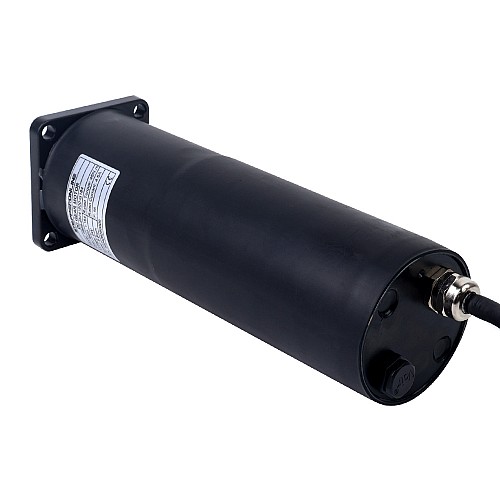

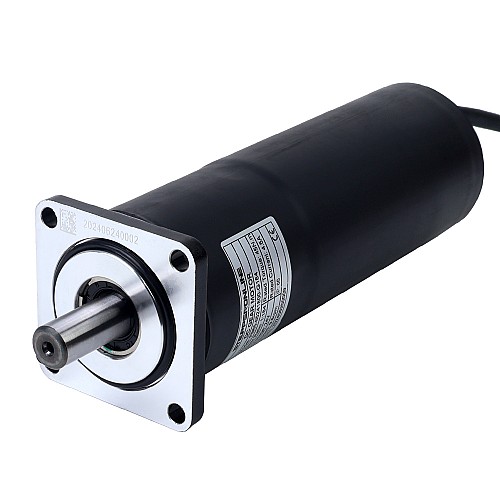

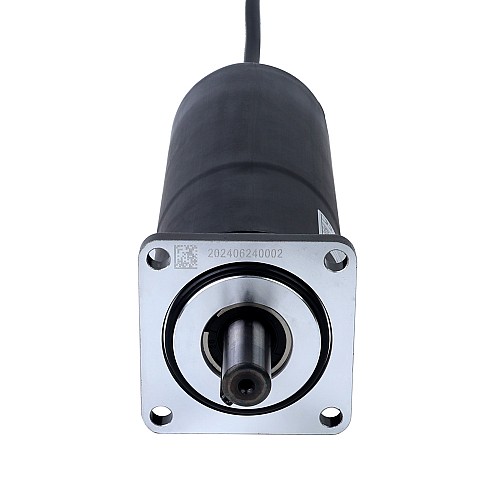

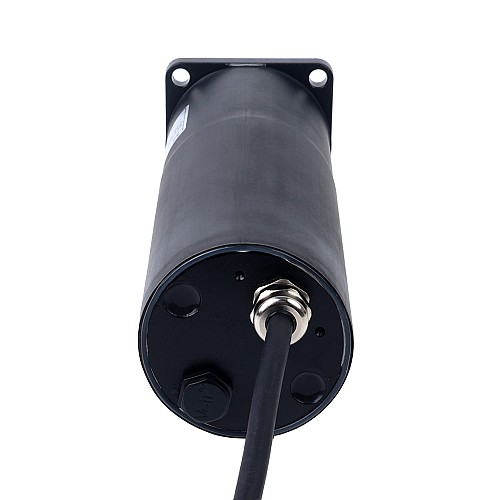

Brushed 24V DC Gear Motor 45Nm(6372.52oz.in) 9.8RPM w/ 184:1 Planetary Gearbox IP66 155°C[311°F]

0 reviews - Write a review

C$130.33

5 + C$124.94

10 + C$120.00

50 + C$115.43

100 + C$111.19

In Stock: 10000
Model: PB65-65241800-G184
Gross Weight: 3.22kg
Certificated: ISO

Available Options

Ships from

China

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a 24V gear motor that generates a rated torque of 45Nm(6372.52oz.in) at speed of 9.8rpm. Coming with a 184:1 planetary Gearbox this motor is characterized in higher efficiency, higher torque, quieter motor operation, excellent sealing, high level waterproof of IP66 and insulation class of F 155°C[311°F].
It is widely used for applications that require high precision, low speed and high torque, such as photovoltaic module, precision instruments, consumer electronics and household appliances, etc.

Electrical Specification

Part Number: PB65-65241800-G184
Motor Type: Brushed DC Motor
Rated Voltage: 24V
Rated Current: ≤4.5A
Peak Current: ≤6.5A
Rated Power: 66W
Rated Speed Without Gearbox: 1800±10%RPM
Rated Torque Without Gearbox: 0.35Nm(49.56oz.in)
Peak Torque Without Gearbox: 0.52Nm(73.64oz.in)
Rated Speed with Gearbox: 9.8±10%RPM
Rated Torque with Gearbox: 45Nm(6372.52oz.in)
Maximum Permissible Torque: 65Nm(9204.76oz.in)
Insulation Class: F 155°C[311°F]
IP Rating: IP66

Physical Specification

Gearbox Type: Planetary
Gear Ratio: 184:1
Motor Size: Φ65 x 215mm
Flang Size: 68 x 68mm
Shaft Diameter: Φ15mm
Shaft Length: 32mm
Shaft Type: Keyway
Keyway Length: 25mm

Electrical Specification
Rated Current(A)	4.5
Rated Power(W)	66
Rated Speed(rpm)	9.8
Rated Torque(kg.cm)	458.87
Rated Torque(Nm)	45
Rated Torque(oz.in)	6372.52
Rated Voltage(V)	24
Physical Specification
Gear Ratio(xx:1)	184
Gearbox Shape	Round
Gearbox Type	Planetary Gearbox
IP Rating	IP66
Output Shaft Type	Keyway
Shaft Diameter(mm)	15
Shaft Length(mm)	32
