24V 120W 600RPM Geared Brushless DC Motor 1.55Nm(219.50oz.in) 5:1 Spur Gearbox
This is a 24V 120W brushless DC gear Motor with a flange of 90x90mm. The built-in 5:1 spur gearbox b... Read More
0 reviews • Write a review
from
C$67.95
5 + C$66.02
10 + C$64.19
50 + C$62.47
100 + C$60.84

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

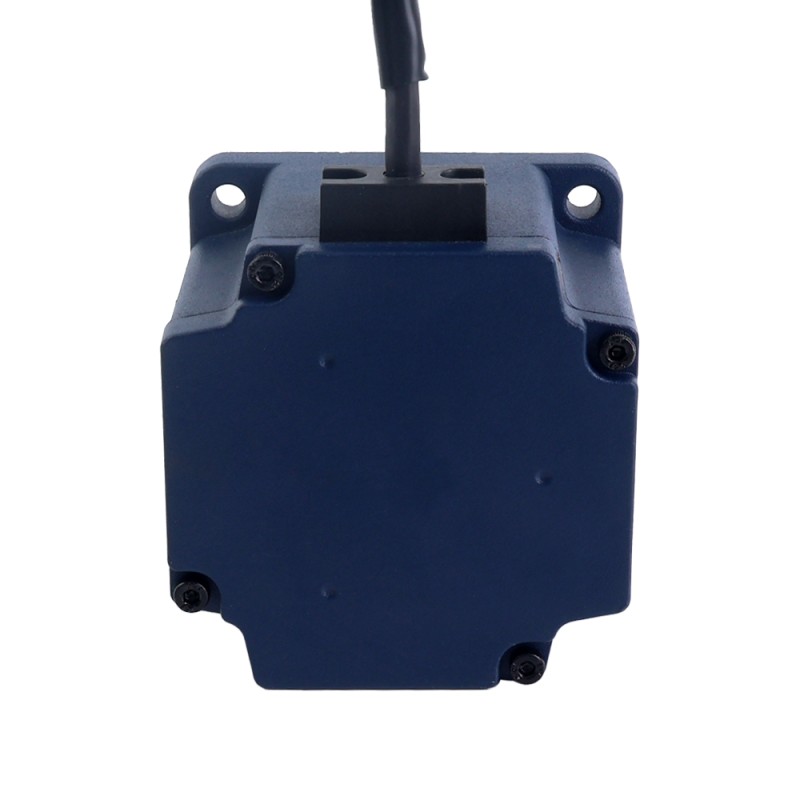

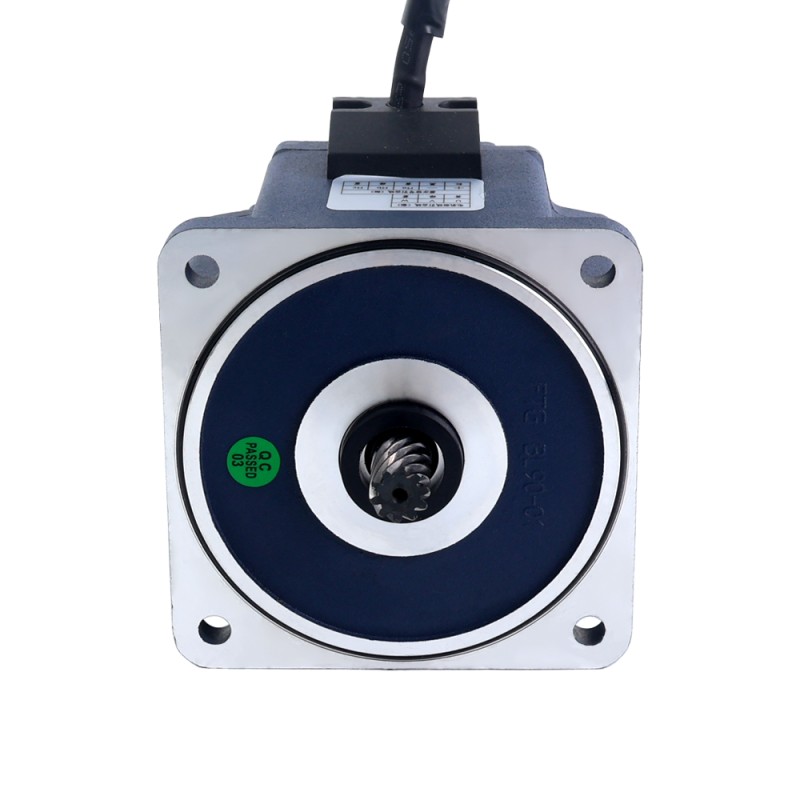

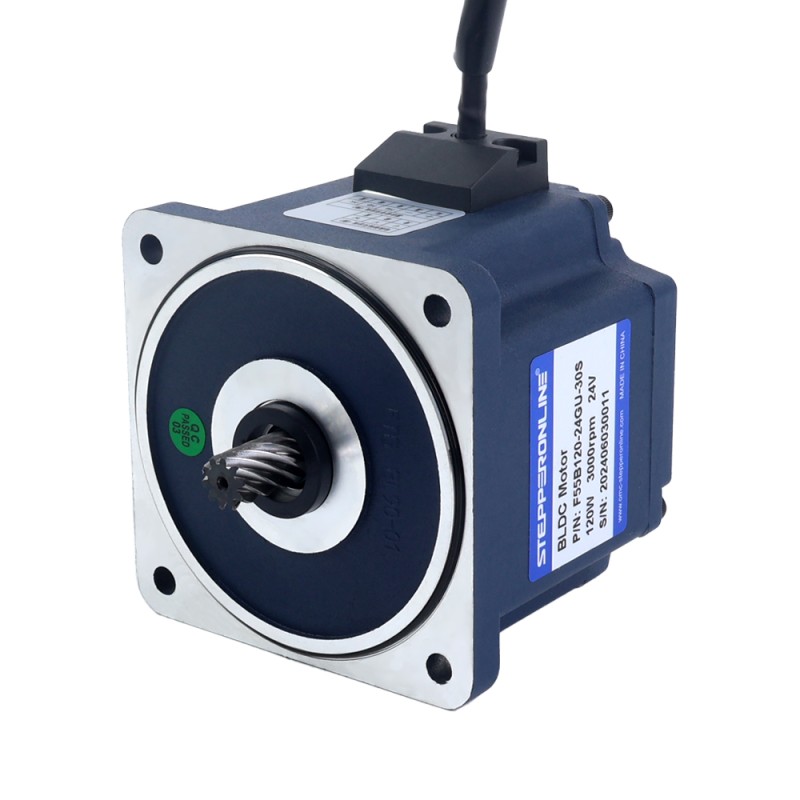

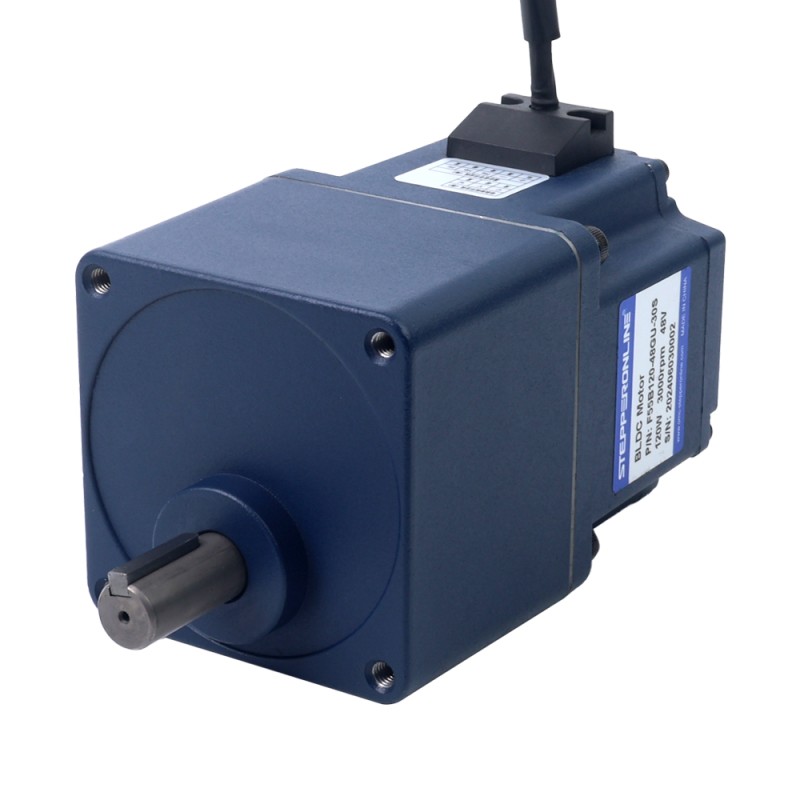

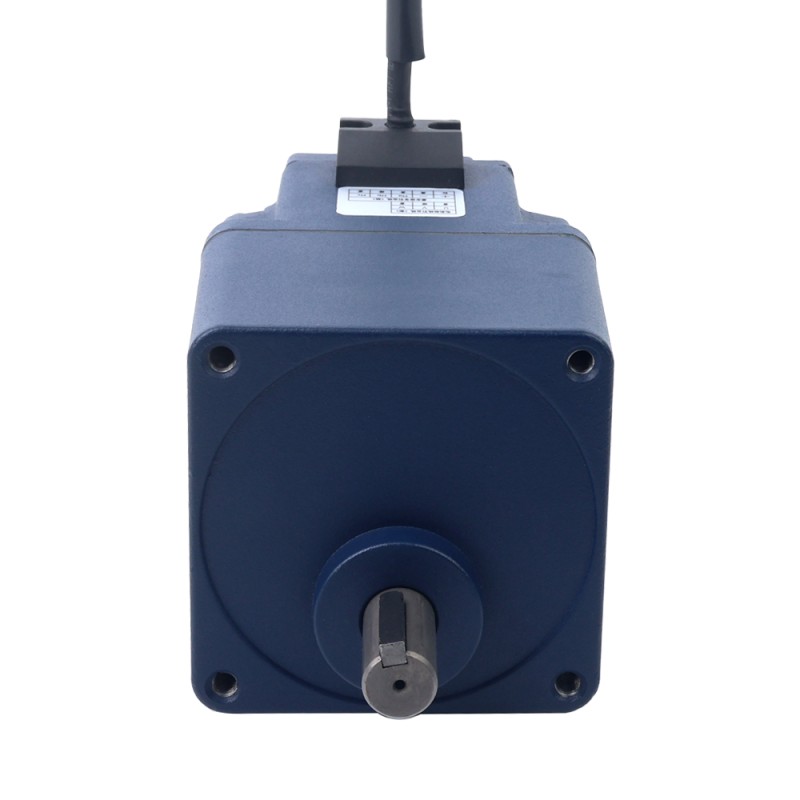

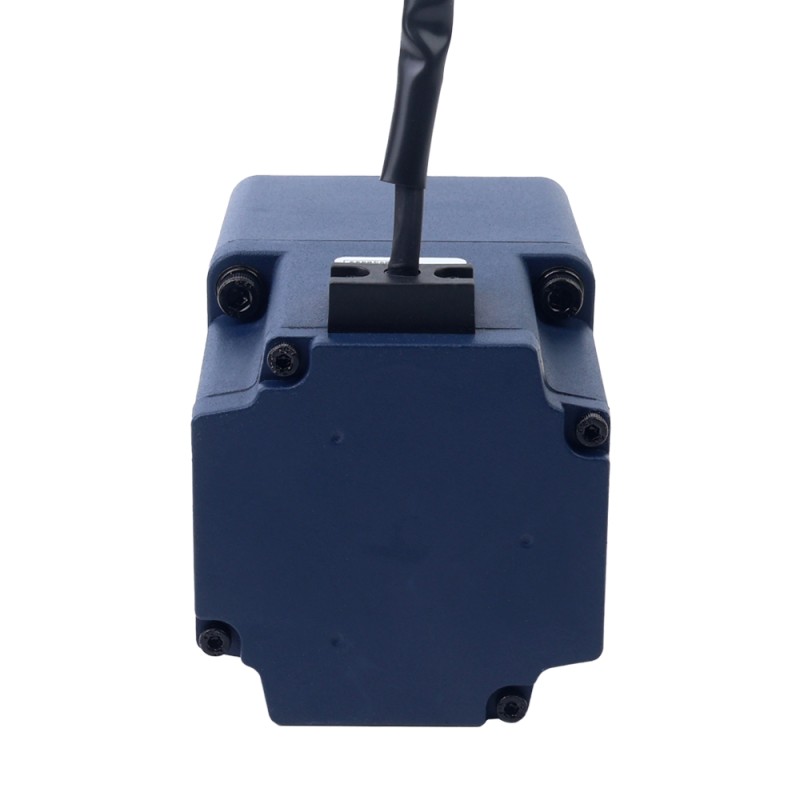

This is a 24V 120W brushless DC gear Motor with a flange of 90x90mm. The built-in 5:1 spur gearbox brings speed and torque to 600rpm and 1.55Nm(219.50oz.in). Due to its compact structure, high efficiency, low noise, long life, strong controllability, brushless DC gear motors are widely used in industrial automation, home appliances, medical equipment, automotive industry and aerospace fields,etc.

The recommended BLDC driver to match this motor is BLD-510B.

Electrical Specifications

  • P/N: F55B120-24GU-30S/5GU5KB
  • Phase: 3
  • Poles: 10
  • Rated Current: 6.50A
  • Rated Voltage: 24V
  • Rated Speed: 600rpm
  • Rated Torque: 1.55Nm(219.50oz.in)
  • No-load Current: 0.90A
  • Rated Power: 120W
  • Insulation Class: E 120°C[248°F]
  • Insulation Resistance: 50MΩ Min @500V
  • Sensor: Hall Sensor
  • Life: More than 5000 hours

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 137mm
  • Gearbox Type: Spur Gearbox
  • Gearbox Ratio: 5:1
  • Shaft Type: Keyway
  • Shaft Diameter: Φ15mm
  • Shaft Length: 38mm
  • Keyway Length: 25mm
  • Bearing: Deep Groove Ball
  • Weight: 3.1kg

Connection

1
2
3
4
5
6
7
8
U
W
Hb
Ha
V
-
Hc
+
Yellow(Thick)
Blue(Thick)
Green
Yellow
Green(Thick)
Black
Blue
Red
Product Type
Product Type Geared BLDC Motor
Electrical Specification
No-load Current(A) 0.9
No. of Phase 3
Rated Current(A) 6.50
Rated Power(W) 120
Rated Speed(rpm) 600
Rated Torque(Nm) 1.55
Rated Voltage(V) 24
Physical Specification
Body Length(mm) 137
Frame Size(mm) 90 x 90
Gear Ratio(xx:1) 5
Gearbox Type Square Spur Gearbox
Output Shaft Type Keyway
Shaft Diameter(mm) 15
Shaft Length(mm) 38
With Gearbox Yes
