F55B150-24GU-30S/5GU5KB
Output Shaft TypeKeyway
Rated Voltage(V)24
Rated Current(A)8.00
Frame Size(mm)90 x 90
Question

Downloads

F55B150-24GU-30S_5GU5KB_Full_Datasheet.pdfPDF · 62.61KBF55B150-24GU-30S_5GU5KB.STEPSTEP · 1.63MBLog in to download
Same series
ModelOutput Shaft TypeRated Voltage(V)Rated Current(A)Frame Size(mm)PriceStock
57BLR50-24-01-HG10Keyway245.00Nema 23 (57 x 57)C$0.00In stock
57BLR70-24-02-HG100Keyway2410.40Nema 23 (57 x 57)C$94.91In stock
57BLR90-24-01-HG100Keyway2414.00Nema 23 (57 x 57)C$101.69In stock
57BYA74-24-01-PG100Keyway245.70⌀57C$100.83In stock
57BYA74-24-01-PG27Keyway245.70⌀57C$93.63In stock
F2B15-24GN-30S/2GN100KD241.1060 x 60C$40.82In stock
F2B15-24GN-30S/2GN10KD241.1060 x 60C$36.90In stock
F2B15-24GN-30S/2GN15KD241.1060 x 60C$36.90In stock
F2B15-24GN-30S/2GN200KD241.1060 x 60C$40.82In stock
F2B15-24GN-30S/2GN20KD241.1060 x 60C$38.86In stock
F2B15-24GN-30S/2GN30KD241.1060 x 60C$38.86In stock
F2B15-24GN-30S/2GN3KD241.1060 x 60C$36.90In stock
F2B15-24GN-30S/2GN3K-SALED241.1060 x 60C$36.57In stock
F2B15-24GN-30S/2GN50KD241.1060 x 60C$38.86In stock
F2B15-24GN-30S/2GN50K-SALED241.1060 x 60C$38.51In stock
F2B15-24GN-30S/2GN5KD241.1060 x 60C$36.90In stock
F2B15-48GN-30S/2GN100KD480.6060 x 60C$40.82In stock
F2B15-48GN-30S/2GN10KD480.6060 x 60C$36.90In stock
F2B15-48GN-30S/2GN15KD480.6060 x 60C$36.90In stock
F2B15-48GN-30S/2GN200KD480.6060 x 60C$40.82In stock
F2B15-48GN-30S/2GN20KD480.6060 x 60C$38.86In stock
F2B15-48GN-30S/2GN30KD480.6060 x 60C$38.86In stock
F2B15-48GN-30S/2GN3KD480.6060 x 60C$36.90In stock
F2B15-48GN-30S/2GN50KD480.6060 x 60C$38.86In stock
F2B15-48GN-30S/2GN5KD480.6060 x 60C$36.90In stock
F2B40-24GL-30S/2GL150RCHollow242.5060 x 60C$60.39In stock
F2B40-24GL-30S/2GL30RCHollow242.5060 x 60C$60.39In stock
F3B40-24GN-30S/3GN100KKeyway242.5070 x 70C$48.92In stock
F3B40-24GN-30S/3GN10KKeyway242.5070 x 70C$44.46In stock
F3B40-24GN-30S/3GN15KKeyway242.5070 x 70C$44.46In stock
View all in category
24V 150W 600RPM Geared Brushless DC Motor 1.95Nm(276.14oz.in) 5:1 Spur Gearbox
This is a 24V 150W brushless DC gear Motor with a flange of 90x90mm. The built-in 5:1 spur gearbox b... Read More
0 reviews • Write a review
from
C$68.77
5 + C$66.83
10 + C$64.99
50 + C$63.23
100 + C$61.58

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a 24V 150W brushless DC gear Motor with a flange of 90x90mm. The built-in 5:1 spur gearbox brings speed and torque to 600rpm and 1.95Nm(276.14oz.in). Due to its compact structure, high efficiency, low noise, long life, strong controllability, brushless DC gear motors are widely used in industrial automation, home appliances, medical equipment, automotive industry and aerospace fields,etc.

The recommended BLDC driver to match this motor is BLD-510B.

Electrical Specifications

  • P/N: F55B150-24GU-30S/5GU5KB
  • Phase: 3
  • Poles: 10
  • Rated Current: 8.00A
  • Rated Voltage: 24V
  • Rated Speed: 600rpm
  • Rated Torque: 1.95Nm(276.14oz.in)
  • No-load Current: 1.00A
  • Rated Power: 150W
  • Insulation Class: E 120°C[248°F]
  • Insulation Resistance: 50MΩ Min @500V
  • Sensor: Hall Sensor
  • Life: More than 5000 hours

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 137mm
  • Gearbox Type: Spur Gearbox
  • Gearbox Ratio: 5:1
  • Shaft Type: Keyway
  • Shaft Diameter: Φ15mm
  • Shaft Length: 38mm
  • Keyway Length: 25mm
  • Bearing: Deep Groove Ball
  • Weight: 3.1kg

Connection

1
2
3
4
5
6
7
8
U
W
Hb
Ha
V
-
Hc
+
Yellow(Thick)
Blue(Thick)
Green
Yellow
Green(Thick)
Black
Blue
Red
Product Type
Product Type Geared BLDC Motor
Electrical Specification
No-load Current(A) 1.0
No. of Phase 3
Rated Current(A) 8.00
Rated Power(W) 150
Rated Speed(rpm) 600
Rated Torque(Nm) 1.95
Rated Voltage(V) 24
Physical Specification
Body Length(mm) 137
Frame Size(mm) 90 x 90
Gear Ratio(xx:1) 5
Gearbox Type Square Spur Gearbox
Output Shaft Type Keyway
Shaft Diameter(mm) 15
Shaft Length(mm) 38
With Gearbox Yes

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Captcha
Quickview
24V 150W 300RPM Geared Brushless DC Motor 3.87Nm(548.04oz.in) 10:1 Spur Gearbox
24V 150W 300RPM Geared Brushless DC Motor 3.87Nm(548.04oz.in) 10:1 Spur Gearbox
This is a 24V 150W brushless DC gear Motor with a flange of 90x90mm. The built-in 10:1 spur gearbox brings speed and torque to 300rpm and 3.87Nm(548.0..
from
C$72.98
Add to Cart
Add to Wish List Compare this Product
Quickview

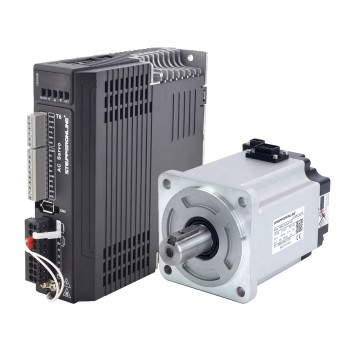

T6 Series 1000W AC Servo Motor Kit 3000rpm 3.18Nm 23-Bit Encoder IP67
Pre-order
T6 Series 1000W AC Servo Motor Kit 3000rpm 3.18Nm 23-Bit Encoder IP67
T6 Series 1000W 3000rpm 3.18Nm 23-bit AC servo products are cost-effective AC digital servo which is designed for position high accurate control,..
from
C$418.77
Add to Cart
Add to Wish List Compare this Product
Quickview
MRVR063 Worm Drive Gearbox 50:1 Ratio Φ19mm Input Shaft with 80B14 Motor Input Flange
MRVR063 Worm Drive Gearbox 50:1 Ratio Φ19mm Input Shaft with 80B14 Motor Input Flange
This MRVR063 series worm gearbox, with a gear ratio of 50 and an input shaft diameter of 19mm, is suitable for all standard IEC motors with frame 80B1..
from
C$0.00
Add to Cart
Add to Wish List Compare this Product
Quickview
MRVR075 Worm Drive Gearbox 40:1 Ratio Φ24mm Input Shaft with 90B14 Motor Input Flange
MRVR075 Worm Drive Gearbox 40:1 Ratio Φ24mm Input Shaft with 90B14 Motor Input Flange
This MRVR075 series worm gearbox, with a gear ratio of 40 and an input shaft diameter of 24mm, is suitable for all standard IEC motors with frame 90B1..
from
C$0.00
Add to Cart
Add to Wish List Compare this Product
Quickview

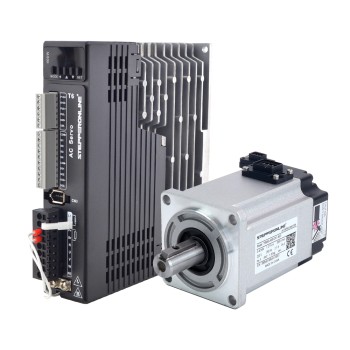

T6 Series 400W AC Servo Motor Kit 3000rpm 1.27Nm 23-Bit Encoder IP67
