24V 200W 30RPM Geared Brushless DC Motor 40.00Nm(5664.48oz.in) 100:1 Spur Gearbox

0 reviews - Write a review

C$176.98

5 + C$169.68

10 + C$162.96

50 + C$156.76

100 + C$151.00

In Stock: 10000
Model: F6B200-24GU-30S/6GU100K
Gross Weight: 5.17kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

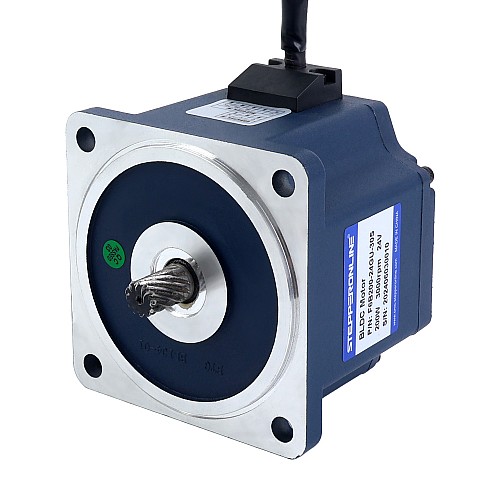

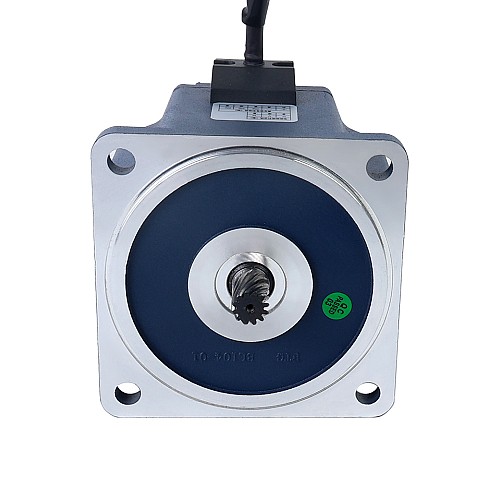

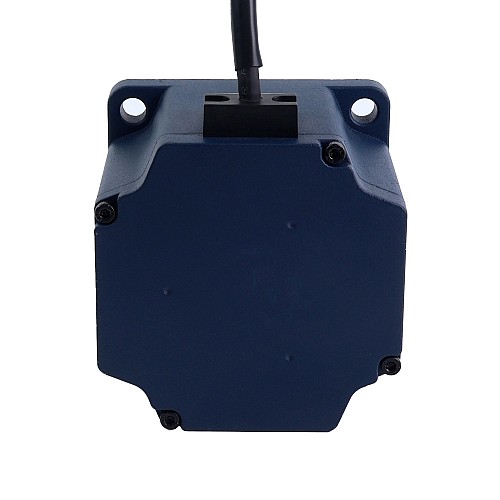

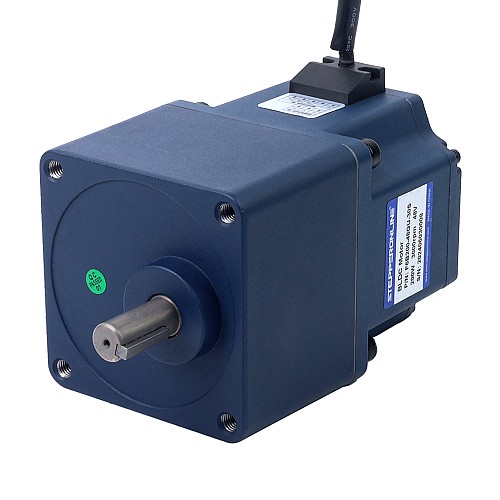

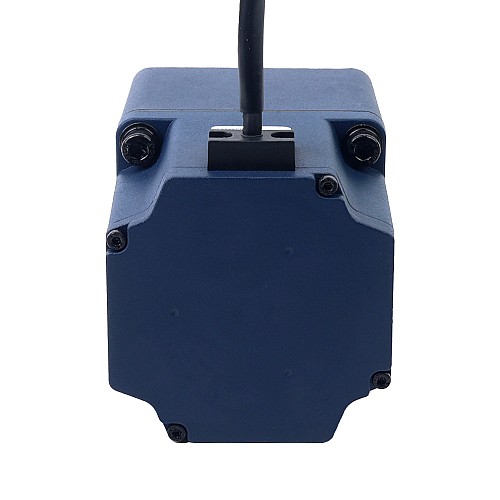

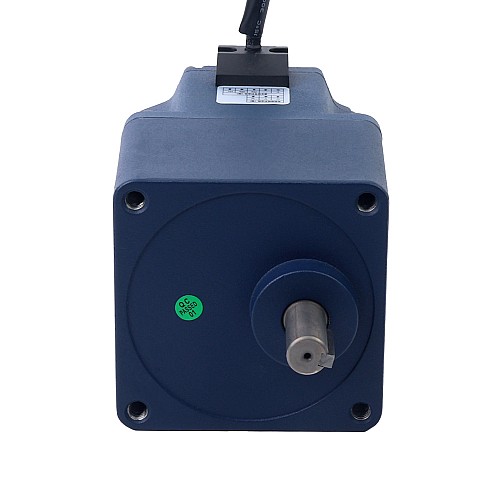

This is a 24V 200W brushless DC gear Motor with a flange of 104x104mm. The built-in 100:1 spur gearbox brings speed and torque to 30rpm and 40.00Nm(5664.48oz.in). Due to its compact structure, high efficiency, low noise, long life, strong controllability, brushless DC gear motors are widely used in industrial automation, home appliances, medical equipment, automotive industry and aerospace fields,etc.

The recommended BLDC driver to match this motor is BLD-515C.

Electrical Specifications

P/N: F6B200-24GU-30S/6GU100K
Phase: 3
Poles: 10
Rated Current: 11.00A
Rated Voltage: 24V
Rated Speed: 30rpm
Rated Torque: 40.00Nm(5664.48oz.in)
No-load Current: 2.00A
Rated Power: 200W
Insulation Class: E 120°C[248°F]
Insulation Resistance: 50MΩ Min @500V
Sensor: Hall Sensor
Life: More than 5000 hours

Physical Specifications

Frame Size: 104x104mm
Body Length: 152mm

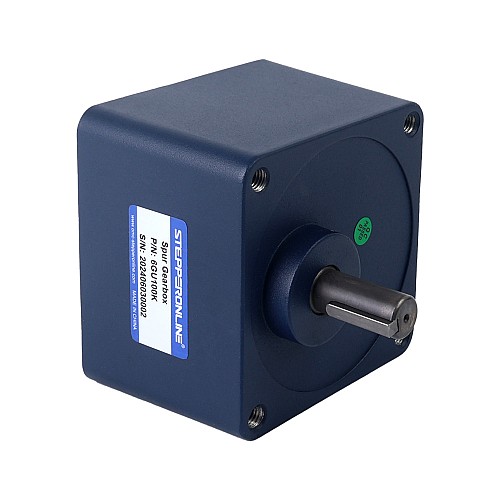

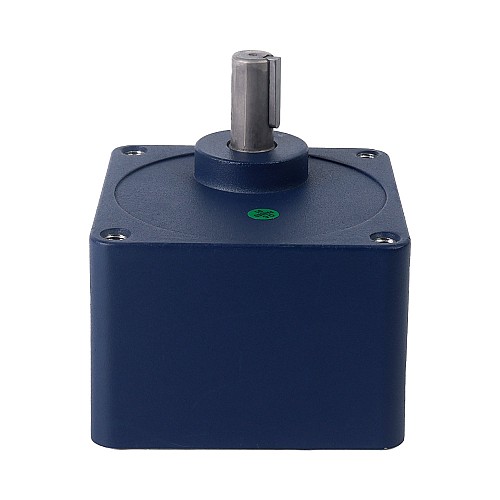

Gearbox Type: Spur Gearbox
Gearbox Ratio: 100:1
Shaft Type: Keyway
Shaft Diameter: Φ15mm
Shaft Length: 42mm
Keyway Length: 25mm
Bearing: Deep Groove Ball
Weight: 4.77kg

Connection

1	2	3	4	5	6	7	8
U	W	Hb	Ha	V	-	Hc	+
Yellow(Thick)	Blue(Thick)	Green	Yellow	Green(Thick)	Black	Blue	Red

Product Type
Product Type	Geared BLDC Motor
Electrical Specification
No-load Current(A)	2.0
No. of Phase	3
Rated Current(A)	11.00
Rated Power(W)	200
Rated Speed(rpm)	30
Rated Torque(Nm)	40.00
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	152
Frame Size(mm)	104 x 104
Gear Ratio(xx:1)	100
Gearbox Type	Square Spur Gearbox
Output Shaft Type	Keyway
Shaft Diameter(mm)	15
Shaft Length(mm)	42
With Gearbox	Yes
