Nema 34 Stepper Motor L=76mm Gear Ratio 50:1 Spur Gearbox

0 reviews - Write a review

C$170.53

5 + C$161.68

10 + C$153.69

50 + C$146.45

100 + C$139.88

In Stock: Pre-order
Model: 34HS30-5604S-SG50
Gross Weight: 3.94kg
Certificated: ISO, CE, UKCA, RoHS

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 5

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

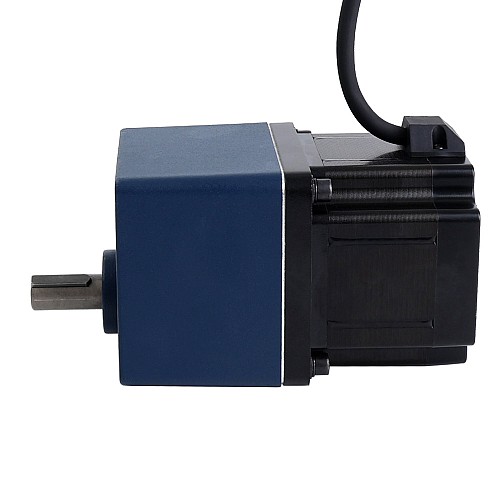

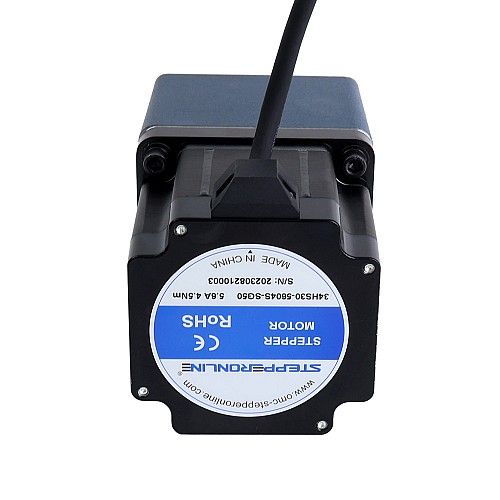

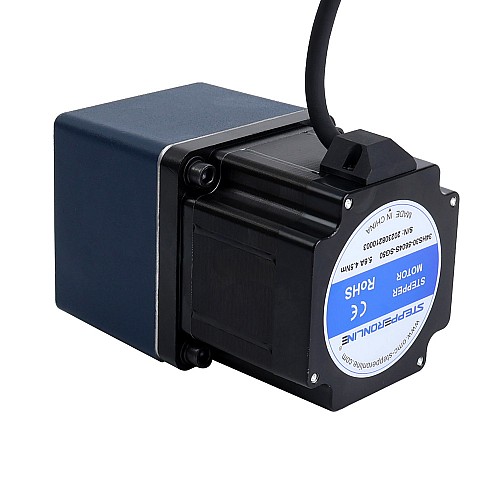

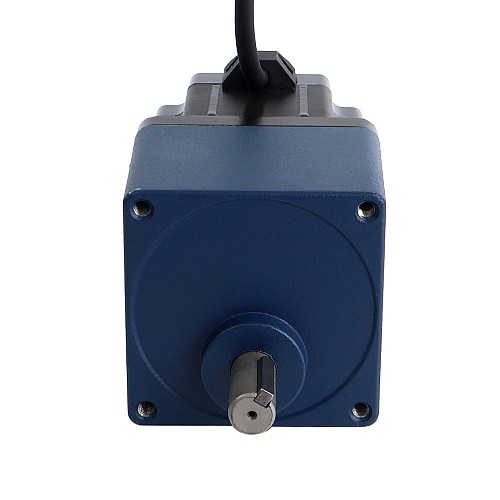

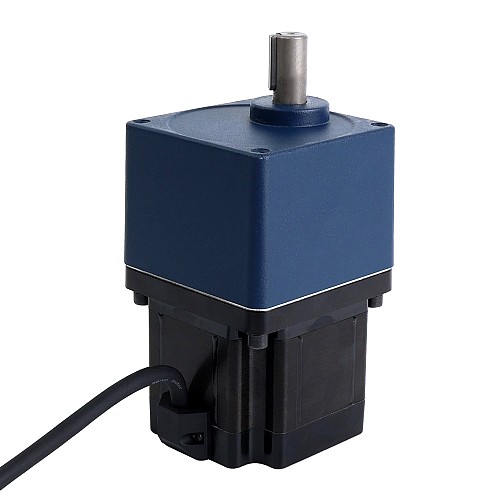

This Nema 34 stepper motor is equipped with a spur gearbox. The gear ratio is 50:1 and the max. return difference is 3deg. It's a good solution to applications that require reliability, compact design and high torque but low cost.

Electrical Specification

Manufacturer Part Number: 34HS30-5604S-SG50
Motor Type: Bipolar Stepper
Step Angle without Gearbox: 1.8deg
Holding Torque without Gearbox: 4.5Nm(637.25oz.in)
Rated Current/phase: 5.6A
Phase Resistance: 0.35ohms±10%
Inductance: 2.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur
Gear Ratio: 50:1
Efficiency: 73%
Return Difference: <=3deg
Max.Permissible Torque: 10Nm(1416.12oz.in)
Moment.Permissible Torque: 20Nm(2832.24oz.in)
Max. Input Speed: 1350rpm
Max. Output Speed: 50rpm

Physical Specifications

Frame Size: 90 x 90mm
Motor Length: 76mm
Gearbox Length: 65.5mm
Shaft Diameter: Φ15mm
Shaft Length: 38mm
Keyway length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 3.656kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	5.6
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	4.5
Inductance(mH)	2.8
Phase Resistance(ohms)	0.35
Physical Specification
Backlash at No-load	<=3 deg
Body Length(mm)	141.5
Frame Size(mm)	Nema 34 (86 x 86)
Gear Ratio(xx:1)	50
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	15
Shaft Length(mm)	38
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	3656
