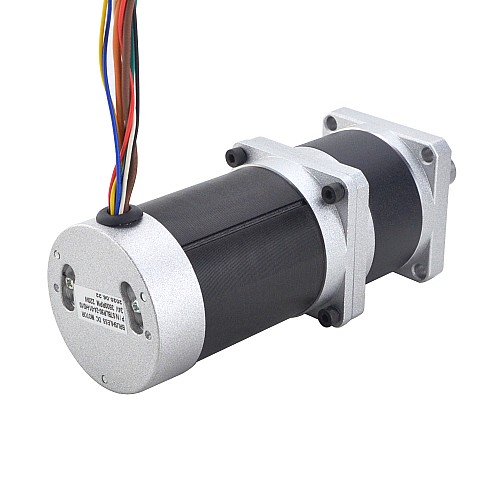

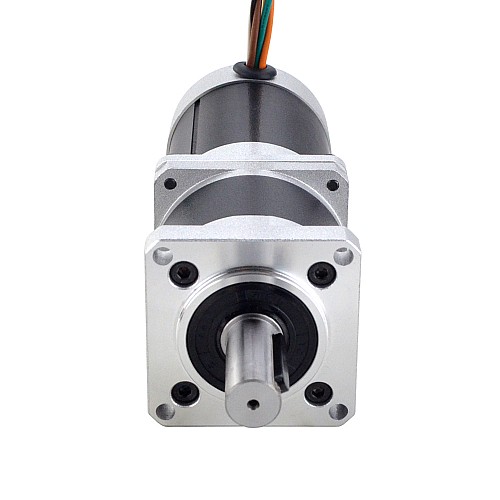

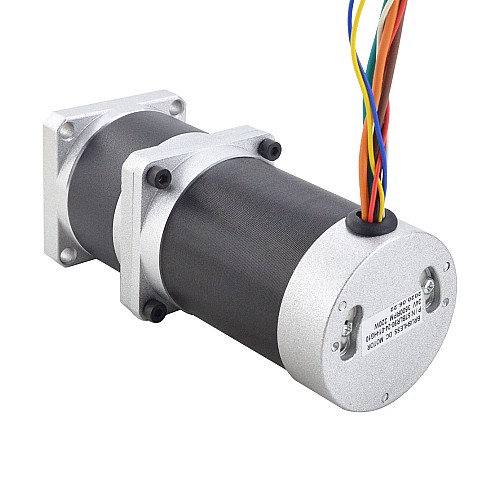

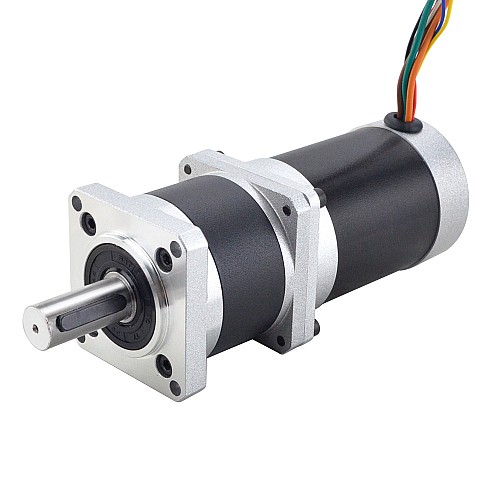

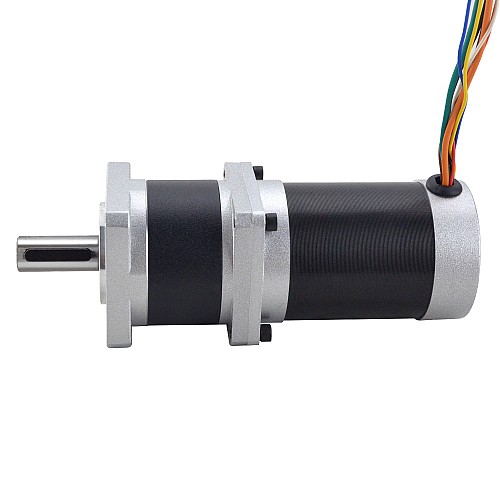

Name: 57BLR90-24-01-HG10 | 24V 220W 350RPM Geared Brushless DC Motor 5.10Nm(722.22oz.in) 10:1 High Precision Gearbox | StepperOnline CA
SKU: 57BLR90-24-01-HG10
Availability: InStock

24V 220W 350RPM Geared Brushless DC Motor 5.10Nm(722.22oz.in) 10:1 High Precision Gearbox

Discontinued

24V 220W 350RPM Geared Brushless DC Motor 5.10Nm(722.22oz.in) 10:1 High Precision Gearbox

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 57BLR90-24-01-HG10
Gross Weight: 1.82kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Electrical Specification

Manufacturer Part Number: 57BLR90-24-01-HG10
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Speed: 350±10%RPM
Rated Torque: 5.10Nm(722.22oz.in)
Rated Current: 14.0±10%A
Rated Power: 220W
Insulation Class: B 130°C[266°F]
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

Frame Size: Φ57mm
Body Length: 89.1mm
Gearbox Length: 54mm
Shaft Diameter: Φ14mm
Shaft Length: 34mm
Key-way Length: 25mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Weight: 1.61kg

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 10 : 1
Efficiency: 85%
Backlash at No-load: <=0.8 deg
Max. Permissible Torque: 6Nm(849.7oz.in)
Moment Permissible Torque: 12Nm(1699.68oz.in)
Max. Radial Load: 250N
Insulation Class: B
Noise: <=50 dB
Ambient Temperature: 0 - 50℃

Connection

U	V	W	+5V	GND	A	B	C
Orange	Green	Brown	Red	Black	Yellow	White	Blue

Product Type
Product Type	Geared BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	14.00
Rated Power(W)	220
Rated Speed(rpm)	350
Rated Torque(Nm)	5.10
Rated Voltage(V)	24
Physical Specification
Backlash at No-load	<=0.8 deg
Body Length(mm)	89.1
Frame Size(mm)	Nema 23 (57 x 57)
Gear Ratio(xx:1)	10
Gearbox Type	Planetary Gearbox
Inventory Method	Dedicated Inventory
IP Rating	20
Output Shaft Type	Keyway
Shaft Diameter(mm)	14
Shaft Length(mm)	34
With Gearbox	Yes
