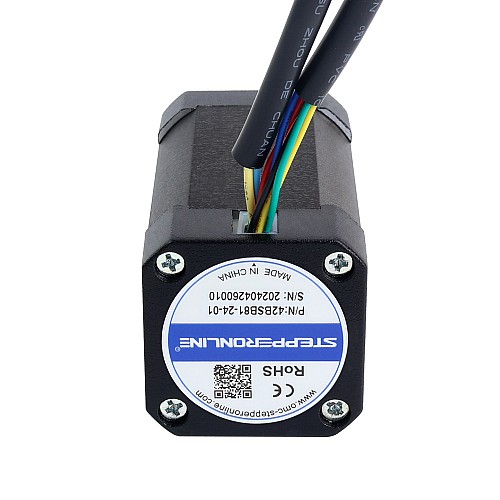

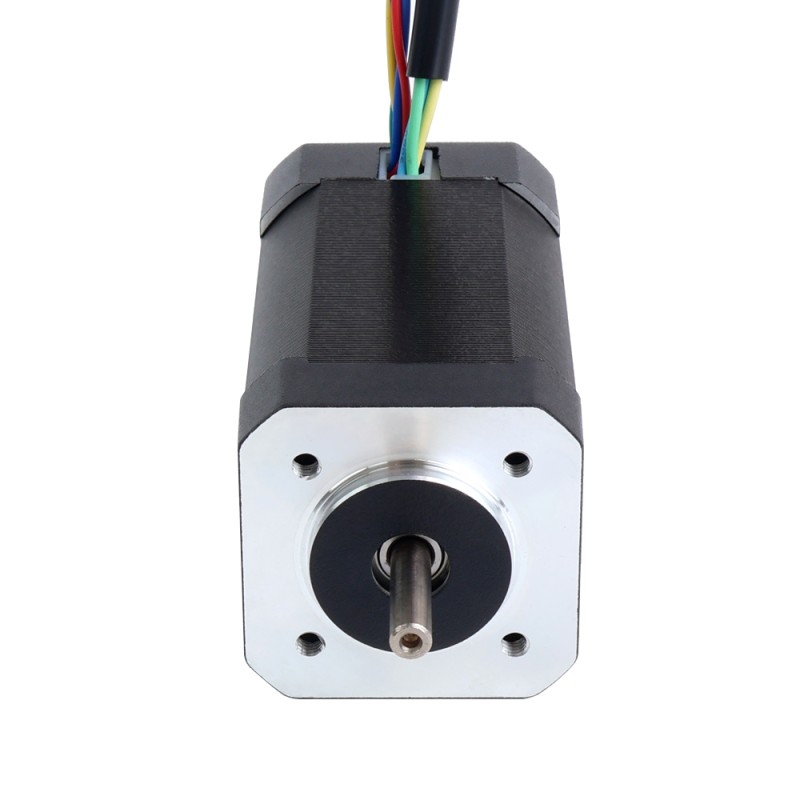

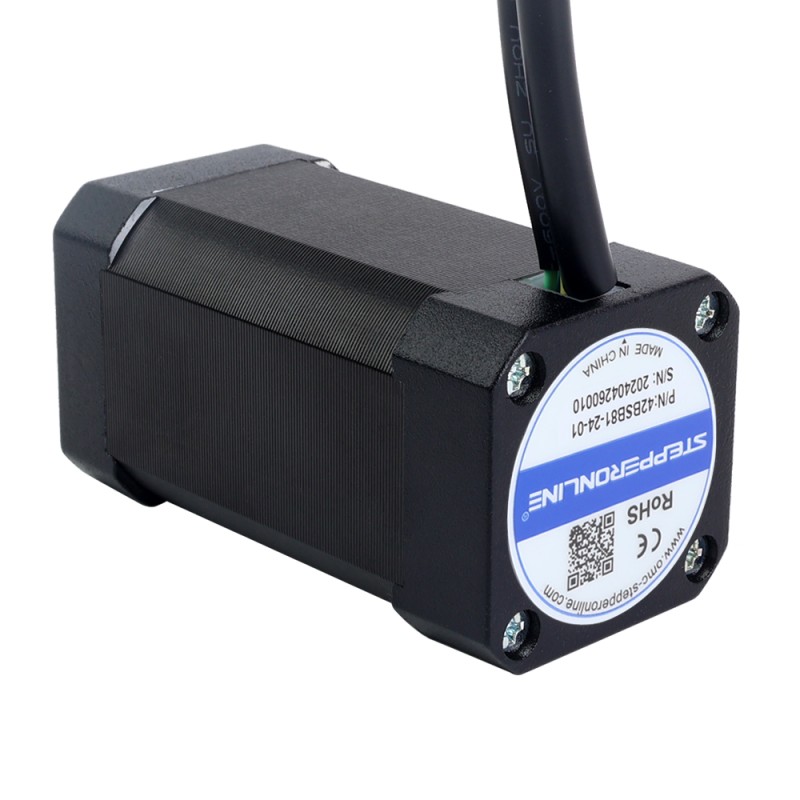

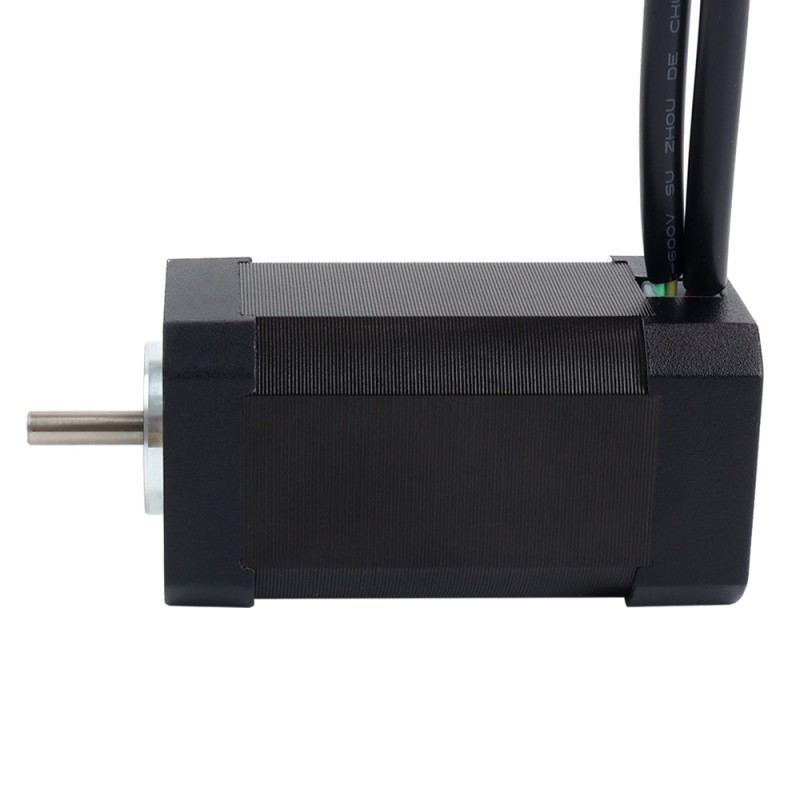

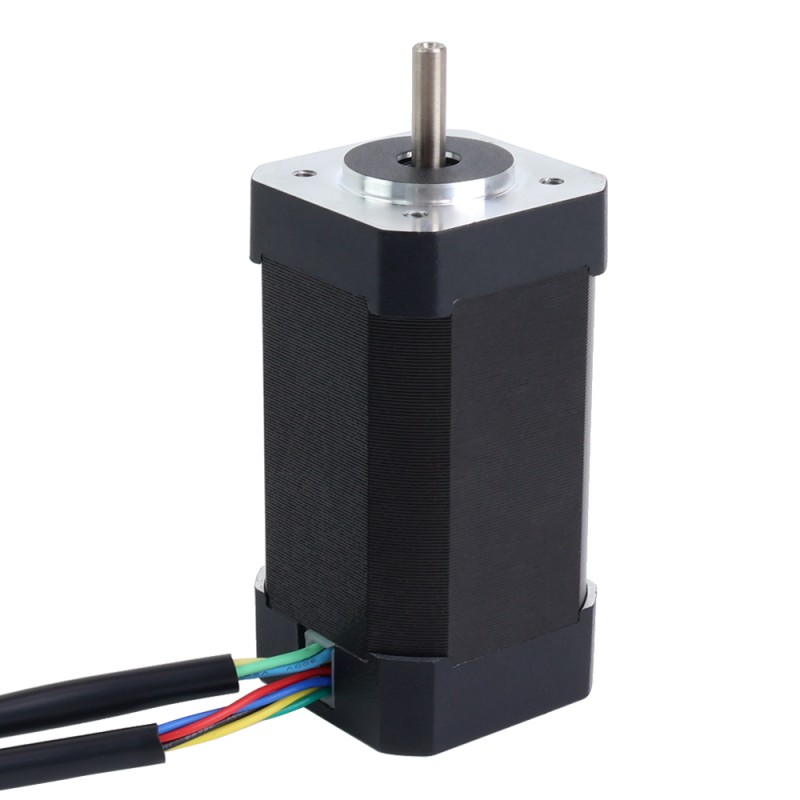

Name: 24V 3000RPM 0.19Nm 60W 3.60A 42x42x81mm Brushless DC Motor
Brand: STEPPERONLINE
SKU: 42BSB81-24-01
Price: 28.80 CAD
Availability: InStock

24V 3000RPM 0.19Nm 60W 3.60A 42x42x81mm Brushless DC Motor - 42BSB81-24-01 | StepperOnline CA

42BSB81-24-01

Output Shaft TypeO

Shaft Diameter(mm)5

Shaft Length(mm)20

Rated Voltage(V)24

Question

Downloads

42BSB81-24-01_Full_Datasheet.pdfPDF · 119.35KB 42BSB81-24-01.stpSTP · 97.02KBLog in to download

Same series

Model	Output Shaft Type	Shaft Diameter(mm)	Shaft Length(mm)	Rated Voltage(V)	Price	Stock
42BLR43-24-01	O	5	20	24	C$28.81	Backorder
42BLS40-24-01	O	5	20	24	C$24.88	In stock
42BLS60-24-01	O	5	20	24	C$31.08	In stock
42BSA46-24-01	O	5	24	24	C$23.04	In stock
42BSA62-24-01	O	5	24	24	C$25.92	In stock
42BSA62-36-01	O	5	24	36	C$25.92	In stock
42BSA78-24-01	O	5	24	24	C$34.56	In stock
42BSA78-48-01	O	5	24	48	C$34.56	In stock
42BSB101-24-01	O	5	20	24	C$31.68	In stock
42BSB101-48-01	O	5	20	48	C$31.68	In stock
42BSB41-24-01	O	5	20	24	C$20.16	In stock
42BSB61-24-01	O	5	20	24	C$23.04	In stock
42BSB61-48-01	O	5	20	48	C$23.04	In stock
42BSB81-24-01	O	5	20	24	C$28.80	In stock

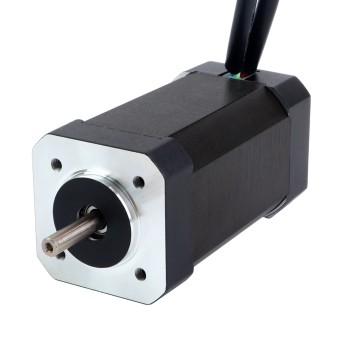

42BSB81-48-01	O	5	20	48	C$28.80	In stock
42BYA43-24-01	O	5	20	24	C$21.60	In stock
42BYA51-24-01	O	5	20	24	C$24.48	In stock
42BYA73-24-01	O	5	20	24	C$34.56	In stock
57BLR110-36-01	O	8	25	36	C$52.37	In stock
57BLR50-24-01	O	8	25	24	C$32.20	In stock
57BLR50-36-01	D	8	25	36	C$32.20	In stock
57BLR70-24-02	O	8	25	24	C$45.76	In stock
57BLR70-36-01	O	8	25	36	C$37.29	In stock
57BLY54-24-01	O	8	21	24	C$27.12	In stock
57BSA100-36-01	D	8	21	36	C$63.36	In stock
57BSA100-48-01	D	8	21	48	C$63.36	In stock
57BSA58-24-01	D	8	21	24	C$31.68	In stock
57BSA79-36-01	D	8	21	36	C$46.08	In stock
57BSD116-36-01	D	8	21	36	C$41.76	In stock
57BSD116-48-01	D	8	21	48	C$41.76	In stock

View all in category

24V 3000RPM 0.19Nm 60W 3.60A 42x42x81mm Brushless DC Motor

This is a 24V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and t... Read More

0 reviews • Write a review

from

C$28.80

5 + C$27.96

10 + C$27.17

50 + C$26.42

100 + C$25.71

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

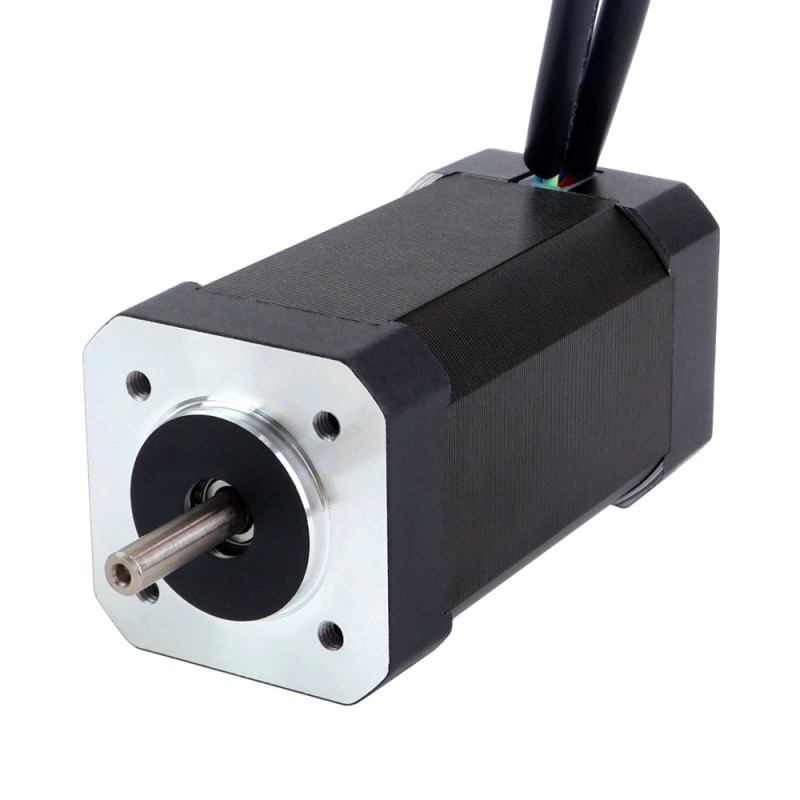

This is a 24V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and torque of 0.19Nm(26.91oz.in).
The 42BSB series brushless motor is designed as an economical yet higher performance general purpose motor and is suitable for medium to low power applications with low torque requirements, such as cooling fans, pumps and other household appliances, etc.

Electrical Specification

Manufacturer Part Number: 42BSB81-24-01
Phase: 3
Poles: 8
Rated Voltage: 24V
Rated Torque: 0.19Nm(26.91oz.in)
Rated Power: 60W
Rated Speed: 3000±10%RPM
Rated Current: 3.60A
No-load Speed: 4100±10%RPM
Resistance/phase: 1.00±10%Ohms
Inductance/phase: 1.13±20%mH
BACK EMF: 4.00±5%V/krpm
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 81mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
Shaft Type: Round
Number of Leads: 8
Lead Length: 500mm
Sensor: Hall Sensor
Weight: 0.616kg

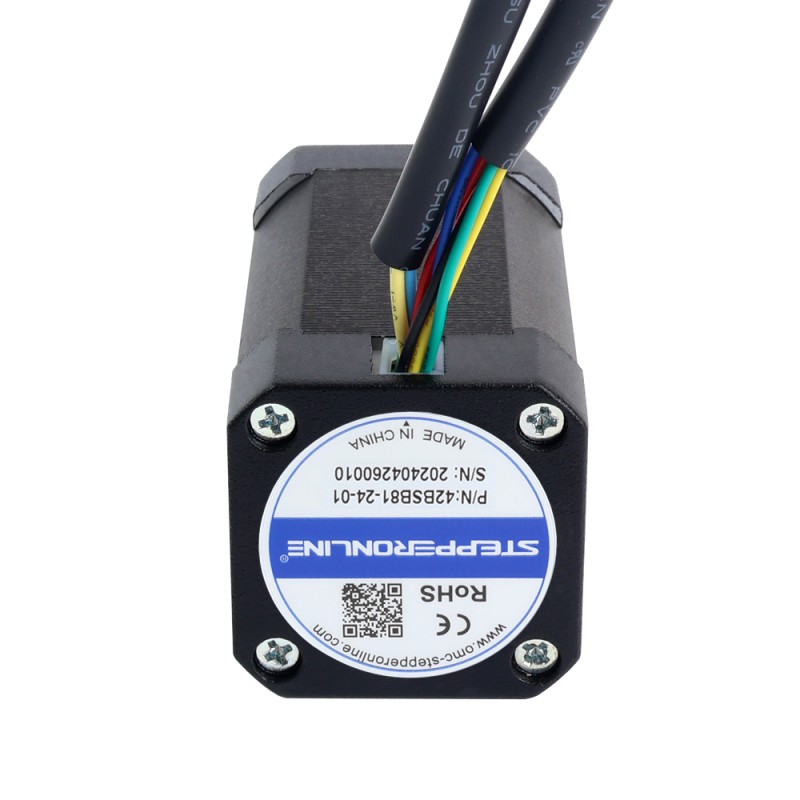

Connection

U	V	W	+5V	GND	A	B	C
Yellow	Green	Blue	Red	Black	Yellow	Green	Blue

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	3.6
Rated Power(W)	60
Rated Speed(rpm)	3000
Rated Torque(Nm)	0.19
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	81
Frame Size(mm)	Nema 17 (42 x 42)
Output Shaft Type	O
Shaft Diameter(mm)	5
Shaft Length(mm)	20
