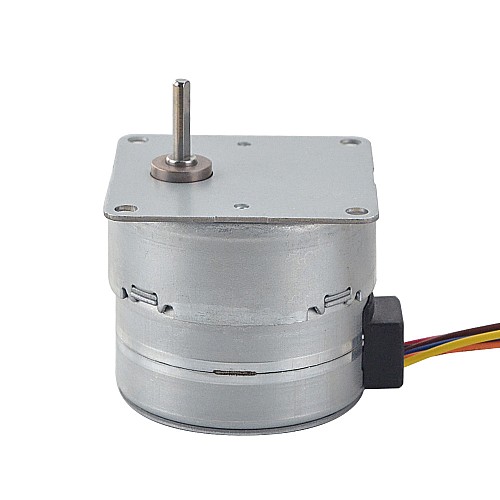

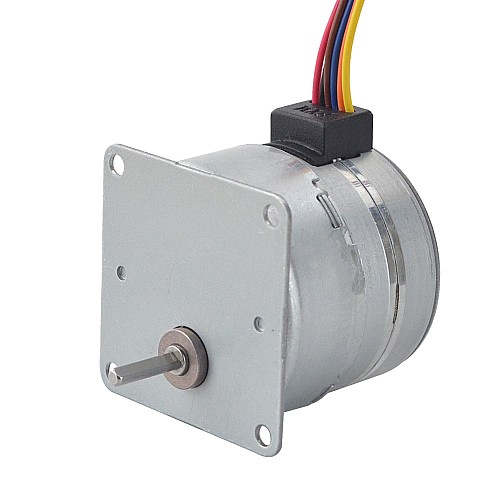

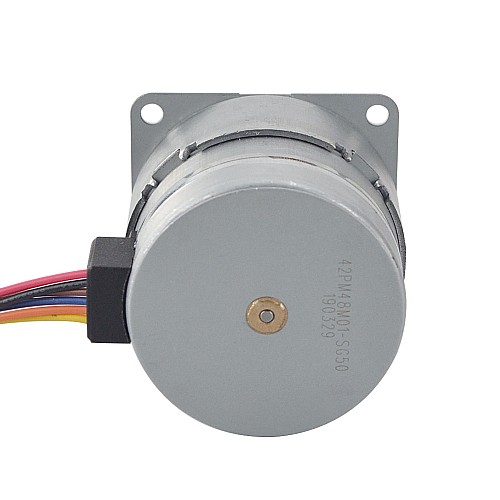

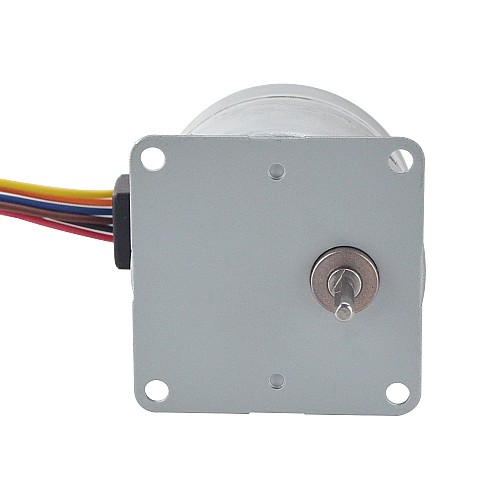

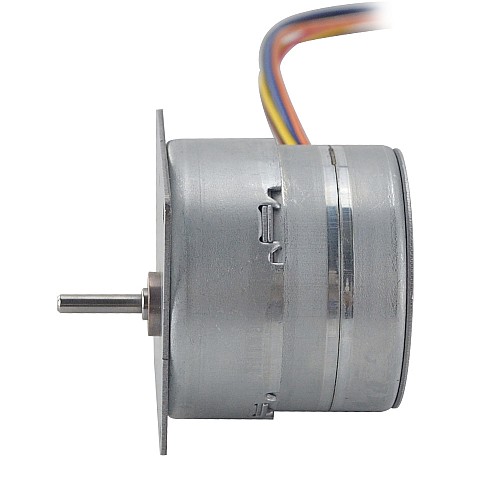

CN On Sale - Φ42x38mm PM Stepper motor W/Gear Ratio 50:1 Spur gearbox

Φ42x38mm PM Stepper motor W/Gear Ratio 50:1 Spur gearbox - 42PM48M01-SG50 | StepperOnline CA

-33 %

CN On Sale - Φ42x38mm PM Stepper motor W/Gear Ratio 50:1 Spur gearbox

0 reviews - Write a review

C$25.23

C$16.98

In Stock: 10000
Model: CN-42PM48M01-SG50
Gross Weight: 0.25kg
Certificated: ISO, CE

Sold: 27

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 42PM48M01-SG50
Motor Type: PM Stepper
Phase: 4
Step Angle: 0.15deg
Rated Current/phase: 0.171A
Holding Torque: 98Ncm(138.807oz.in)
Phase Resistance: 70±7%ohms(25℃)
Insulation Class: B 130°C[266°F]
Inductance: 54mH±20%

Physical Specification

Frame Size: Φ42mm
Body Length: 38mm
Gearbox Length: 16mm
Shaft Diameter: Φ3mm
Shaft Length: 16mm
Gearbox Type: Spur
Gear Ratio: 50

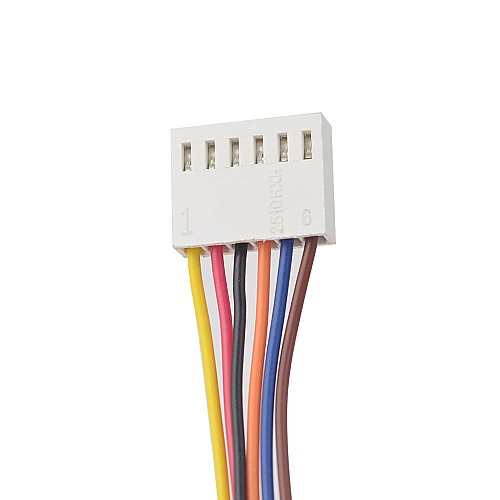

Number of Leads: 6 with connector 2510CS-6Y
Lead Length: 340mm
Weight: 197.4g

Connection

A+	O+	A-	B+	O-	B-
YEL	BRN	BLK	ORG	BRN	RED

Product Type
Product Type	PM Geared Stepper Motor
Electrical Specification
Holding Torque(Ncm)	98
Inductance(mH)	54
Phase Resistance(ohms)	70
Rated Current(A)	0.171
Step Angle(deg.)	0.15
Physical Specification
Body Length(mm)	38
Frame Size(mm)	Φ42
Gear Ratio(xx:1)	50
Gearbox Type	spur
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	340
No. of Lead	6
Shaft Diameter(mm)	3
Shaft Length(mm)	16
Weight(g)	197.4
