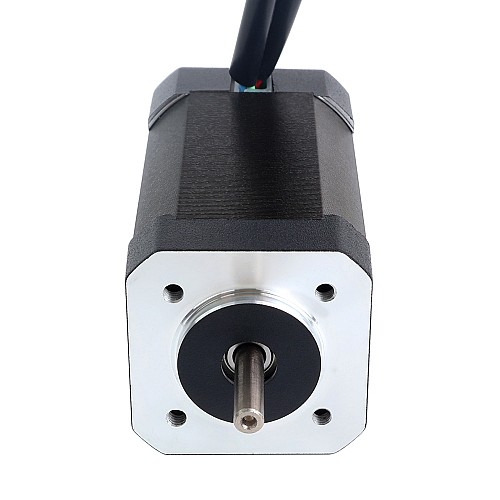

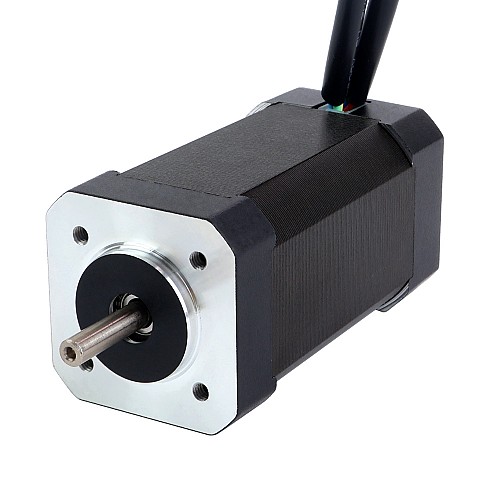

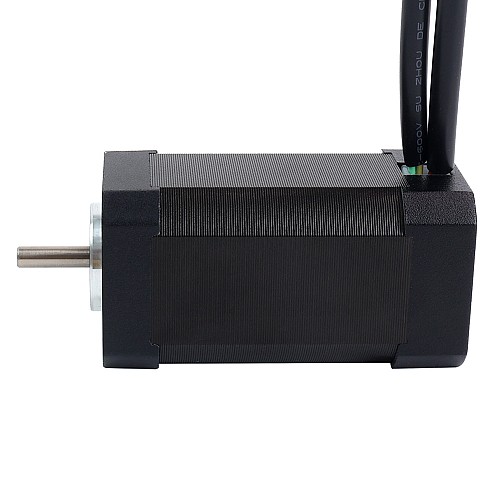

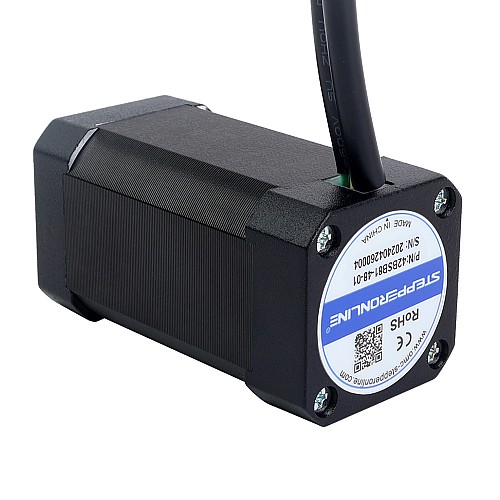

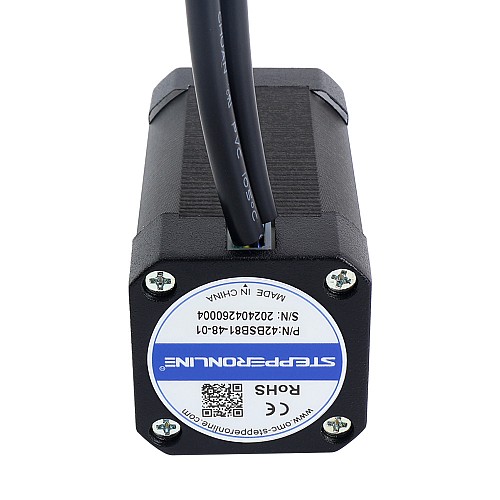

48V 3000RPM 0.19Nm 60W 1.80A 42x42x81mm Brushless DC Motor

0 reviews - Write a review

C$33.42

5 + C$32.31

10 + C$31.27

50 + C$30.31

100 + C$29.39

In Stock: 10000
Model: 42BSB81-48-01
Gross Weight: 0.72kg
Certificated: ISO, CE

Sold: 6

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This is a 48V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and torque of 0.19Nm(26.91oz.in).
The 42BSB series brushless motor is designed as an economical yet higher performance general purpose motor and is suitable for medium to low power applications with low torque requirements, such as cooling fans, pumps and other household appliances, etc.

Electrical Specification

Manufacturer Part Number: 42BSB81-48-01
Phase: 3
Poles: 8
Rated Voltage: 48V
Rated Torque: 0.19Nm(26.91oz.in)
Rated Power: 60W
Rated Speed: 3000±10%RPM
Rated Current: 1.80A
No-load Speed: 4100±10%RPM
Resistance/phase: 4.03±10%Ohms
Inductance/phase: 4.50±20%mH
BACK EMF: 8.20±5%V/krpm
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 81mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
Shaft Type: Round
Number of Leads: 8
Lead Length: 500mm
Sensor: Hall Sensor
Weight: 0.616kg

Connection

U	V	W	+5V	GND	A	B	C
Yellow	Green	Blue	Red	Black	Yellow	Green	Blue

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	1.8
Rated Power(W)	60
Rated Speed(rpm)	3000
Rated Torque(Nm)	0.19
Rated Voltage(V)	48
Physical Specification
Body Length(mm)	81
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
Output Shaft Type	O
Shaft Diameter(mm)	5
Shaft Length(mm)	20
