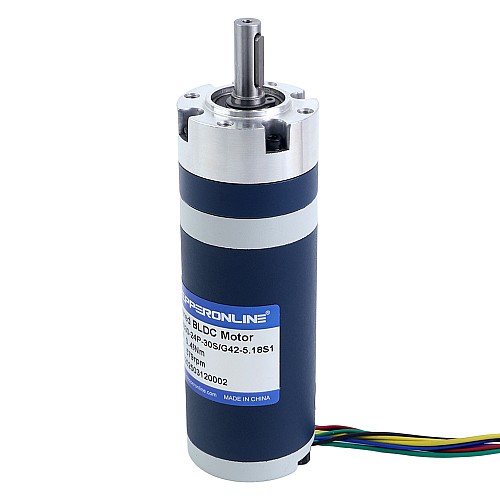

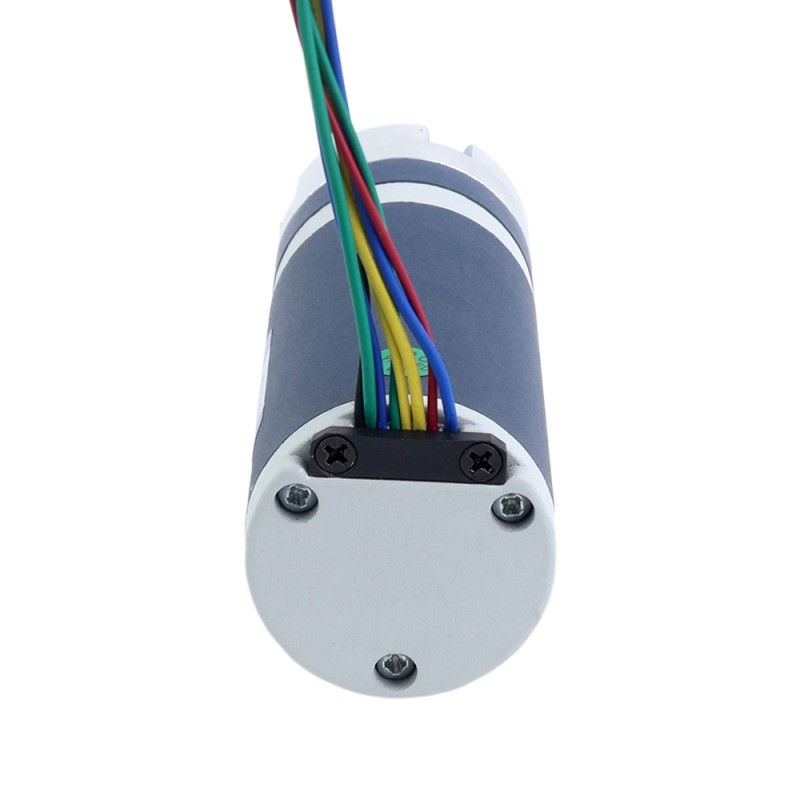

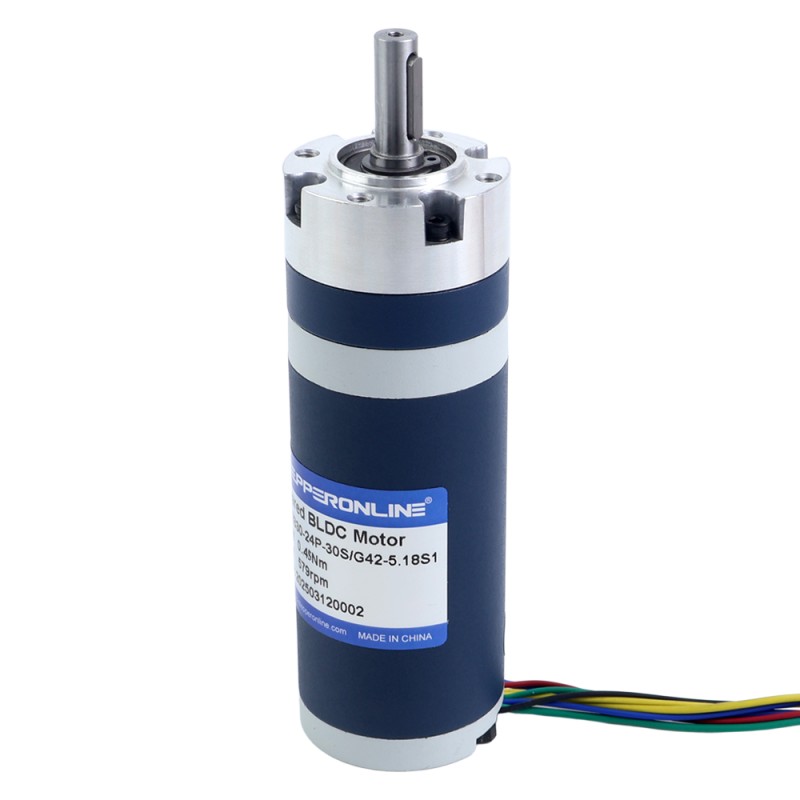

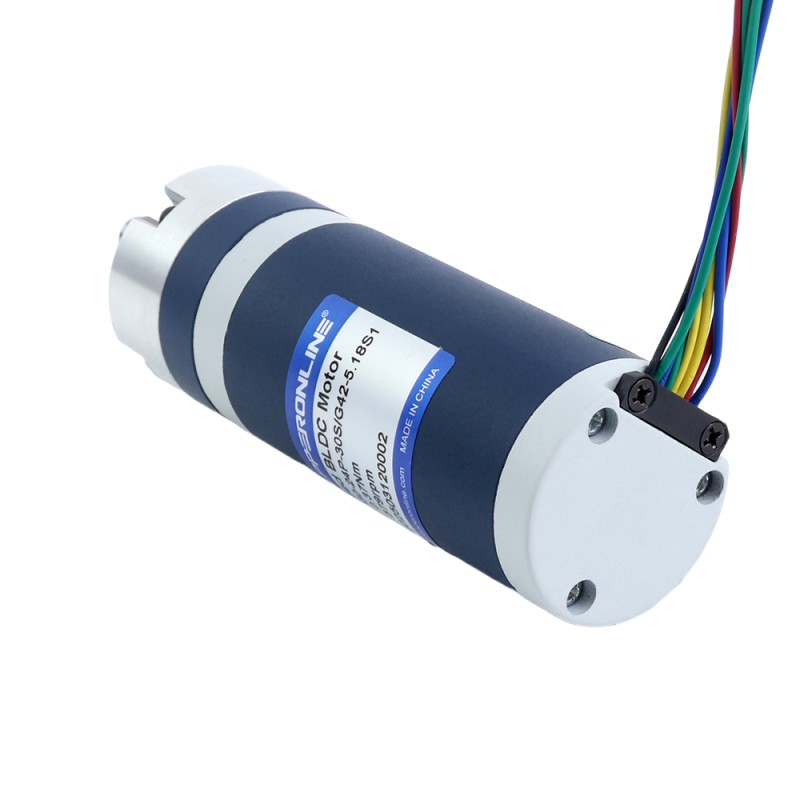

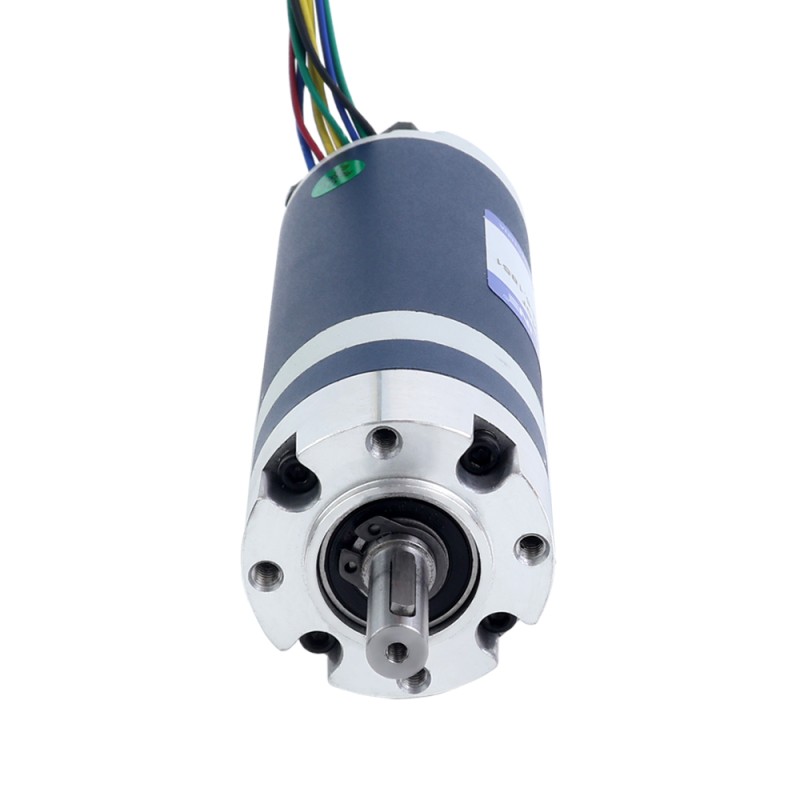

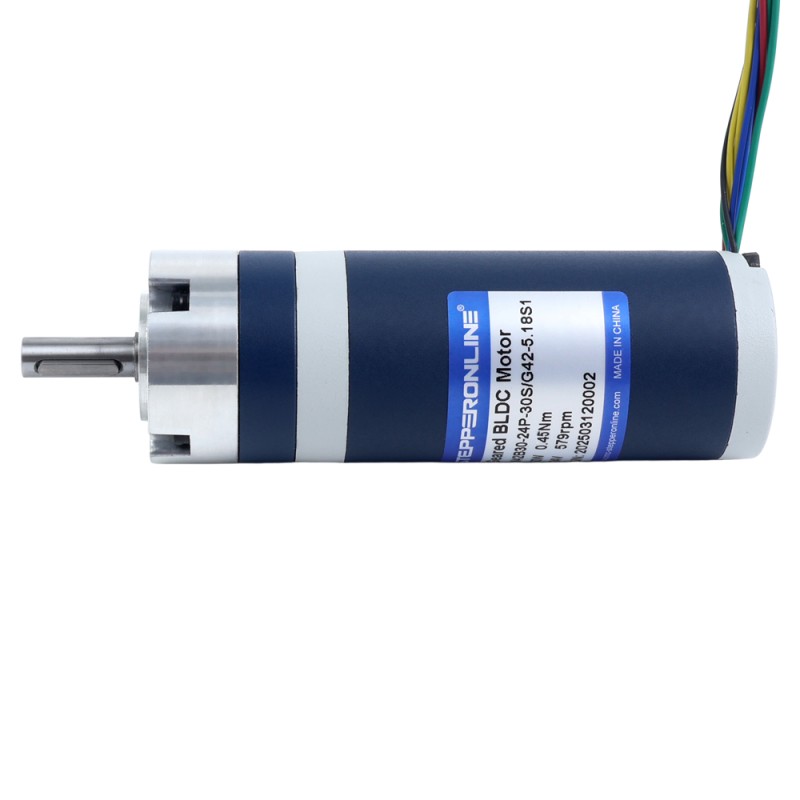

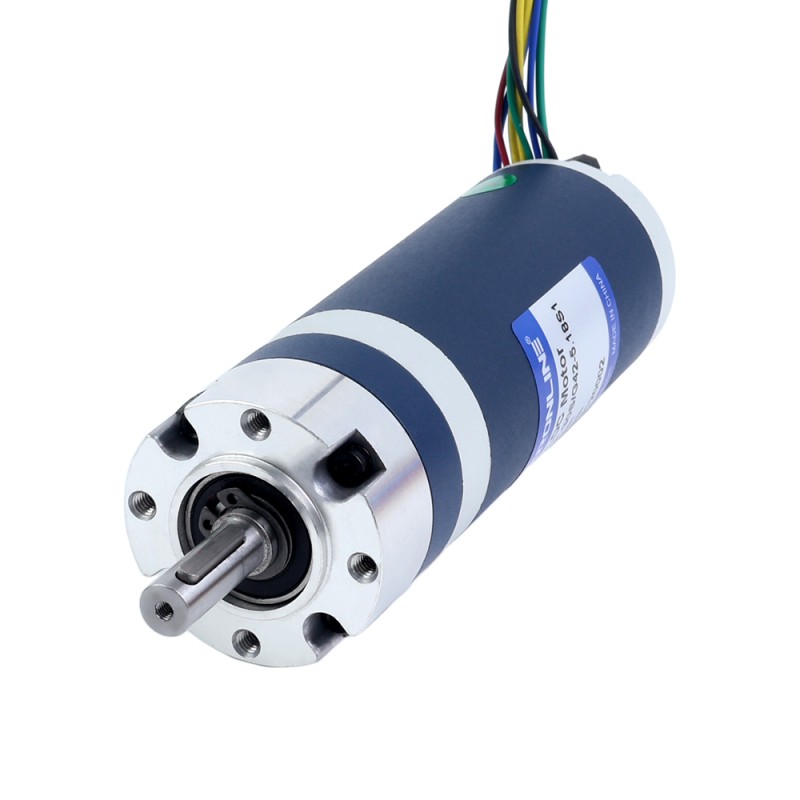

24V 30W 579RPM Geared Brushless DC Motor 0.45Nm(63.73oz.in) 5.18:1 Planetary Gearbox

This is a 24V 30W brushless DC motor with a Φ42mm flange diameter, a rated torque of 0.45Nm(63.73oz... Read More

0 reviews • Write a review

from

C$49.14

5 + C$47.82

10 + C$46.56

50 + C$45.39

100 + C$44.25

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a 24V 30W brushless DC motor with a Φ42mm flange diameter, a rated torque of 0.45Nm(63.73oz.in) and a rated speed of 579rpm. It is equipped with a planetary gearbox with a gear ratio of 5.18:1, which delivers high torque for precision applications. The compact cylindrical design facilitates integration into systems with limited space.
Due to its compact structure, high precision, stability, low noise, long service life and low maintenance costs, this motor is widely used in robotics, industrial automation, medical devices, security and surveillance systems and other demanding applications.

Electrical Specifications

P/N: M42B30-24P-30S/G42-5.18S1
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Power: 30W
Rated Current: 1.66A
Rated Torque: 0.45Nm(63.73oz.in)
Rated Speed: 579rpm
Speed without Gearbox: 3400rpm±10%
Sensor: Hall Sensor
Insulation Class: B 130°C[266°F]

Physical Specifications

Gearbox Type: Planetary Gearbox
Gearbox Ratio: 5.18:1
Frame Size: Φ42mm
Body Length: 121.4mm
Shaft Type: Keyway
Shaft Diameter: Φ8mm
Shaft Length: 25mm
Radial Load: 160N
Axial Load: 50N
Weight: 0.68kg

Connection

Motor Wires			Hall Wires
U	V	W	+	-	Ha	Hb	Hc
Yellow	Green	Blue	Red	Black	Yellow	Green	Blue
20AWG			26AWG

Gear Ratio Options

For optional ratios and their corresponding rated speeds/torques, please refer to the table.

Stage	1-Stage			2-Stage
Ratio	3.71	5.18	6.75	13.7	19.2	25	35	45.6
Speed(rpm)	809	579	444	219	156	120	86	66
Torque(Nm)	0.27	0.37	0.48	0.90	1.20	1.60	2.30	2.90

Stage	3-Stage
Ratio	50.9	71.2	92.7	99.5	129.6	139.2	181.3	236.1	307.5
Speed(rpm)	59	42	32	30	23	22	17	13	9.8
Torque(Nm)	3.00	4.10	5.40	5.80	7.50	8.10	10.00	10.00	9.00

Product Type
Product Type	Geared BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	1.66
Rated Power(W)	30
Rated Speed(rpm)	579
Rated Torque(Nm)	0.45
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	121.4
Frame Size(mm)	⌀42
Gear Ratio(xx:1)	5.18
Gearbox Type	Planetary Gearbox
Output Shaft Type	Keyway
Shaft Diameter(mm)	8
Shaft Length(mm)	25
With Gearbox	Yes
