Nema 17 Non-captive 34mm Stack 0.4A Lead 2mm(0.07874") Length 150mm

0 reviews - Write a review

C$45.24

5 + C$43.63

10 + C$42.14

50 + C$40.73

100 + C$39.41

In Stock: 10000
Model: 17N13S0404AF4-150RS
Gross Weight: 0.37kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

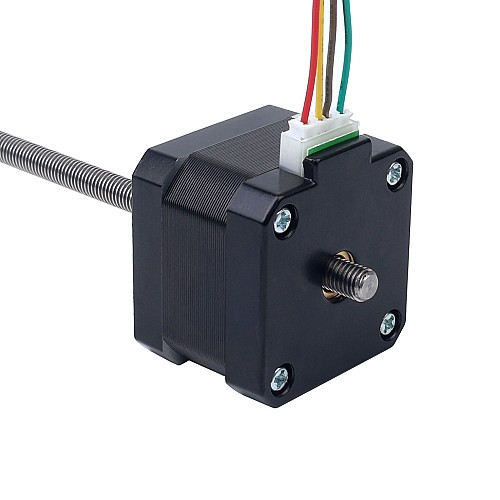

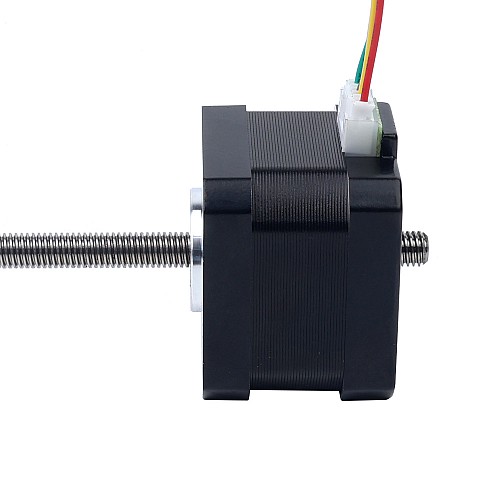

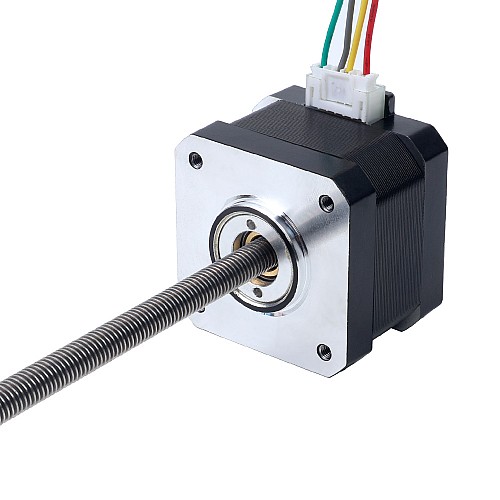

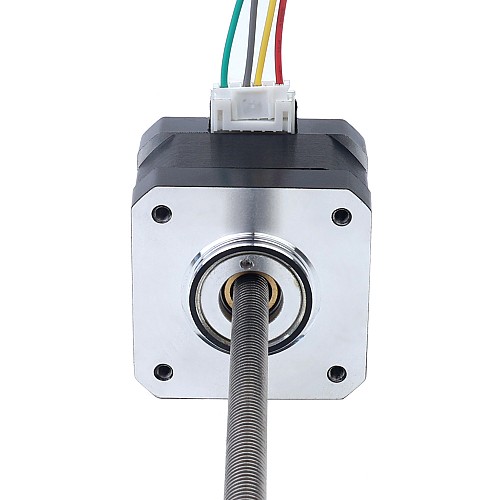

This model is economy linear stepper motor which named Nema 17 non captive linear actuator, it was composed of 34mm 1.8 degree 0.4A Nema 17 stepper motor and 150mm length Tr6.35x2 linear screw.

Electrical Specification

Manufacturer Part Number: 17N13S0404AF4-150RS(17N13S0404AF2-150RS)
Motor Type: Non Captive Linear Stepper
Step Angle: 1.8deg
Holding Torque: 0.26Nm(36.82oz.in)
Rated Current/phase: 0.4A
Phase Resistance: 30ohms
Voltage: 12V
Inductance: 37mH ± 20%(1KHz)

Physical Specification

Frame Size: 42 x 42mm
Body Length: 34mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.01mm(0.0003937")
Lead/Revolution: 2mm(0.0787")
Number of Leads: 4
Cable Length: 400mm

Connection

A+	A-	B+	B-
Red	Gray	Yellow	Green

● How to order a custom linear motor? Custom Linear Stepper Motor

● If you only have the old part number, get the new one here Show Details

● How we named linear motor? Part Number Construction

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	26
Inductance(mH)	37
Phase Resistance(ohms)	30
Rated Current(A)	0.4
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	34
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	400
Lead Screw Diameter(mm)	6.35
Lead Screw Length(mm)	150
Lead Travel/Revolution(mm)	2
Lead Travel/Step(mm)	0.01
Linear Motor Type	Non-Captive
No. of Lead	4
