24V 101W Round Geared Brushless DC Motor 20.00Nm(2832.23oz.in) 100:1 Round Planetary Gearbox
This is a 24V 101W round brushless DC motor with a flange of Φ57mm. The built-in 100:1 round planeta... Read More
0 reviews • Write a review
from
C$100.83
5 + C$97.50
10 + C$94.38
50 + C$91.45
100 + C$88.70

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

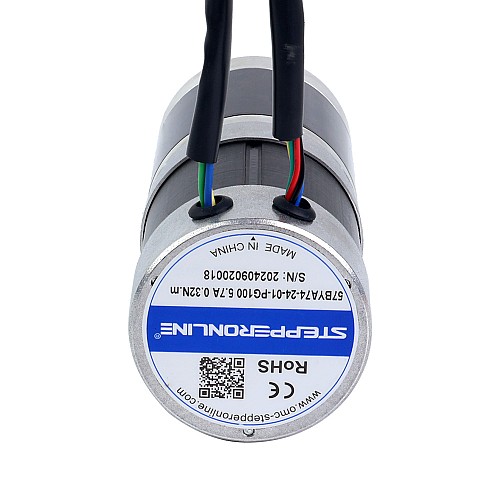

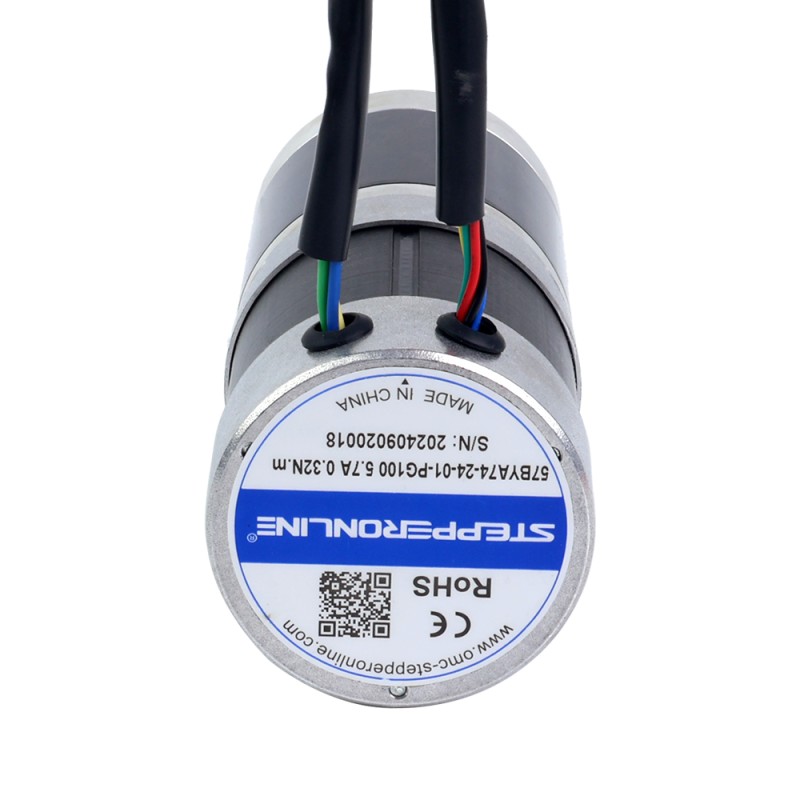

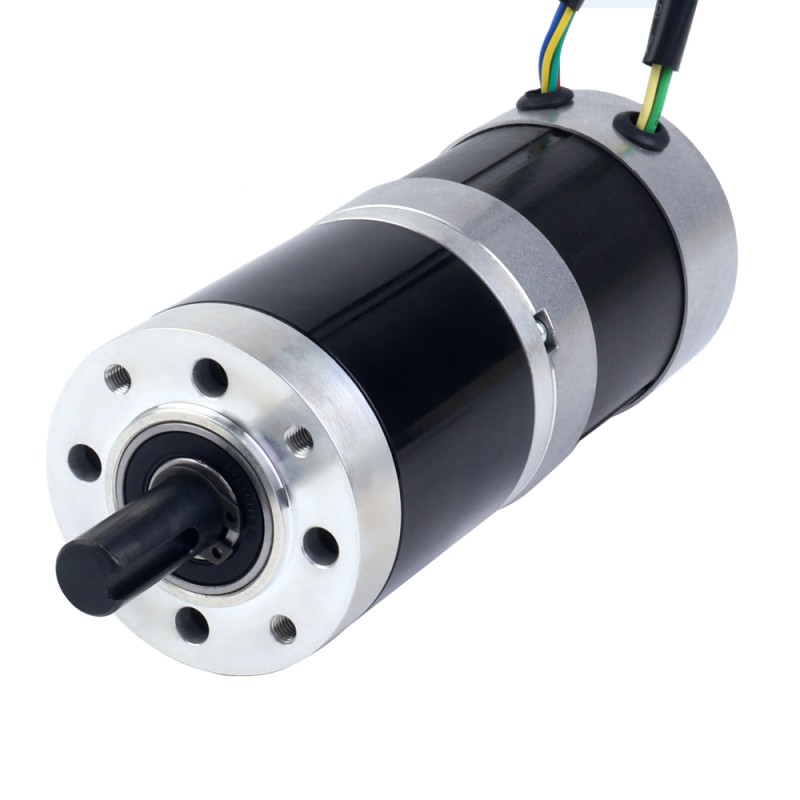

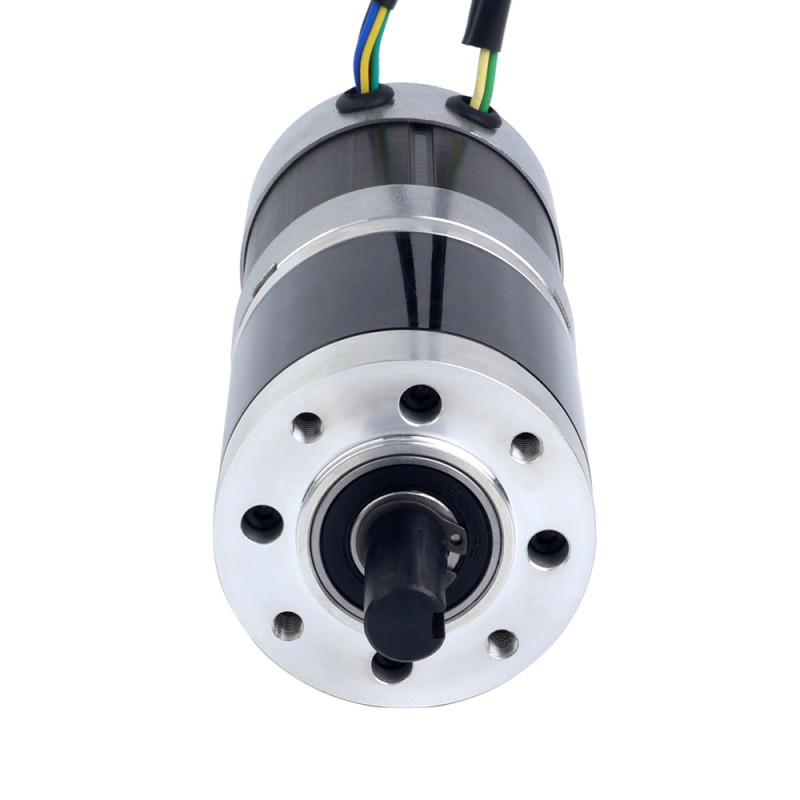

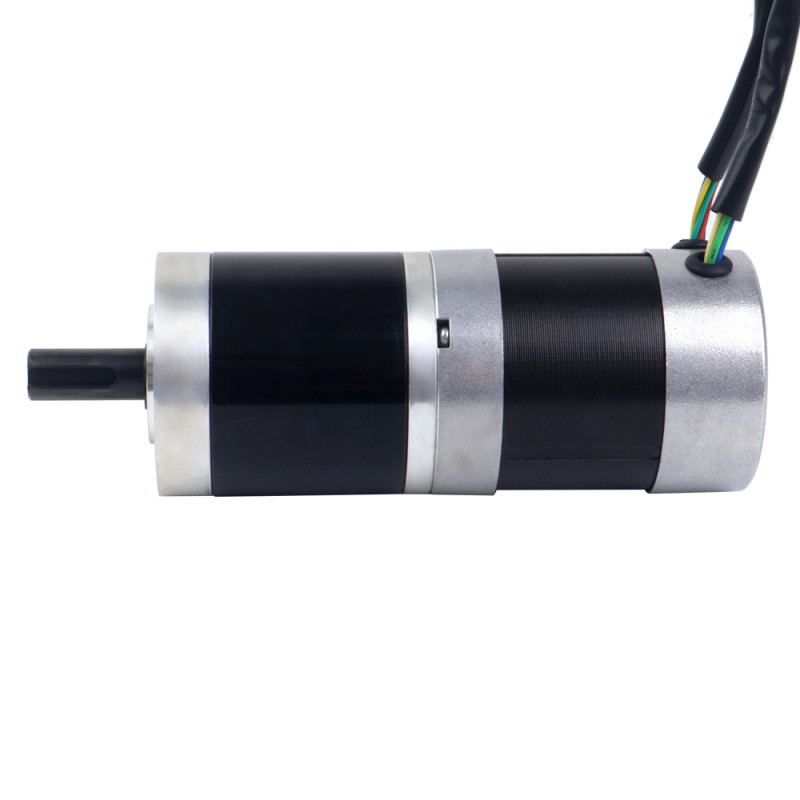

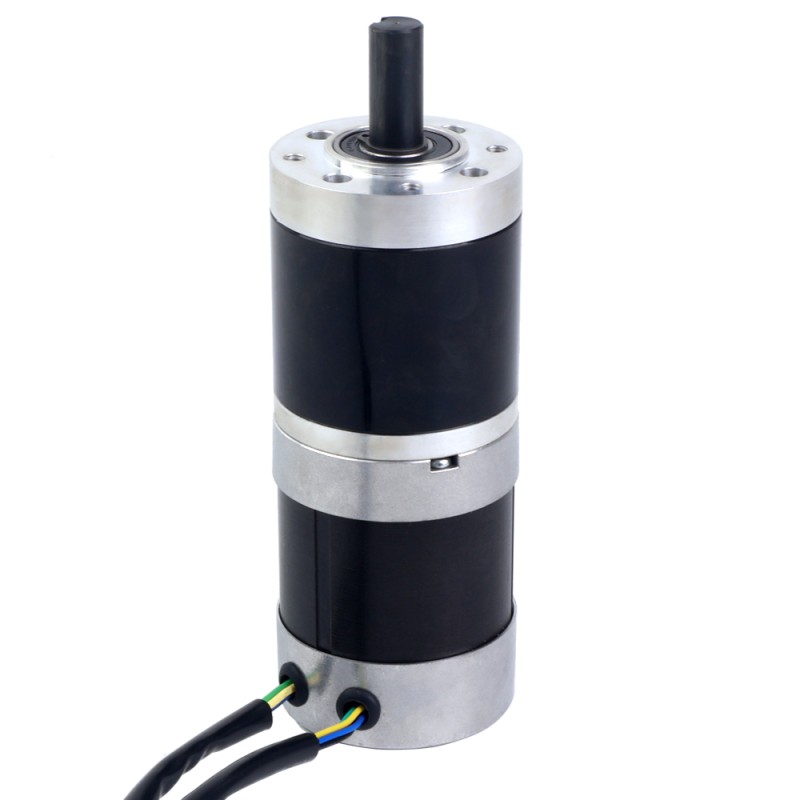

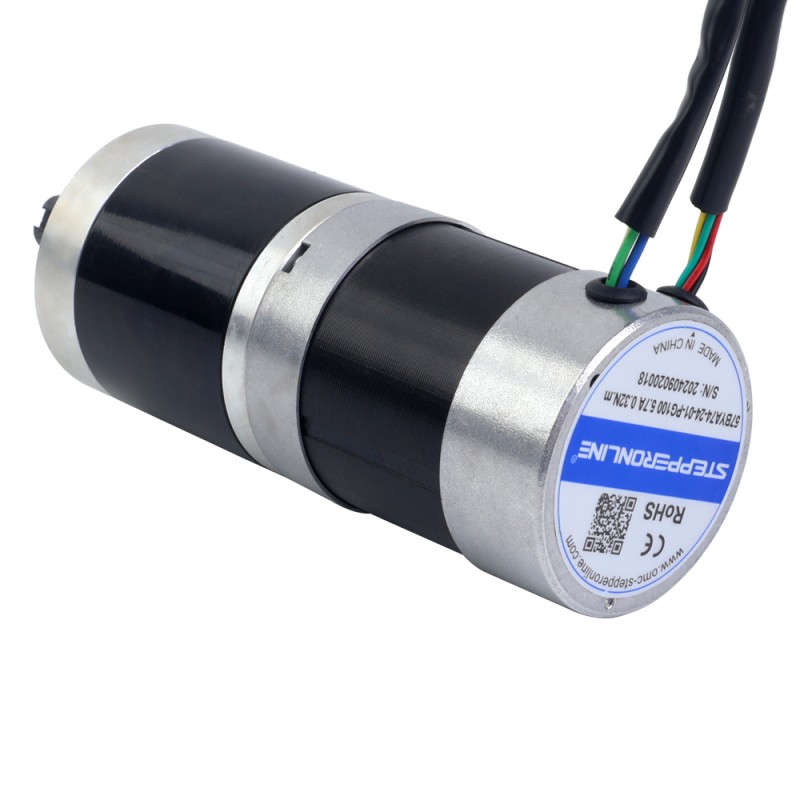

This is a 24V 101W round brushless DC motor with a flange of Φ57mm. The built-in 100:1 round planetary gearbox delivers rated torque of 20.00Nm(2832.23oz.in). The overall cylindrical body is more suitable for installation in specific situations.
It is the perfect solution for motion control applications that require high torque, high precision, maximum efficiency and compact structure, such as medical equipment, robotics and other industrial applications, etc.

Electrical Specification

  • P/N: 57BYA74-24-01-PG100
  • Phase: 3
  • Poles: 4
  • Rated Voltage: 24V
  • Rated Torque without Gearbox: 0.32Nm(45.32oz.in)
  • Rated Torque with Gearbox: 20.00Nm(2832.23oz.in)
  • Rated Power: 101W
  • Rated Speed: 30rpm
  • Speed Without Gearbox: 3000rpm
  • Rated Current: 5.70A
  • Resistance/phase: 0.43±10%Ohms
  • Inductance/phase: 1.18±20%mH
  • BACK EMF: 4.8±5%V/krpm
  • Sensor: HALL
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Gearbox Type: Round Planetary Gearbox
  • Gear Ratio: 100:1
  • Frame Size: Φ57mm
  • Body Length: 135.5mm
  • Shaft Diameter: Φ12mm
  • Shaft Length: 30mm
  • Shaft Type: Keyway
  • Number of Leads: 8
  • Lead Length: 500mm
  • Weight: 1.55kg

Connection

U
V
W
+5V
GND
A
B
C
Yellow
Green
Blue
Red
Black
Yellow
Green
Blue
Product Type
Product Type Geared BLDC Motor
Electrical Specification
No. of Phase 3
Rated Current(A) 5.70
Rated Power(W) 101
Rated Speed(rpm) 30
Rated Torque(Nm) 0.32
Rated Voltage(V) 24
Physical Specification
Backlash at No-load <=3 deg
Body Length(mm) 135.5
Frame Size(mm) ⌀57
Gear Ratio(xx:1) 99.5
Gearbox Shape Round
Gearbox Type Planetary Gearbox
Output Shaft Type Keyway
Shaft Diameter(mm) 12
Shaft Length(mm) 30
With Gearbox Yes
