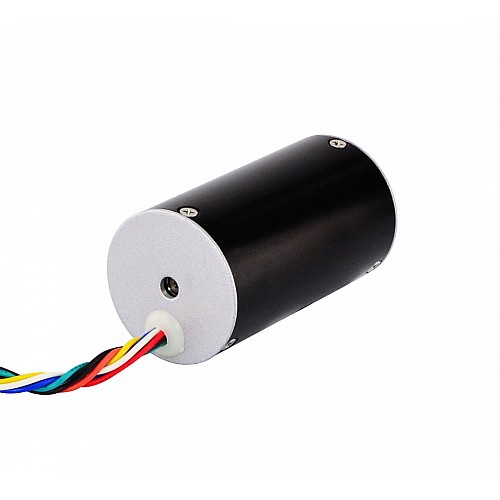

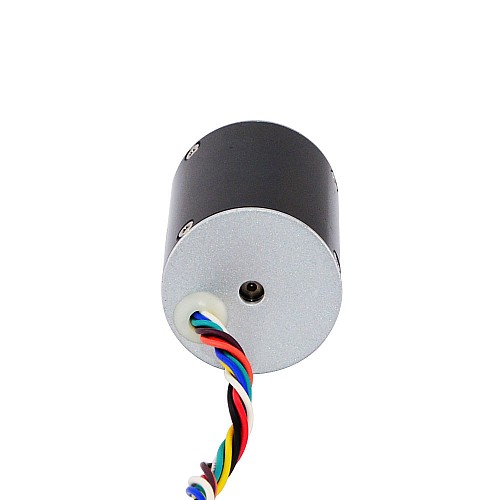

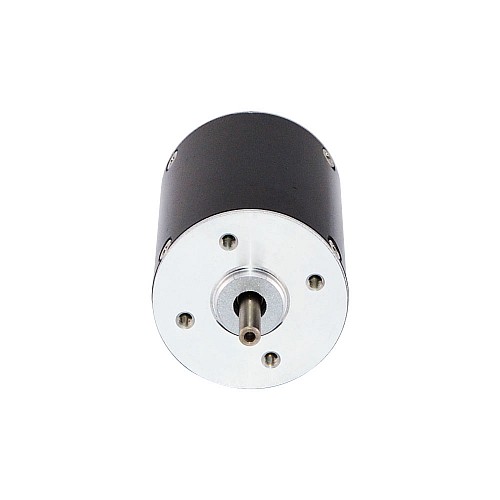

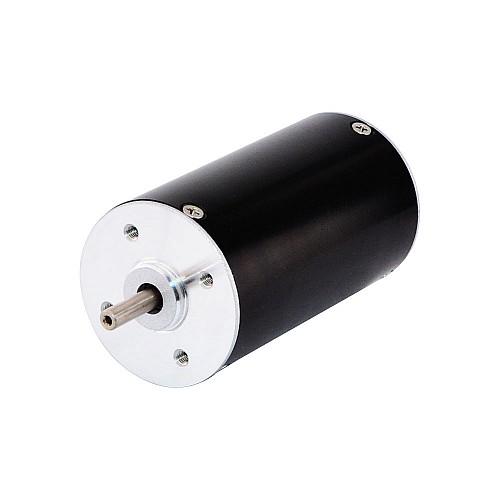

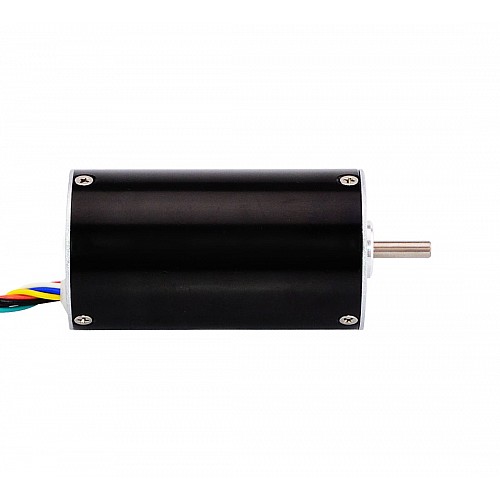

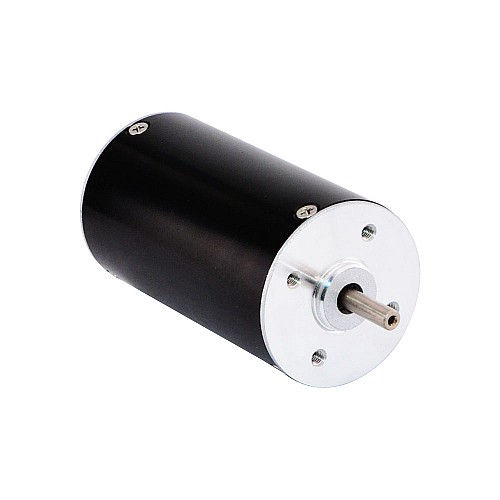

Name: 42BLR63-24-01 | 24V 4000RPM 0.131Nm 55W 3.5A Round Ф42x63mm Brushless DC Motor | StepperOnline CA
SKU: 42BLR63-24-01
Availability: InStock

24V 4000RPM 0.131Nm 55W 3.5A Round Ф42x63mm Brushless DC Motor

Discontinued

24V 4000RPM 0.131Nm 55W 3.5A Round Ф42x63mm Brushless DC Motor

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 42BLR63-24-01
Gross Weight: 0.47kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Electrical Specification

Manufacturer Part Number: 42BLR63-24-01
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Speed: 4000±10%RPM
Noload Speed: 6300RPM
Rated Torque: 0.131Nm(18.55oz.in)
Rated Current: 3.5±10%A
Noload Current: 0.3A
Rated Power: 55W
Insulation Class: B 130°C[266°F]
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

Frame Size: Φ42mm
Body Length: 63mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Sensor: Hall Sensor
Weight: 0.45kg

Connection

U	V	W	+5V	GND	A	B	C
Orange	Green	Brown	Red	Black	Yellow	White	Blue

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	3.5
Rated Power(W)	55
Rated Speed(rpm)	4000
Rated Torque(Nm)	0.131
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	63
Frame Size(mm)	Φ42
Inventory Method	Dedicated Inventory
IP Rating	20
Output Shaft Type	O
Shaft Diameter(mm)	5
Shaft Length(mm)	20
With Gearbox	No
