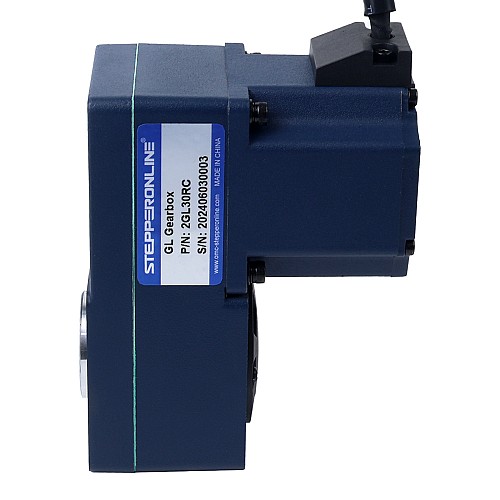

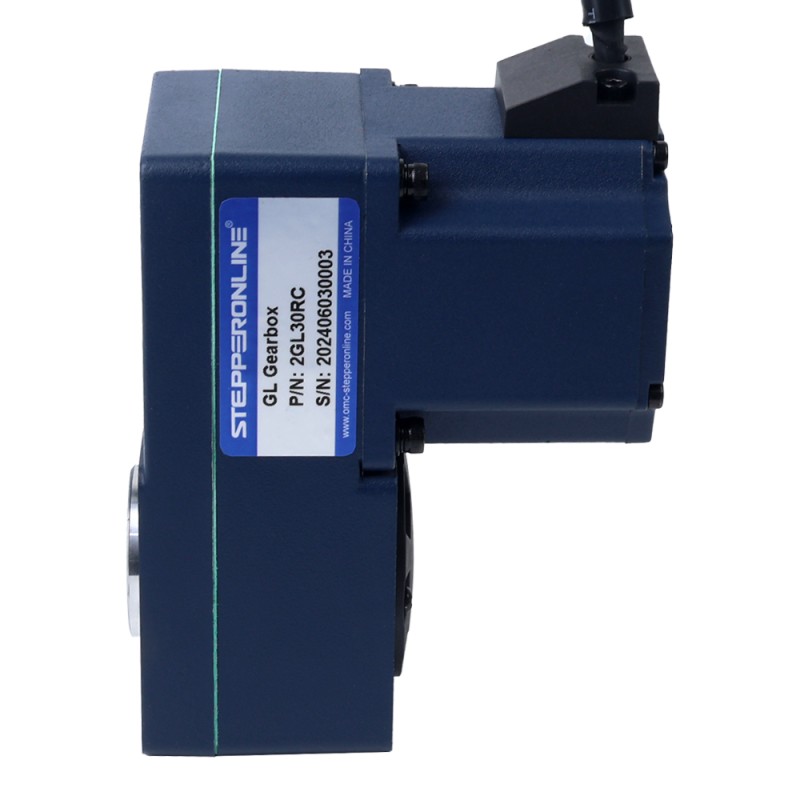

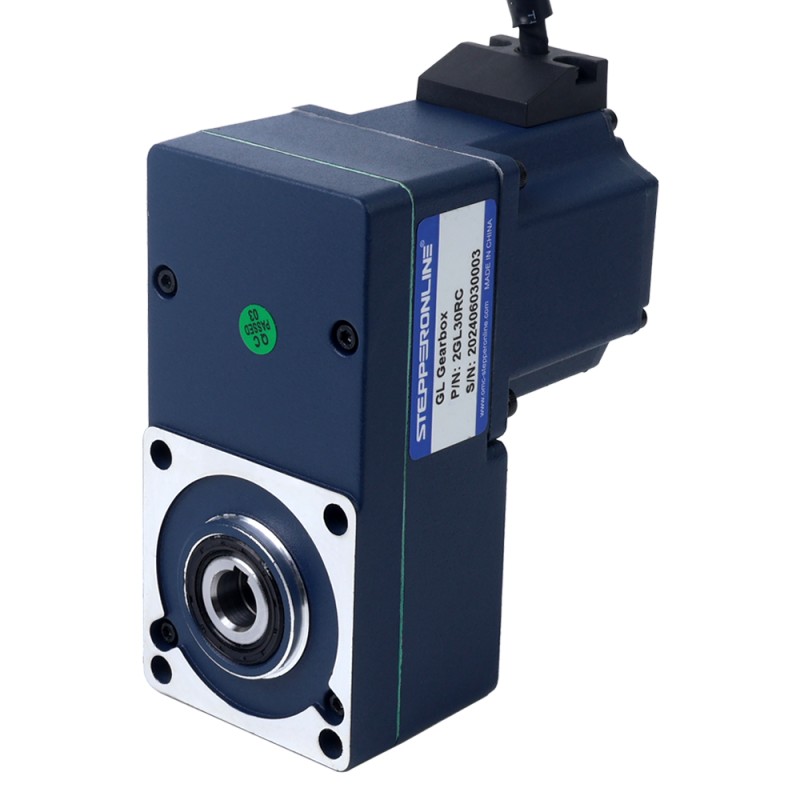

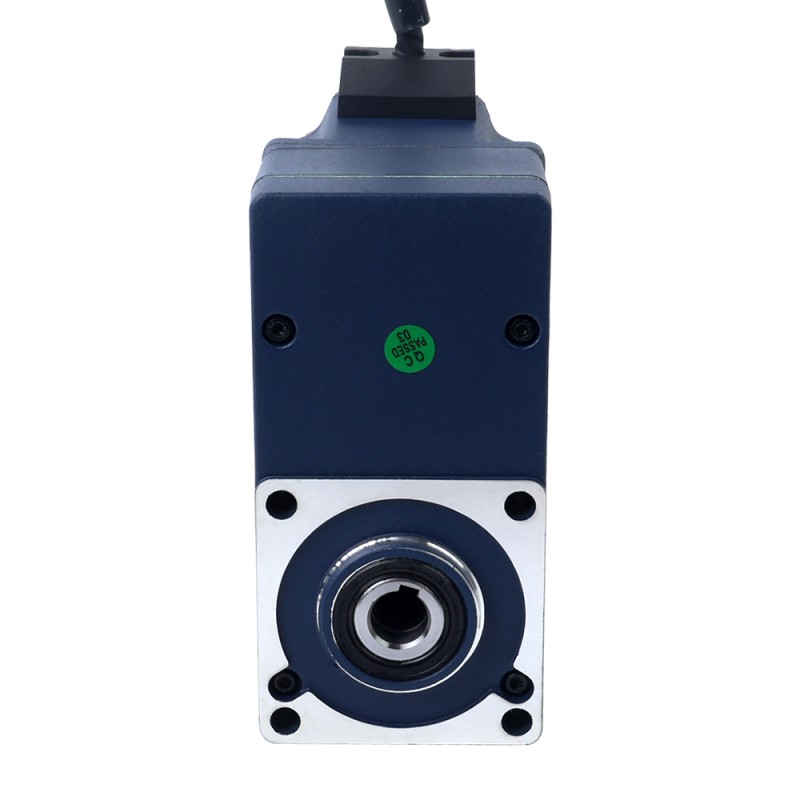

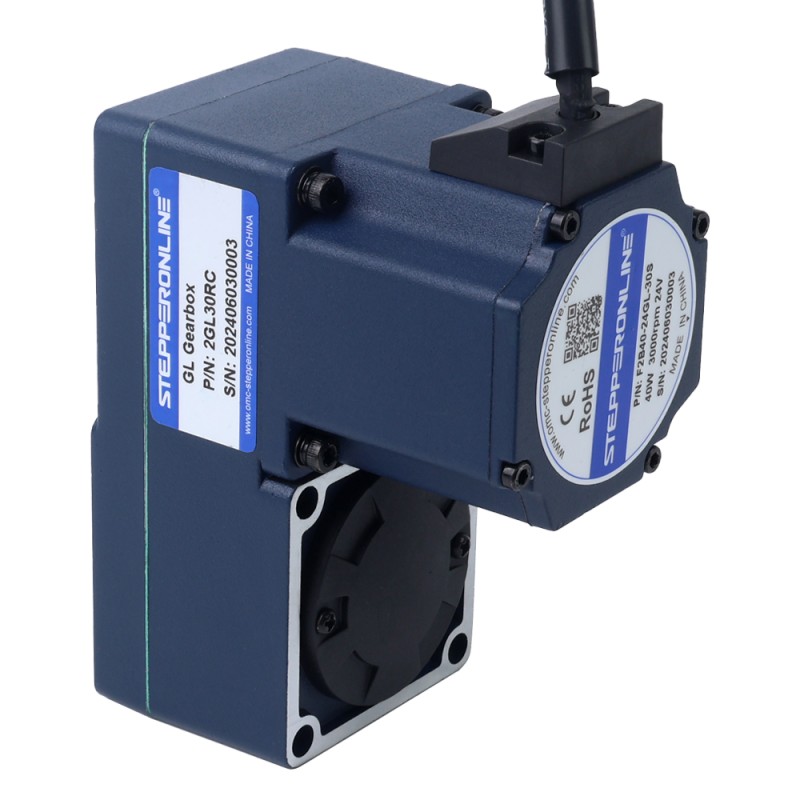

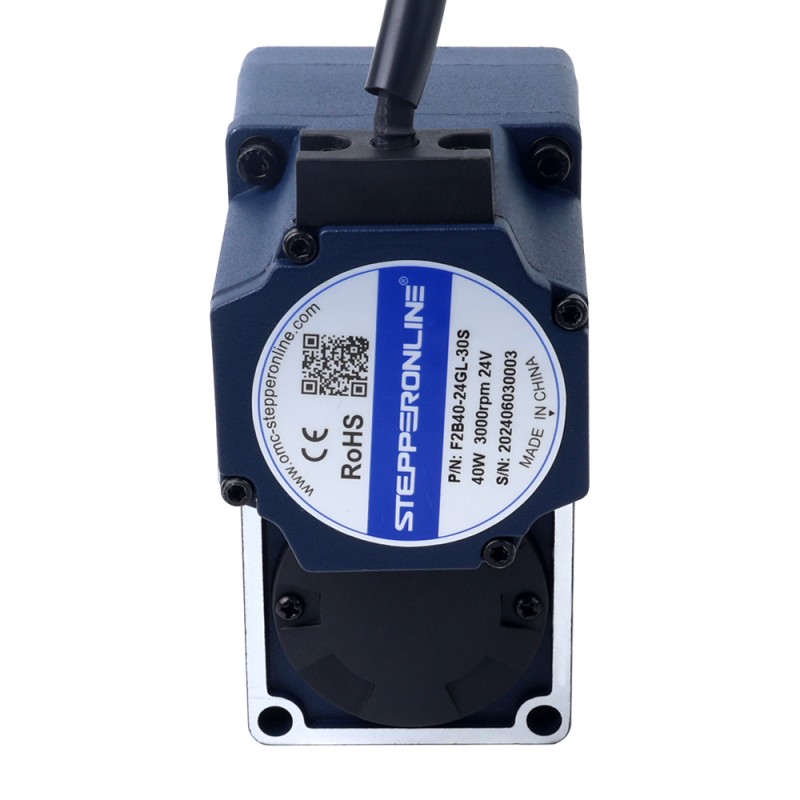

24V 40W 100RPM 2.80Nm(396.51oz.in) 30:1 Geared Brushless DC Motor w/ Parallel Hollow Shaft Gearbox

0 reviews - Write a review

C$97.07

5 + C$90.80

10 + C$85.31

50 + C$80.42

100 + C$76.09

In Stock: 10000
Model: F2B40-24GL-30S/2GL30RC
Gross Weight: 2.03kg
Certificated: ISO, CE

Sold: 6

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This is a 24V 40W BLDC gear motor with a flange of 60x60mm. The built-in 30:1 parallel hollow shaft gearbox brings speed and torque to 100rpm and 2.80Nm(396.51oz.in). Due to its compact structure, high efficiency, low noise, long life, strong controllability, brushless DC gear motors are widely used in industrial automation, home appliances, medical equipment, automotive industry and aerospace fields,etc.

The recommended BLDC driver to match this motor is BLD-305S.

Electrical Specifications

P/N: F2B40-24GL-30S/2GL30RC
Phase: 3
Poles: 10
Rated Current: 2.50A
Rated Voltage: 24V
Rated Speed: 100rpm
Rated Torque: 2.80Nm(396.51oz.in)
No-load Current: 0.70A
Rated Power: 40W
Insulation Class: E 120°C[248°F]
Insulation Resistance: 50MΩ Min @500V
Sensor: Hall Sensor
Life: More than 5000 hours

Physical Specifications

Frame Size: 60 x 60mm
Gearbox Type: Parallel Hollow Shaft Gearbox
Gearbox Ratio: 30:1
Shaft Type: Hollow
Bore Diameter: Φ12mm
Bore Length: 51mm
Bearing: Deep Groove Ball
Weight: 1.37kg

Connection

1	2	3	4	5	6	7	8
U	W	Hb	Ha	V	-	Hc	+
Yellow(Thick)	Blue(Thick)	Green	Yellow	Green(Thick)	Black	Blue	Red

Product Type
Product Type	Geared BLDC Motor
Electrical Specification
No-load Current(A)	0.7
No. of Phase	3
Rated Current(A)	2.50
Rated Power(W)	40
Rated Speed(rpm)	100
Rated Torque(Nm)	2.80
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	121.5
Frame Size(mm)	60 x 60
Gear Ratio(xx:1)	30
Gearbox Type	Parallel Gearbox
Output Shaft Type	Hollow
With Gearbox	Yes
