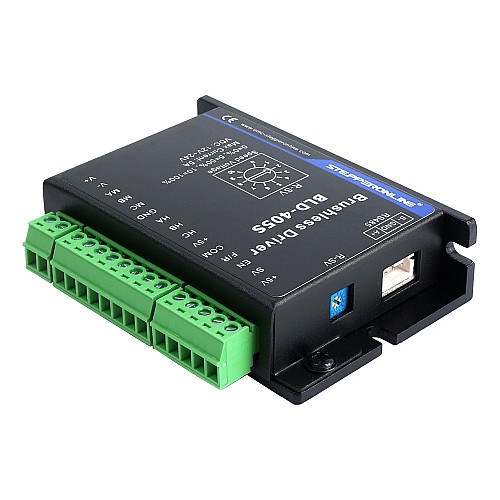

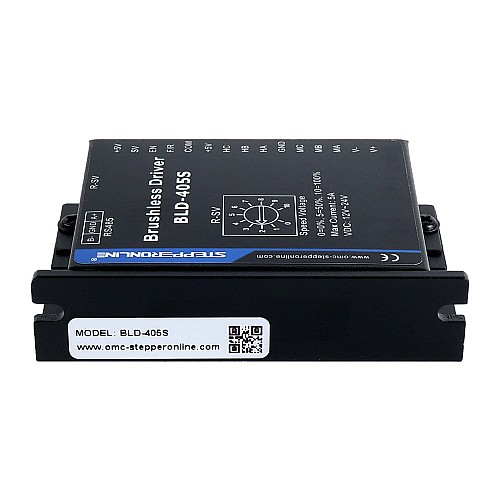

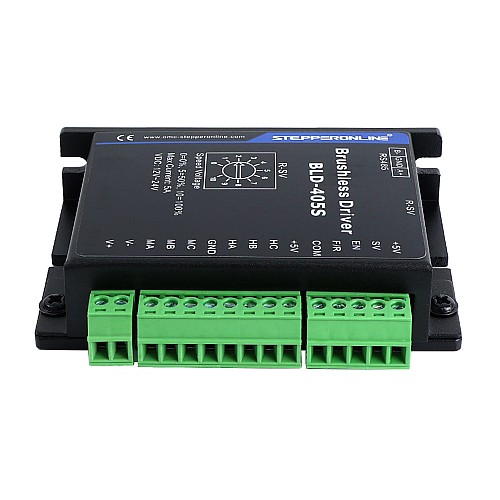

Digital Brushless DC Motor Driver 12V-36VDC Max 5.0A 120W

0 reviews - Write a review

C$31.14

5 + C$30.07

10 + C$29.08

50 + C$28.15

100 + C$27.28

In Stock: 10000
Model: BLD-405S
Gross Weight: 0.13kg
Certificated: ISO, CE

Sold: 332

Click country for real-time stock

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This 12V-36VDC 120W brushless motor driver is a driver independently developed by STEPPERONLINE to work with the field of modern industrial automatic control. It mainly uses high performance dedicated brushless DC motor driver chips, the latest IGBT and MOS power devices and adopts PWM technology. It is characterised by high integration, small size, complete protection, simple and clear wiring and high reliability. This driver is suitable for driving small and medium-sized brushless DC motors with a rated power of less than 120W.

Features

20kHz chopper frequency
High performance at a low price
Compatible with Hall and non-Hall sensors
PID speed and current dual-loop regulator
Support Modbus communication protocol, RS485 interface
It has stall protection function to make the motor respond quickly
The overload multiple is greater than 2, and the torque can always reach the maximum at low speed
Build with over-voltage, under-voltage, over-current, over-temperature, illegal Hall signal and other error alarm functions

Electrical Specification

Parameters	BLD-405S
Input Voltage(VDC)	12	24	36
Continuous Output Current(A)	4.0	4.0	3.3
Rated Output Power(W)	50	100	120
Peak Current(A)	5

As a medium-to-high-speed motor, we do not recommend brushless motors to operate within 150rpm.

Operating Environment
Cooling Method	Radiator
Humidity	<85%(No Frosting)
Operating Temperature	0℃ - 45℃
Store Temperature	-20℃ - 85℃
Product Type
Product Type	Brushless DC Driver
Electrical Specification
Alarm Output	No
Continuous Output Current(A)	4.0A(12VDC), 4.0A(24VDC), 3.3A(36VDC)
Control Modes	Analog Voltage, RS-485
E-STOP	No
Max. Output Power(W)	120
Operating Voltage(V)	12DC, 24DC, 36DC
Peak Current(A)	5.0
Power(W)	50W(12VDC), 100W(24VDC), 120W(36VDC)
Speed Signal Output	No
Physical Specification
Inventory Method	Dedicated Inventory
