24V 40W 60RPM Geared BLDC Motor 4.59Nm(650.34oz.in) 50:1 Right Angle Gearbox

0 reviews - Write a review

C$133.98

5 + C$154.36

10 + C$149.07

50 + C$144.20

100 + C$139.70

In Stock: 10000
Model: F4B40-24GN-30S/4GN50RT
Gross Weight: 3.64kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

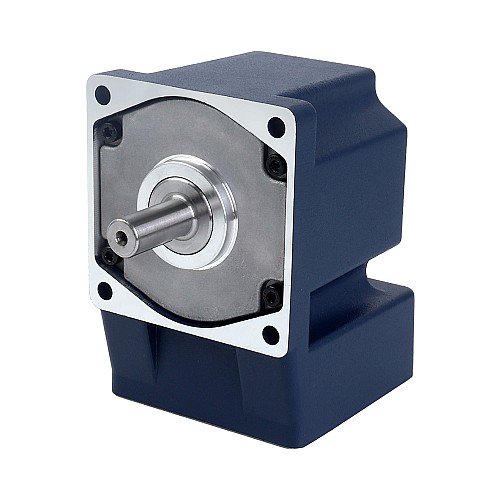

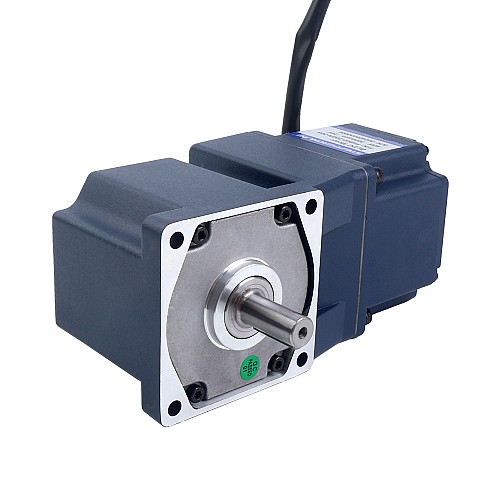

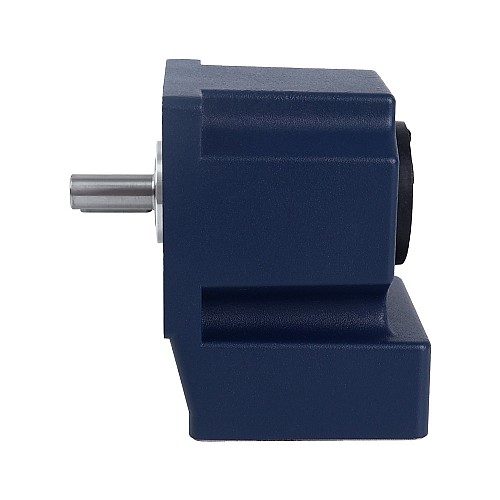

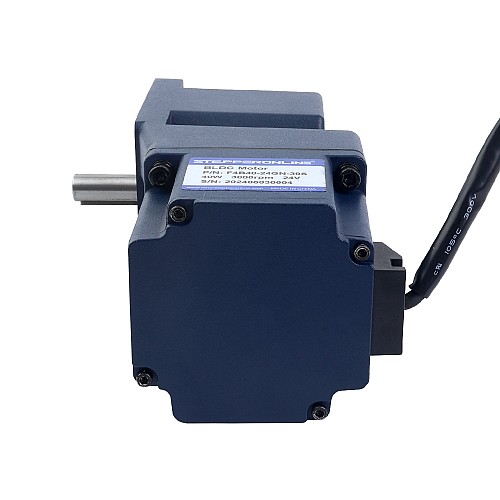

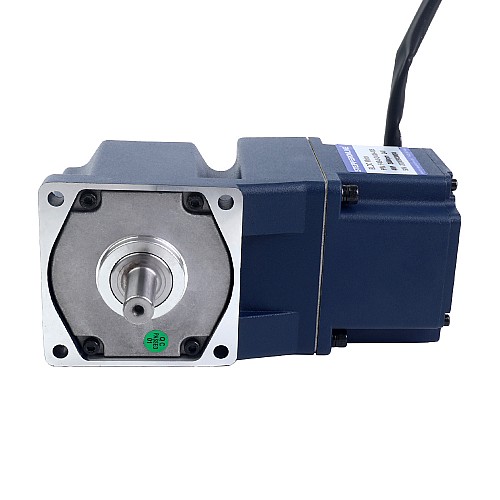

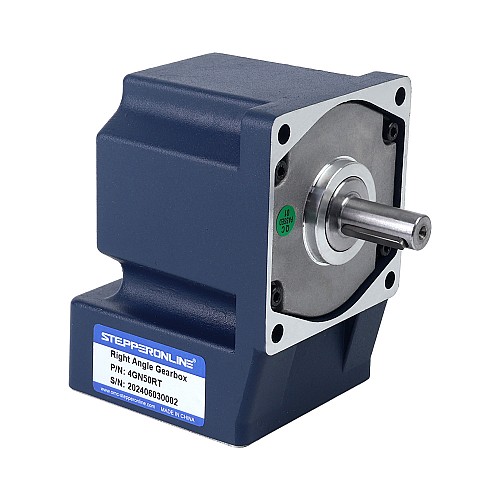

This is a 24V 40W brushless DC gear motor with a flange of 80x80mm. The built-in 50:1 keyway shaft right angle gearbox brings speed and torque to 60rpm and 4.59Nm(650.34oz.in). The right-angle gearbox's advantages of efficient transmission, strong load-bearing capacity, ability to change transmission direction and long life make this motor widely used in industrial production automation, logistics packaging equipment, medical equipment, mechanical equipment, photography equipment and other fields.

The recommended BLDC driver to match this motor is BLD-305S.

Electrical Specifications

P/N: F4B40-24GN-30S/4GN50RT
Phase: 3
Poles: 5
Rated Current: 2.50A
Rated Voltage: 24V
Rated Speed: 60rpm
Rated Torque: 4.59Nm(650.34oz.in)
Rated Power: 40W
Insulation Class: E 120°C[248°F]
Insulation Resistance: 50MΩ Min @500V
Sensor: Hall Sensor
Life: More than 5000 hours

Physical Specifications

Frame Size: 80x80mm
Body Length: 173mm
Gearbox Type: Right Angle Gearbox
Gearbox Ratio: 50:1
Shaft Type: Keyway
Shaft Diameter: Φ12mm
Shaft Length: 32mm
Bearing: Deep Groove Ball

Connection

1	2	3	4	5	6	7	8
U	W	Hb	Ha	V	-	Hc	+
Yellow(Thick)	Blue(Thick)	Green	Yellow	Green(Thick)	Black	Blue	Red

Product Type
Product Type	Geared BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	2.50
Rated Power(W)	40
Rated Speed(rpm)	60
Rated Torque(Nm)	4.59
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	173
Frame Size(mm)	80 x 80
Gear Ratio(xx:1)	50
Gearbox Type	Right Angle Gearbox
Output Shaft Type	Keyway
Shaft Diameter(mm)	12
Shaft Length(mm)	32
With Gearbox	Yes
