LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 810mm for Servo Motor

0 reviews - Write a review

C$388.91

5 + C$377.55

10 + C$366.85

50 + C$356.72

100 + C$347.15

In Stock: 10000
Model: LK86-60DL10S3-810
Gross Weight: 14.30kg

Available Options

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

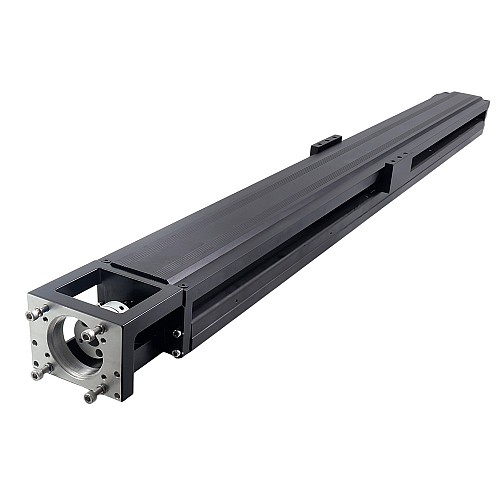

This LK86 series ball screw driven dustproof linear actuator offers a maximum horizontal payload of 40kg(88.18lb) and maximum vertical payload of 12kg(26.46lb), a stroke length of 810mm(2.66ft) and maximum speed of 500mm/s(1.64ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LK series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

Part Number: LK86-60DL10S3-810
Screw Type: Ball Screw
Position Accuracy: ± 0.01mm
Ball Screw Lead: 10mm(0.033ft)
Maximum Speed: 500mm/s(1.64ft/s)
Maximum Horizontal Payload: 40kg(88.18lb)
Maximum Vertical Payload: 12kg(26.46lb)
Rated Thrust: 694N
Sensor Type: NPN
Number of Sensors: 3
Ball Screw Grade: C7
Ball Screw Diameter: Φ15mm
Motor Frame: 60mm Servo Motor(400W)
Stroke Lengths: 810mm(2.66ft)
Input Shaft Length: 30mm
Input Shaft Diameter: 14mm

Adapting Motors:

1. AC Servo Motors

RS Series: A6-RS400H2A1-M17 and A6-RS400H2B1-M17(with brake)
EC Series: A6-EC400H2A1-M17 and A6-EC400H2B1-M17(with brake)
PN Series: A6-PN400H2A1-M17 and A6-PN400H2B1-M17(with brake)

2. DC Servo Motors

RS Series: DSY-RS400L2A2-M17S and DSY-RS400L2B2-M17S(with brake)
C Series: DSY-C400L2A2-M17S and DSY-C400L2B2-M17S(with brake)

Physical Specification
Input Shaft Diameter(mm)	14
Input Shaft Length(mm)	30
Inventory Method	Dedicated Inventory
Lead(mm/ft)	10/0.033
Linear Motor Type	Steel Body
Max. Horizontal Payload(kg/lb)	40/88.18
Max. Speed(ft/s)	1.64
Max. Speed(mm/s)	500
Max. Vertical Payload(kg/lb)	12/26.46
Motor Mounting Flange	60mm Servo Motor
Motor Mounting Position	Direct Connect
Rated Thrust(N)	694
Stroke Length(mm/ft)	810/2.66
Transmission Method	Ball Screw Driven
