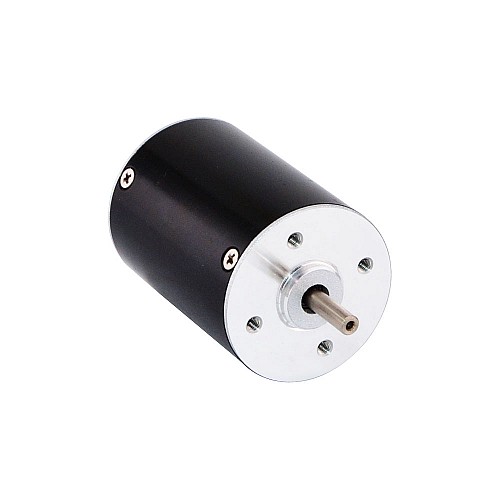

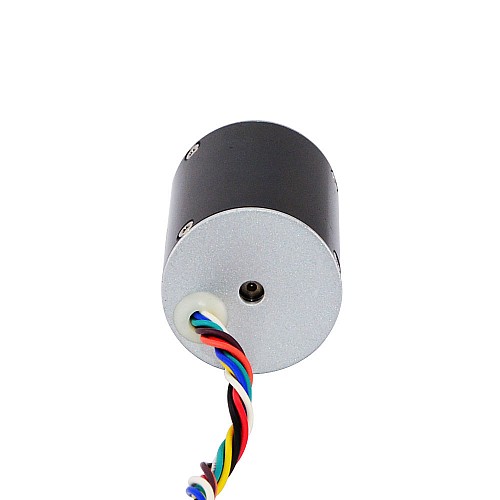

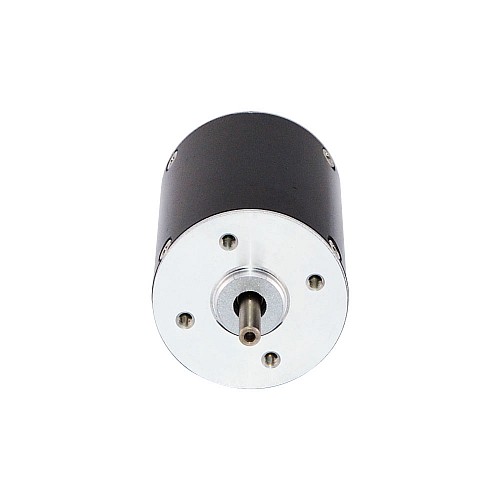

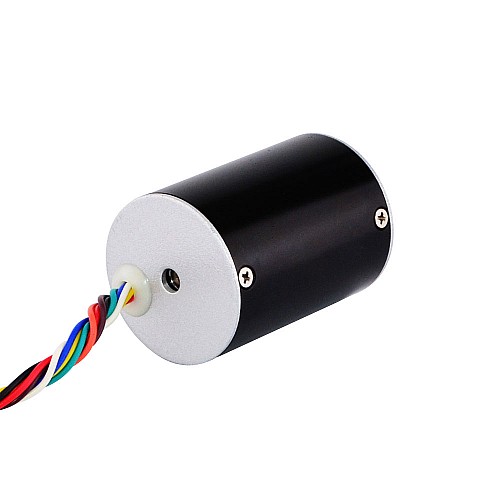

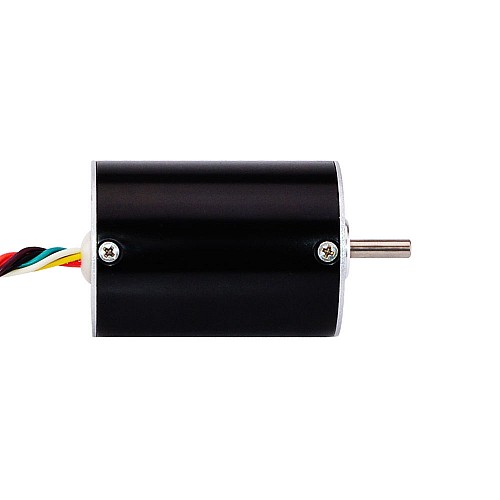

24V 5000RPM 0.029Nm 15W 0.98A Round Ф36x50mm Brushless DC Motor

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 36BLR50-24-01
Gross Weight: 0.25kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Electrical Specification

Manufacturer Part Number: 36BLR50-24-01
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Speed: 5000±10%RPM
Noload Speed: 7400RPM
Rated Torque: 0.029Nm(4.11oz.in)
Rated Current: 0.98±10%A
Noload Current: 0.18A
Rated Power: 15W
Insulation Class: Class B
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

Frame Size: Φ36mm
Body Length: 50.2mm
Shaft Diameter: Φ4mm
Shaft Length: 15mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Sensor: Hall Sensor

Connection

U	V	W	+5V	GND	A	B	C
ORG	GRN	BRW	RED	BLK	YEL	WHT	BLU

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 36BLR65-24-01.

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	0.98
Rated Power(W)	15
Rated Speed(rpm)	5000
Rated Torque(Nm)	0.029
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	50.2
Frame Size(mm)	Φ36
Inventory Method	Dedicated Inventory
IP Rating	20
Output Shaft Type	O
Shaft Diameter(mm)	4
Shaft Length(mm)	15
With Gearbox	No
