60BLS130-310-01
Rated Voltage(V)310
Rated Speed(rpm)3000
Rated Torque(Nm)1.27
Frame Size(mm)60 x 60
Question

Pre-order: A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Downloads

Same series
ModelRated Voltage(V)Rated Speed(rpm)Rated Torque(Nm)Frame Size(mm)PriceStock
36BLR65-24-01 Discontinued2430000.064⌀36—
42BLR43-24-012420000.062⌀42C$28.81Backorder
42BLS40-24-012440000.06342 x 42C$24.88In stock
42BLS60-24-012440000.12542 x 42C$31.08In stock
42BSA46-24-012430000.08Nema 17 (42 x 42)C$23.04In stock
42BSA62-24-012430000.16Nema 17 (42 x 42)C$25.92In stock
42BSA62-36-013630000.16Nema 17 (42 x 42)C$25.92In stock
42BSA78-24-012430000.24Nema 17 (42 x 42)C$34.56In stock
42BSA78-48-014830000.24Nema 17 (42 x 42)C$34.56In stock
42BSB101-24-012430000.25Nema 17 (42 x 42)C$31.68In stock
42BSB101-48-014830000.25Nema 17 (42 x 42)C$31.68In stock
42BSB41-24-012430000.063Nema 17 (42 x 42)C$20.16In stock
42BSB61-24-012430000.125Nema 17 (42 x 42)C$23.04In stock
42BSB61-48-014830000.125Nema 17 (42 x 42)C$23.04In stock
42BSB81-24-012430000.19Nema 17 (42 x 42)C$28.80In stock
42BSB81-48-014830000.19Nema 17 (42 x 42)C$28.80In stock
42BYA43-24-012430000.04⌀42C$21.60In stock
42BYA51-24-012430000.08⌀42C$24.48In stock
42BYA73-24-012430000.16⌀42C$34.56In stock
57BLR110-36-013640000.44Nema 23 (57 x 57)C$52.37In stock
57BLR50-24-012435000.23Nema 23 (57 x 57)C$32.20In stock
57BLR50-36-013640000.11Nema 23 (57 x 57)C$32.20In stock
57BLR70-24-022435000.47Nema 23 (57 x 57)C$45.76In stock
57BLR70-36-013643000.22Nema 23 (57 x 57)C$37.29In stock
57BLY54-24-012440000.16⌀57C$27.12In stock
57BSA100-36-013630000.6Nema 23 (57 x 57)C$63.36In stock
57BSA100-48-014830000.6Nema 23 (57 x 57)C$63.36In stock
57BSA58-24-012430000.2Nema 23 (57 x 57)C$31.68In stock
57BSA79-36-013630000.4Nema 23 (57 x 57)C$46.08In stock
57BSD116-36-013630000.6Nema 23 (57 x 57)C$41.76In stock
View all in category

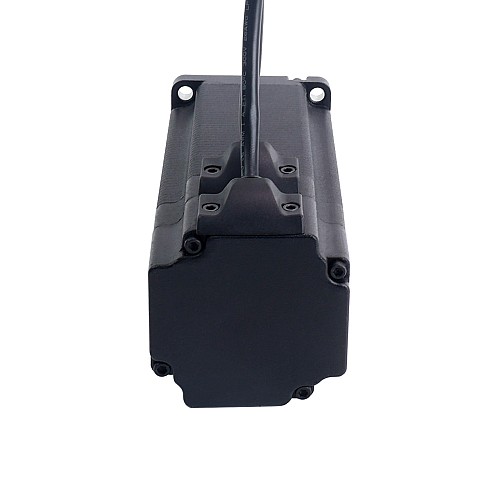

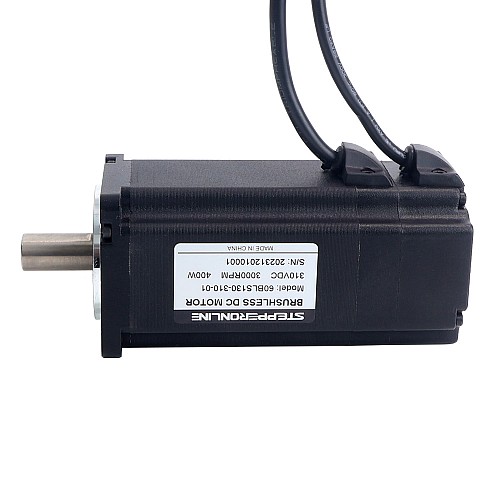

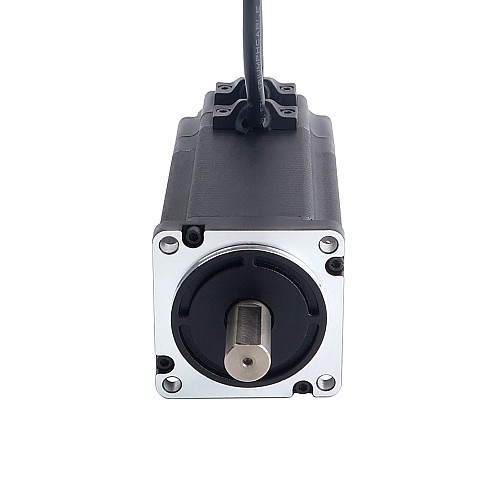

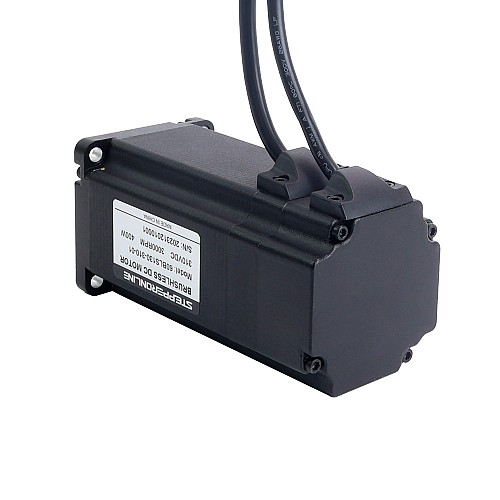

310V 3000RPM 1.27Nm 400W 1.8A Square 60x60x131mm Brushless DC Motor
This high-voltage brushless DC motor is made of high-quality materials and has a sturdy construction... Read More
from
C$91.93
5 or more: C$89.08
10 or more: C$86.40
50 or more: C$83.88
100 or more: C$81.50

Select a country to see live inventory

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

This high-voltage brushless DC motor is made of high-quality materials and has a sturdy construction. High-voltage version of brushless DC delivers efficient performance and consistent torque output.

Electrical Specification

  • Manufacturer Part Number: 60BLS130-310-01
  • Phase: 3
  • Poles: 8
  • Rated Power: 400W
  • Rated Voltage: 310VDC
  • Rated Speed: 3000±10%RPM
  • Rated Current: 1.8±10%A
  • Rated Torque: 1.27Nm(179.85oz.in)
  • Insulation Class: B 130°C[266°F]
  • Resistance/phase: 18.87±10%Ohms
  • Inductance/phase: 25.6±20%mH

Physical Specification

  • Frame Size: 60 x 60mm
  • Body Length: 131mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 30mm
  • D-cut Length: 25mm
  • Number of Leads: 9
  • Lead Length: 1000mm
  • Weight: 1.99kg

Connection

Motor
Hall
U
V
W
PE
+5V
GND
Hall A
Hall B
Hall C
Yellow
Green
Blue
Yellow/Green
Red
Black
Yellow
Green
Blue
Product Type
Product Type BLDC Motor
Electrical Specification
No. of Phase 3
Rated Current(A) 1.8
Rated Power(W) 400
Rated Speed(rpm) 3000
Rated Torque(Nm) 1.27
Rated Voltage(V) 310
Physical Specification
Body Length(mm) 131
Frame Size(mm) 60 x 60
IP Rating 20
Output Shaft Type D
Shaft Diameter(mm) 14
Shaft Length(mm) 30
With Gearbox No
