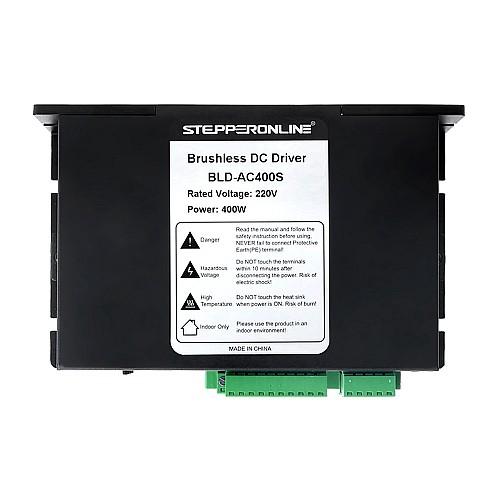

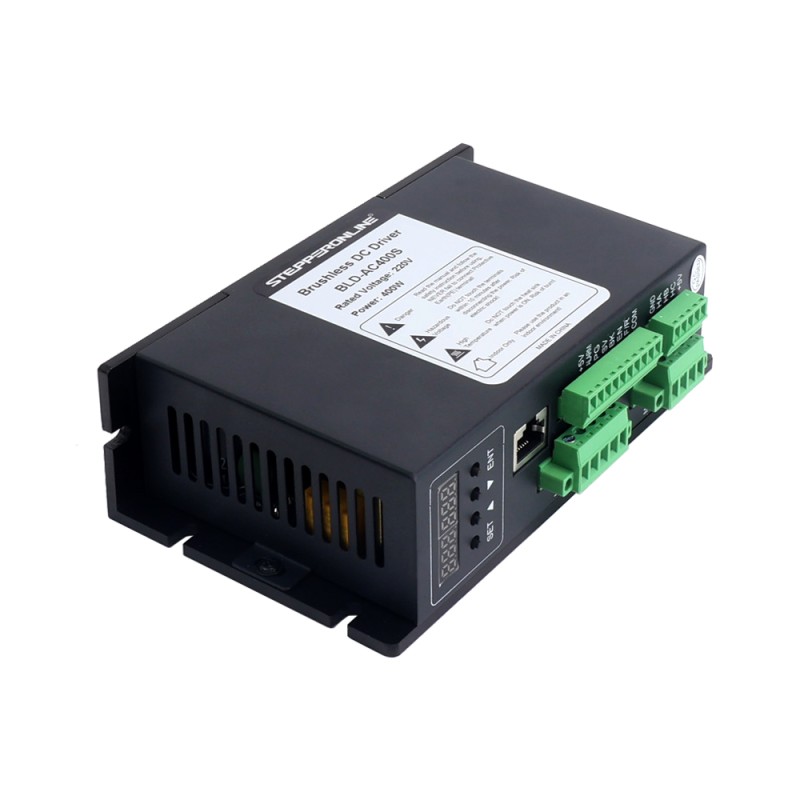

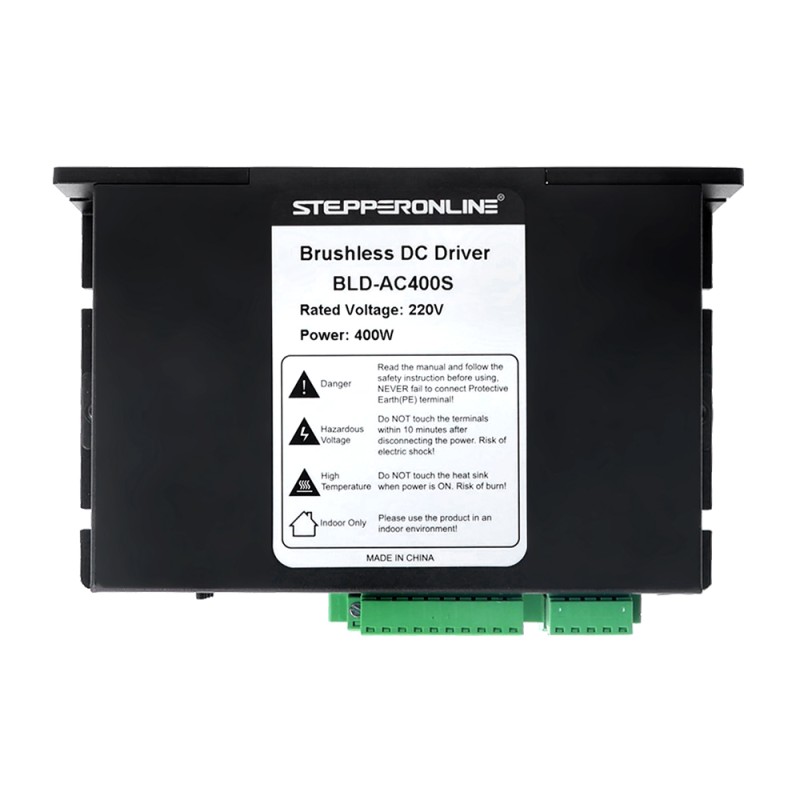

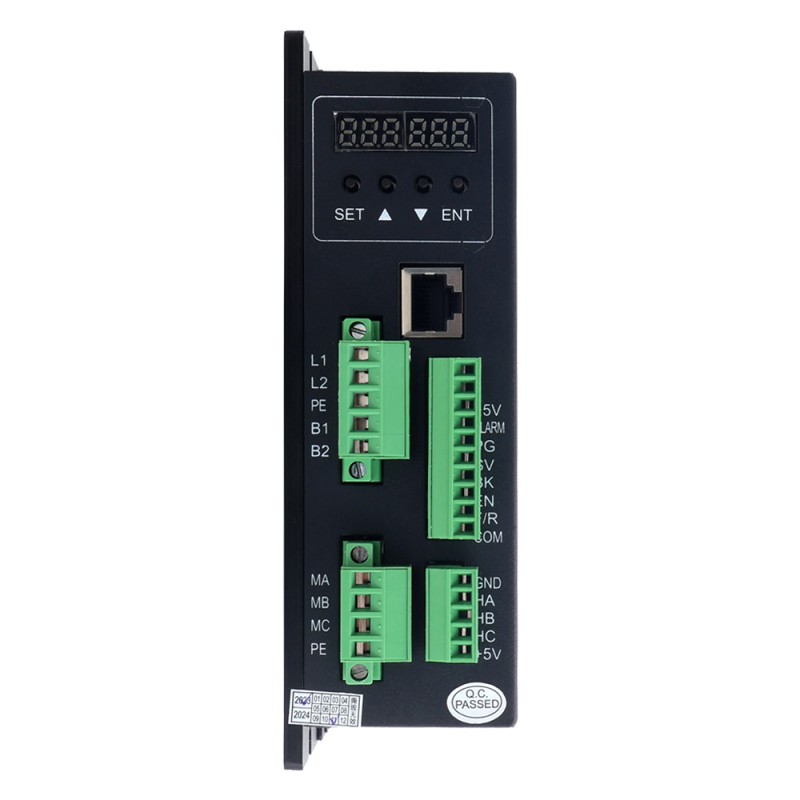

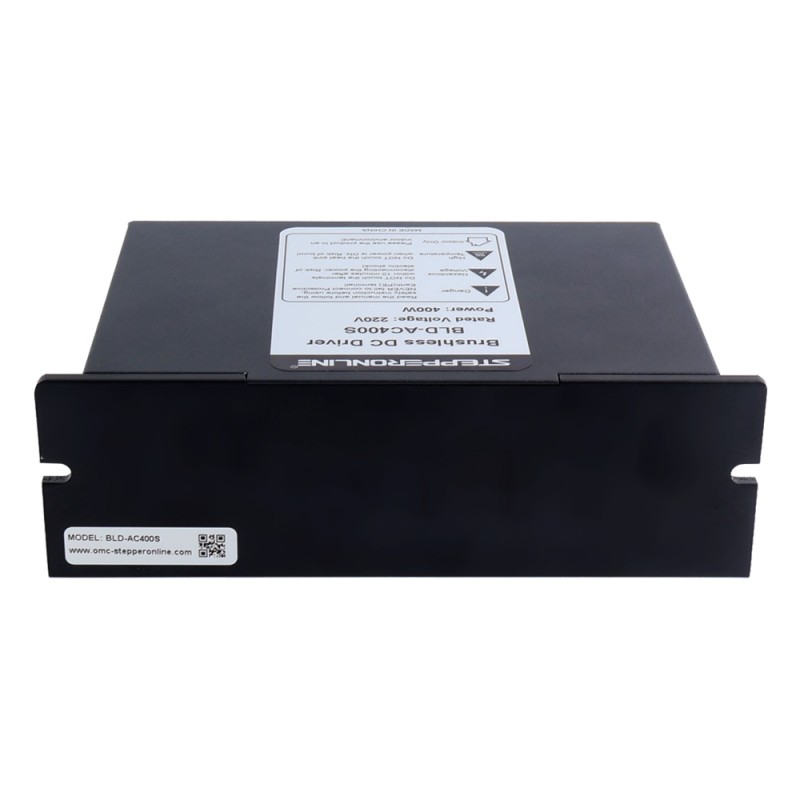

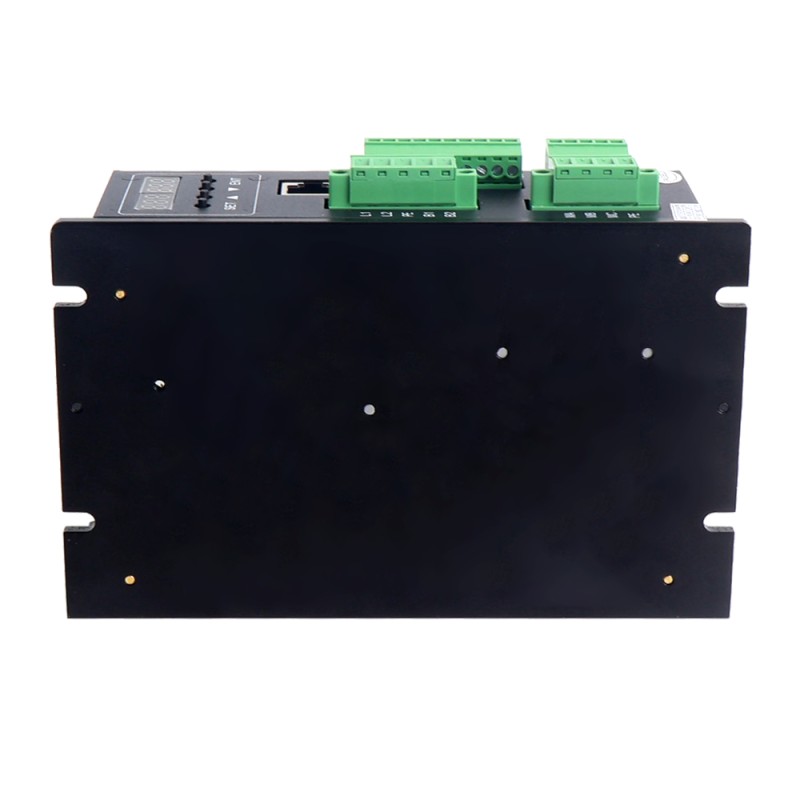

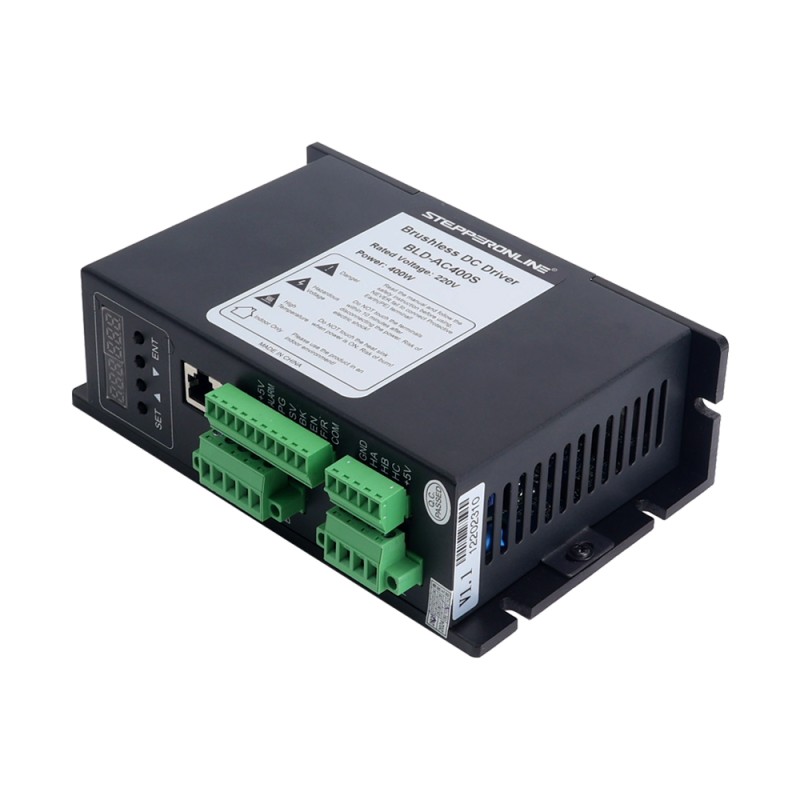

Name: Digital Brushless DC Motor Driver 110/220VAC Max 3.0A 400W
Brand: STEPPERONLINE
SKU: BLD-AC400S
Price: 107.08 CAD
Availability: PreOrder

Digital Brushless DC Motor Driver 85V-265VAC Max 3.0A 400W - BLD-AC400S | StepperOnline CA

Pre-order

BLD-AC400S

Product TypeBrushless DC Driver

Control ModesAnalog Voltage, RS-485

Power(W)200W(110VAC), 400W(220VAC)

Question

Downloads

BLD-AC400S_manual.pdfPDF · 366.46KB

Same series

Model	Product Type		Control Modes	Power(W)	Price	Stock
BLD-305S	Brushless DC Driver	—	Analog Voltage, RS-485	120W(24VDC)	C$23.06	In stock
BLD-405S	Brushless DC Driver	—	Analog Voltage, RS-485	50W(12VDC), 100W(24VDC), 120W(36VDC)	C$30.51	In stock
BLD-510B	Brushless DC Driver	—	Analog Voltage, RS-485	120W(12VDC), 200W(24VDC), 200W(36VDC), 400W(48VDC)	C$28.80	In stock
BLD-510S	Brushless DC Driver	—	Analog Voltage, RS-485	120W(12VDC), 200W(24VDC), 200W(36VDC), 200W(48VDC)	C$40.67	In stock
BLD-515C	Brushless DC Driver	—	Analog Voltage, RS-485, CAN	150W(12VDC), 300W(24VDC), 360W(36VDC), 400W(48VDC)	C$81.36	In stock
BLD-530S	Brushless DC Driver	—	Analog Voltage, RS-485	300W(12VDC), 600W(24VDC), 600W(36VDC), 600W(48VDC)	C$108.47	In stock
BLD-550S	Brushless DC Driver	—	Analog Voltage, RS-485	600W(12VDC), 1500W(24VDC), 1500W(36VDC), 1500W(48VDC)	C$237.28	In stock

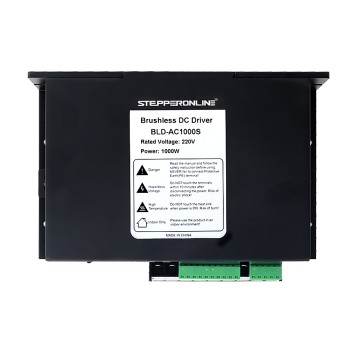

BLD-AC1000S	Brushless DC Driver	—	Analog Voltage, RS-485	500W(110VAC), 1000W(220VAC)	C$185.34	Backorder
BLD-AC400S	Brushless DC Driver	—	Analog Voltage, RS-485	200W(110VAC), 400W(220VAC)	C$107.08	Backorder

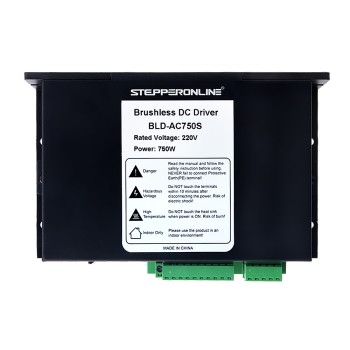

BLD-AC750S	Brushless DC Driver	—	Analog Voltage, RS-485	375W(110VAC), 750W(220VAC)	C$144.16	Backorder
DBLC-01	Brushless DC Controller	—	—	—	C$16.95	In stock

Digital Brushless DC Motor Driver 110/220VAC Max 3.0A 400W

This 110/220VAC 400W BLDC driver is a driver independently developed by STEPPERONLINE to cooperate w... Read More

0 reviews • Write a review

from

C$107.08

5 + C$102.67

10 + C$98.60

50 + C$94.84

100 + C$91.36

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

This 110/220VAC 400W BLDC driver is a driver independently developed by STEPPERONLINE to cooperate with the field of modern industrial automatic control. It mainly uses the latest high-performance digital logic chips dedicated to brushless motors and adopts PWM technology to make the motor run fast, have low vibration, low noise, good stability and high reliability. This driver is suitable for driving BLDC motors with rated power below 400W.

Features

Multiple speed adjustment methods
Compatible with Hall and non-Hall sensors
Support Modbus communication protocol, RS485 interface
The overload multiple is greater than 2, and the torque can always reach the maximum at low speed
Digital display panel, rich display content settings, and rich function settings
Build with over-voltage, under-voltage, over-current, over-temperature, illegal Hall signal and other error alarm functions

Electrical Specification

Parameters	BLD-AC400S
Input Voltage(VAC)	110	220
Continuous Output Current(A)	2.5
Rated Output Power(W)	200	400
Peak Current(A)	3.0

Operating Environment
Cooling Method	Radiator
Humidity	<85%(No Frosting)
Operating Temperature	0℃ - 45℃
Store Temperature	-20℃ - 85℃
Product Type
Product Type	Brushless DC Driver
Electrical Specification
Alarm Output	Yes
Continuous Output Current(A)	2.5(110VAC/220VAC)
Control Modes	Analog Voltage, RS-485
E-STOP	Yes
Max. Output Power(W)	400
Operating Voltage(V)	110AC, 220AC
Peak Current(A)	3.0
Power(W)	200W(110VAC), 400W(220VAC)
Speed Signal Output	Yes
