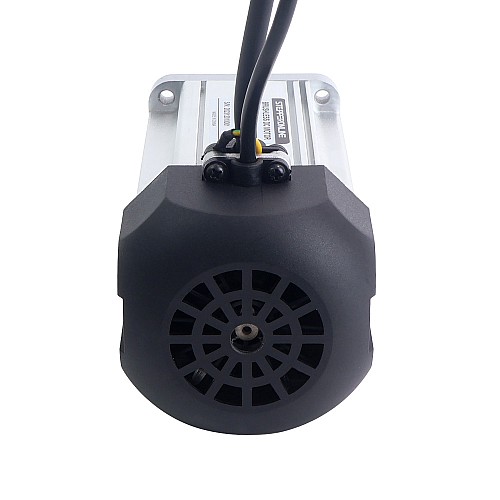

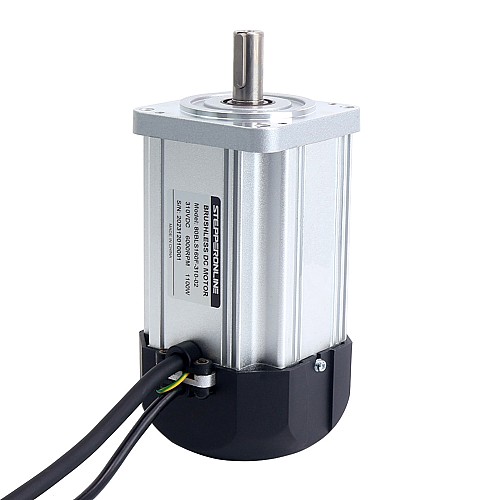

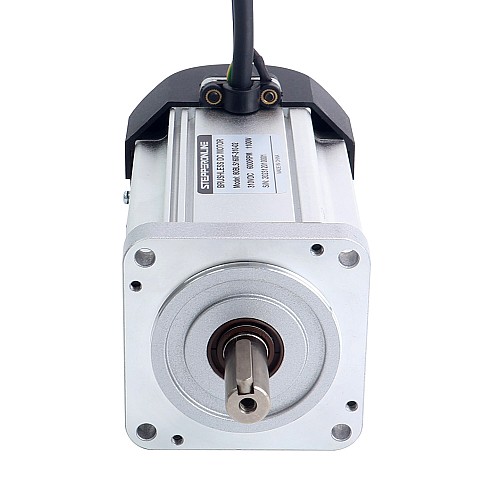

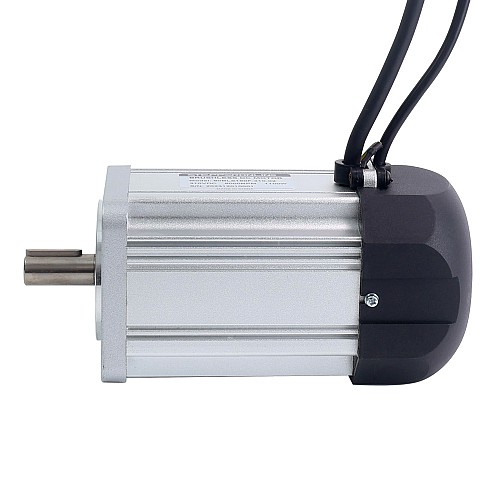

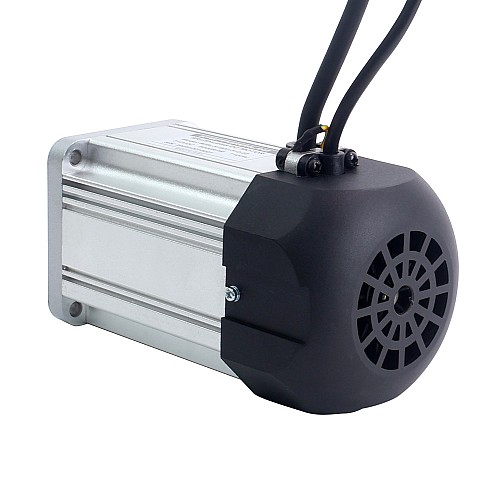

310V 6000RPM 1.75Nm 1100W 4.5A Square 80x80x159mm Brushless DC Motor w/ Radiator Fan

0 reviews - Write a review

C$167.08

5 + C$161.56

10 + C$156.39

50 + C$151.54

100 + C$146.98

In Stock: 10000
Model: 80BLS160F-310-02
Gross Weight: 3.06kg
Certificated: ISO, CE

Sold: 23

Click country for real-time stock

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This high-voltage brushless DC motor is made of high-quality materials and has a sturdy construction. High-voltage version of brushless DC delivers efficient performance and consistent torque output.

Electrical Specification

Manufacturer Part Number: 80BLS160F-310-02
Phase: 3
Poles: 4
Rated Power: 1100W
Rated Voltage: 310VDC
Rated Speed: 6000±10%RPM
Rated Current: 4.5±10%A
Rated Torque: 1.75Nm(247.82oz.in)
Insulation Class: B 130°C[266°F]
Resistance/phase: 4.2±10%Ohms
Inductance/phase: 12.0±20%mH

Physical Specification

Frame Size: 80 x 80mm
Body Length: 159mm
Shaft Diameter: Φ14mm
Shaft Length: 35mm
Key-way Length: 25mm
Number of Leads: 9
Lead Length: 1000mm
Weight: 2.8kg

Connection

Motor				Hall
U	V	W	PE	+5V	GND	Hall A	Hall B	Hall C
Yellow	Green	Blue	Yellow/Green	Red	Black	Yellow	Green	Blue

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	4.5
Rated Power(W)	1100
Rated Speed(rpm)	6000
Rated Torque(Nm)	1.75
Rated Voltage(V)	310
Physical Specification
Body Length(mm)	159
Frame Size(mm)	80 x 80
Inventory Method	Shared Inventory
IP Rating	20
Output Shaft Type	Keyway
Shaft Diameter(mm)	14
Shaft Length(mm)	35
With Gearbox	No
