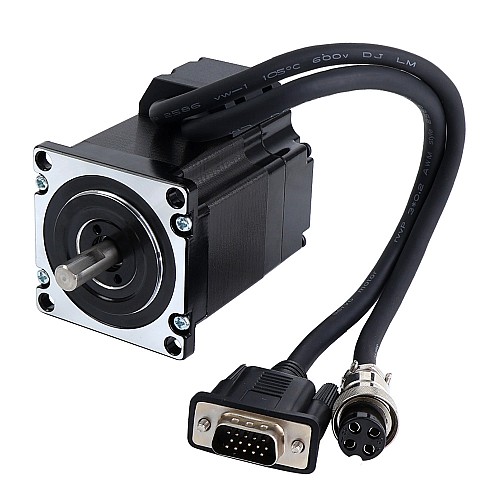

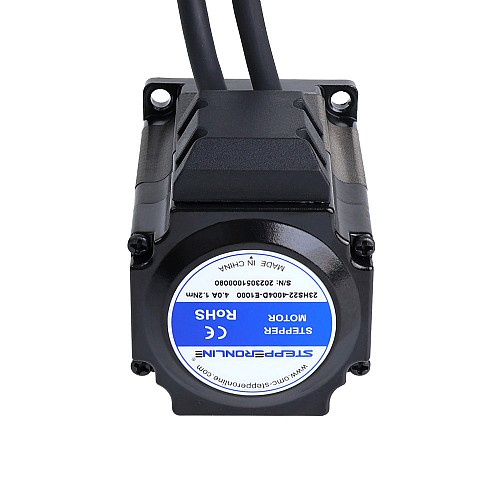

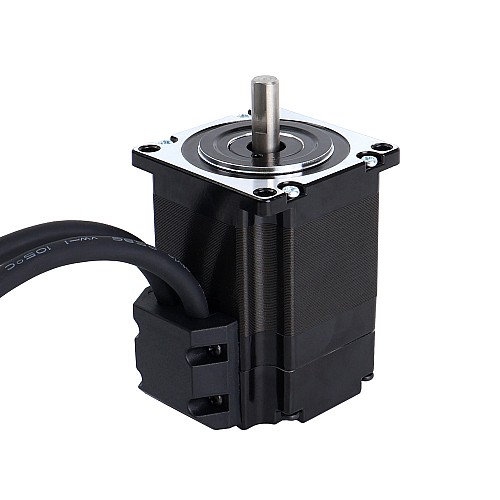

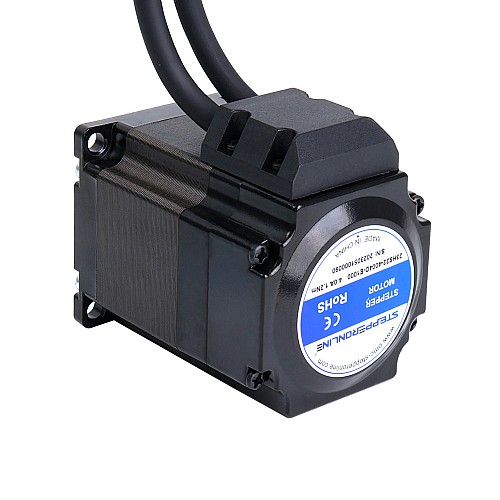

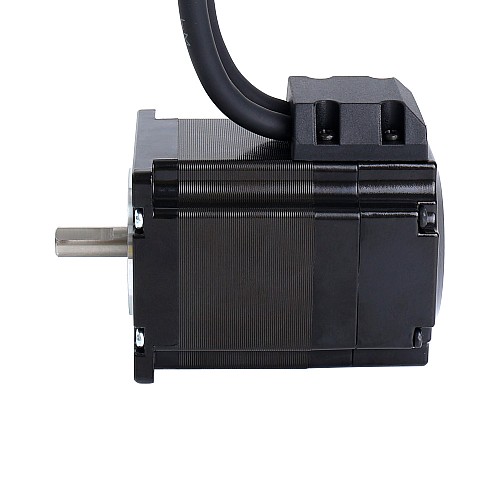

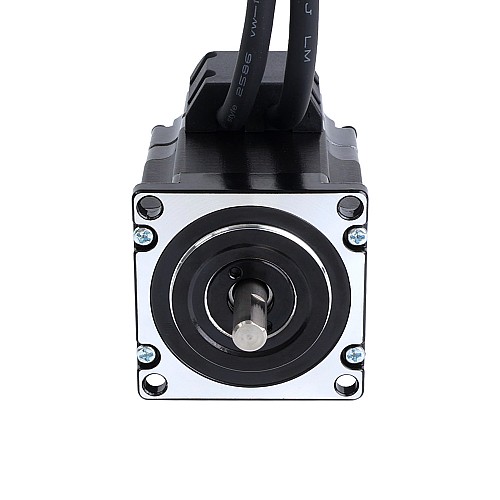

S Series Nema 23 Closed Loop Stepper Motor 1.2Nm(169.93oz.in) Encoder 1000PPR(4000CPR)

7 reviews - Write a review

€24.44

5 + €23.43

10 + €22.50

50 + €21.65

100 + €20.85

In Stock: 10000
Model: 23HS22-4004D-E1000
Gross Weight: 0.95kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 582

Click country for real-time stock

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 23HS22-4004D-E1000
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 1.2Nm(169.93oz.in)
Rated Current/phase: 4.0A
Phase Resistance: 0.5ohms± 10%
Inductance: 1.7mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 81mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-CUT Shaft Length: 15mm
Lead Length: 300mm
Weight: 0.83kg

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2 channels
Minimum Supply Voltage: 4.5V
Maximum Supply Voltage: 5V
Output Current: 25mA
Output High Voltage: 4.5V
Output Low Voltage: 4.2-4.3V
Output Frequency Max: 60kHZ

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	2	3	1	13	11	12
Encoder	VCC	EGND	EA+	EA-	EB+	EB-

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Closed Loop Stepper Motor
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	120
Holding Torque(oz.in)	169.93
Inductance(mH)	1.7
Output Circuit Type	Differential
Output Signal Channels	2
Phase Resistance(ohms)	0.5
Rated Current(A)	4.0
Physical Specification
Body Length(mm)	81
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Product Series	E
Shaft Diameter(mm)	8
Shaft Length(mm)	21
