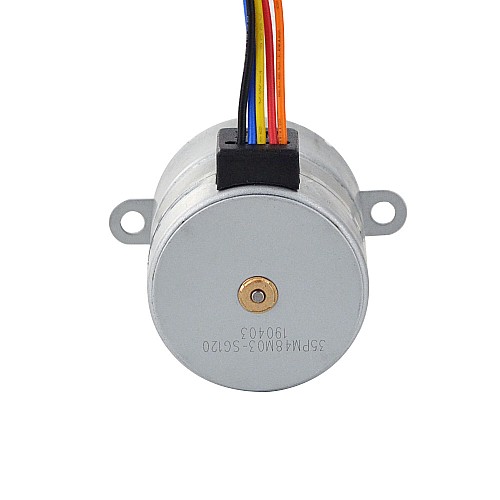

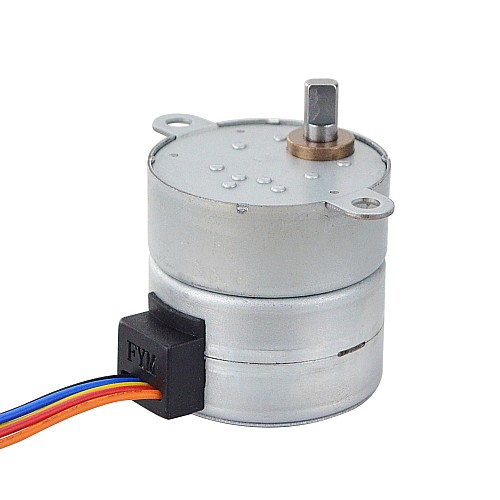

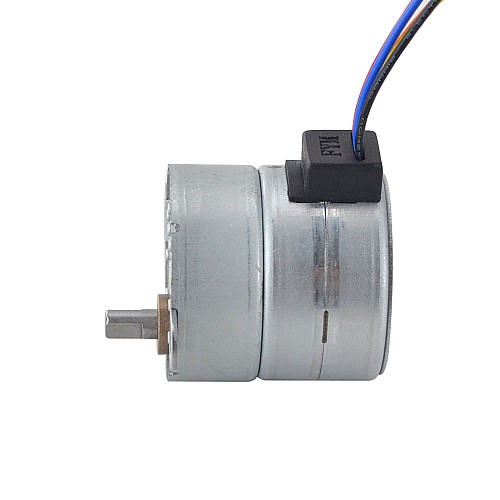

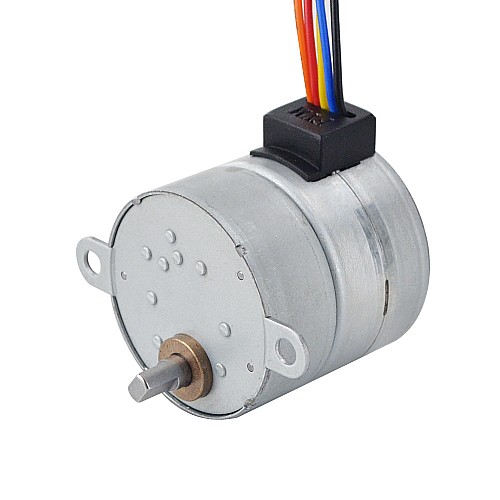

Φ35x35.2mm PM Stepper motor W/Gear Ratio 120:1 Spur gearbox

1 reviews - Write a review

C$16.83

5 + C$15.79

10 + C$14.89

50 + C$14.09

100 + C$13.36

In Stock: Pre-order
Model: 35PM48M03-SG120
Gross Weight: 0.18kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 50

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 35PM48M03-SG120
Motor Type: PM Stepper
Phase: 4
Step Angle: 0.0625deg
Rated Current/phase: 0.4A
Holding Torque: 98Ncm(138.807oz.in)
Phase Resistance: 30±7%ohms(25℃)
Insulation Class: B 130°C[266°F]
Inductance: 17mH±20%

Physical Specification

Frame Size: Φ35mm
Body Length: 35.2mm
Gearbox Length: 14.5mm
Shaft Diameter: Φ5mm
Shaft Length: 10mm
D-cut Length: 6mm
Gearbox Type: Spur
Gear Ratio: 120
Number of Leads: 5 with connector PH-6Y
Lead Length: 240mm
Weight: 120.9g

Connection

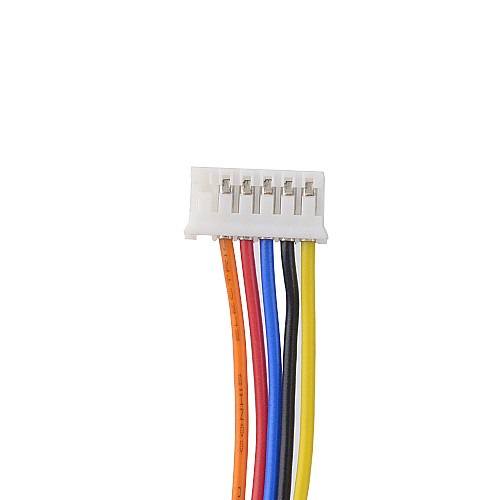

1	2	3	4	5
Yellow	Black	Blue	Red	Orange

Product Type
Product Type	PM Geared Stepper Motor
Electrical Specification
Holding Torque(mN.m)	980
Inductance(mH)	17
Phase Resistance(ohms)	30
Rated Current(A)	0.4
Step Angle(deg.)	0.0625
Physical Specification
Body Length(mm)	35.2
Frame Size(mm)	Φ35
Gear Ratio(xx:1)	120
Gearbox Type	Spur
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	240
No. of Lead	5
Shaft Diameter(mm)	5
Shaft Length(mm)	10
Weight(g)	120.9
