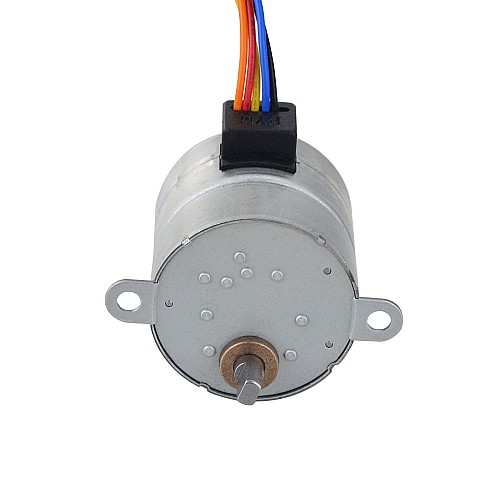

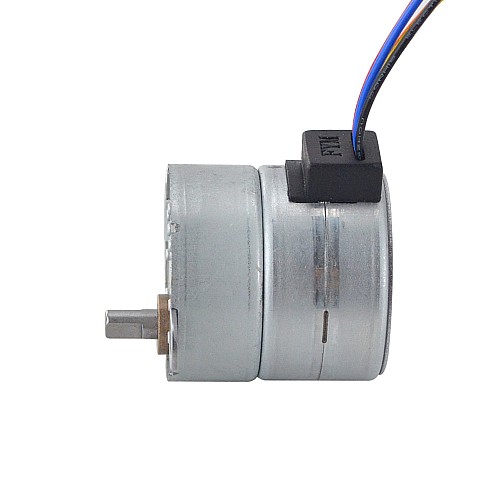

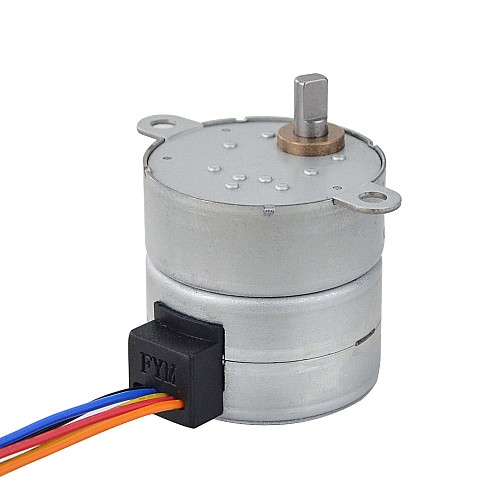

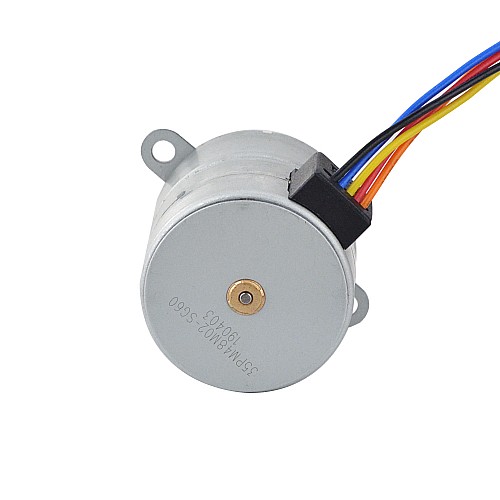

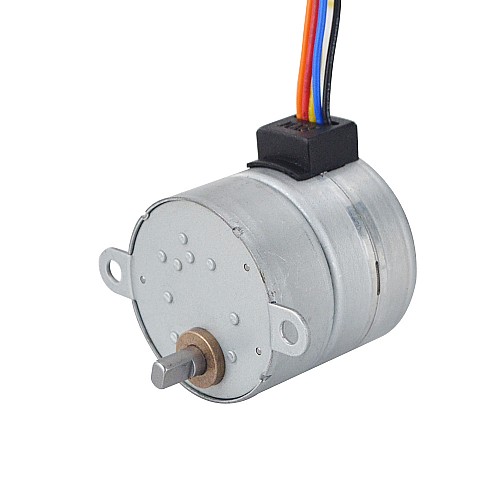

Φ35x35.2mm PM Stepper motor W/Gear Ratio 60:1 Spur gearbox

0 reviews - Write a review

C$16.81

5 + C$15.79

10 + C$14.89

50 + C$14.09

100 + C$13.36

In Stock: 10000
Model: 35PM48M02-SG60
Gross Weight: 0.18kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 35PM48M02-SG60
Motor Type: PM Stepper
Phase: 4
Step Angle: 0.125deg
Rated Current/phase: 0.4A
Holding Torque: 117.6Ncm(166.569oz.in)
Phase Resistance: 30±7%ohms(25℃)
Insulation Class: B 130°C[266°F]
Inductance: 17.1mH±20%

Physical Specification

Frame Size: Φ35mm
Body Length: 35.2mm
Gearbox Length: 14.5mm
Shaft Diameter: Φ5mm
Shaft Length: 10mm
D-cut Length: 6mm
Gearbox Type: Spur
Gear Ratio: 60
Number of Leads: 5 with connector PH-6Y
Lead Length: 240mm
Weight: 117g

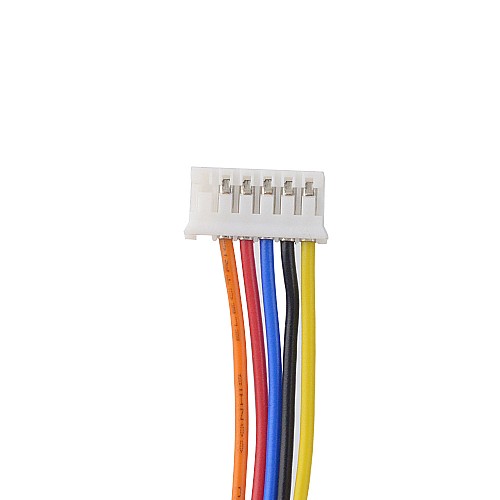

Connection

1	2	3	4	5
Yellow	Black	Blue	Red	Orange

Product Type
Product Type	PM Geared Stepper Motor
Electrical Specification
Holding Torque(mN.m)	1176
Inductance(mH)	17.1
Phase Resistance(ohms)	30
Rated Current(A)	0.4
Step Angle(deg.)	0.125
Physical Specification
Body Length(mm)	35.2
Frame Size(mm)	Φ35
Gear Ratio(xx:1)	60
Gearbox Type	spur
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	240
No. of Lead	5
Shaft Diameter(mm)	5
Shaft Length(mm)	10
Weight(g)	117
