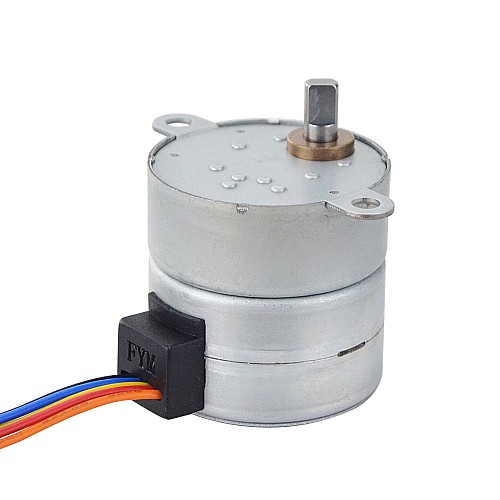

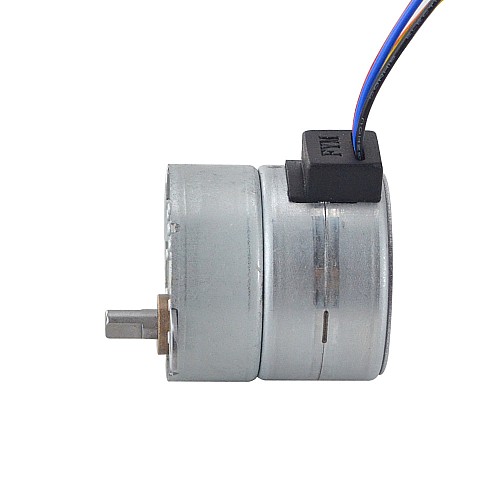

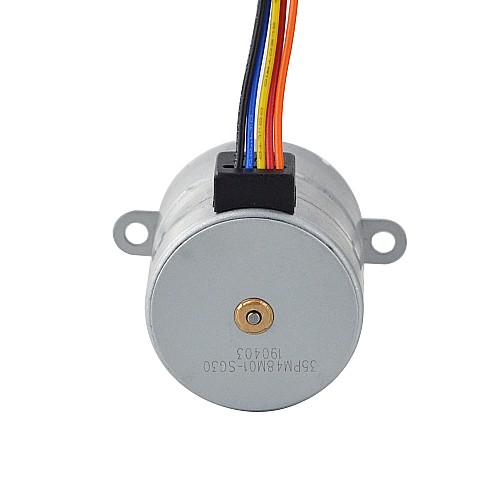

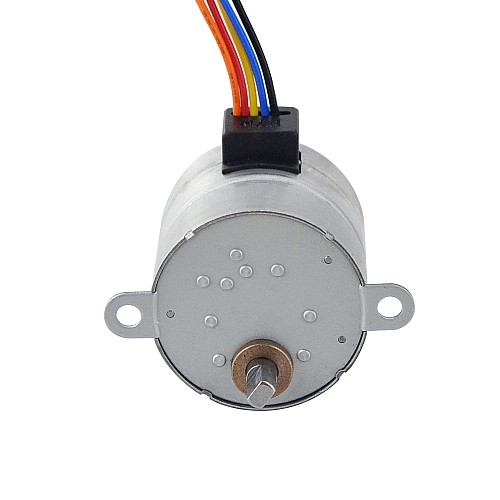

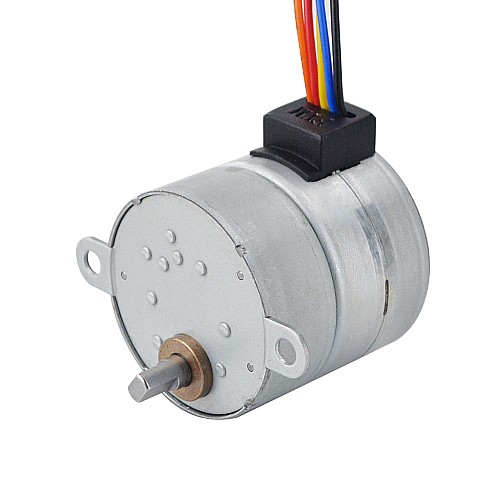

Φ35x35.2mm PM Stepper motor W/Gear Ratio 30:1 Spur gearbox

1 reviews - Write a review

C$16.81

5 + C$15.79

10 + C$14.89

50 + C$14.09

100 + C$13.36

In Stock: 10000
Model: 35PM48M01-SG30
Gross Weight: 0.19kg
Certificated: ISO, CE

Sold: 96

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 35PM48M01-SG30
Motor Type: PM Stepper
Phase: 4
Step Angle: 0.25deg
Rated Current/phase: 0.4A
Holding Torque: 117.6Ncm(166.569oz.in)
Phase Resistance: 30±7%ohms(25℃)
Insulation Class: B 130°C[266°F]
Inductance: 17.1mH±20%

Physical Specification

Frame Size: Φ35mm
Body Length: 35.2mm
Gearbox Length: 14.5mm
Shaft Diameter: Φ5mm
Shaft Length: 10mm
D-cut Length: 6mm
Gearbox Type: Spur
Gear Ratio: 30
Number of Leads: 5 with connector PH-6Y
Lead Length: 240mm
Weight: 115.8g

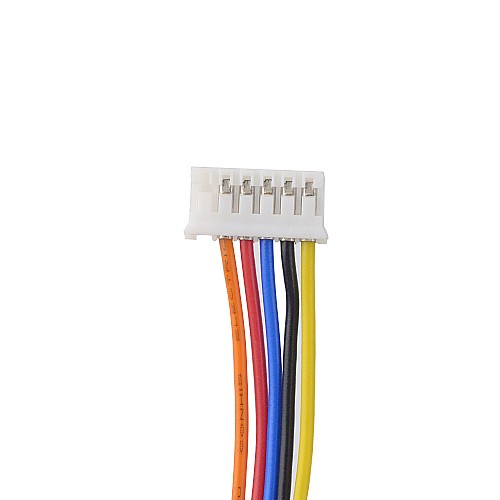

Connection

1	2	3	4	5
Yellow	Black	Blue	Red	Orange

Product Type
Product Type	PM Geared Stepper Motor
Electrical Specification
Holding Torque(mN.m)	1176
Inductance(mH)	17.1
Phase Resistance(ohms)	30
Rated Current(A)	0.4
Step Angle(deg.)	0.25
Physical Specification
Body Length(mm)	35.2
Frame Size(mm)	Φ35
Gear Ratio(xx:1)	30
Gearbox Type	spur
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	240
No. of Lead	5
Output Shaft Type	D
Shaft Diameter(mm)	5
Shaft Length(mm)	10
Weight(g)	115.8
