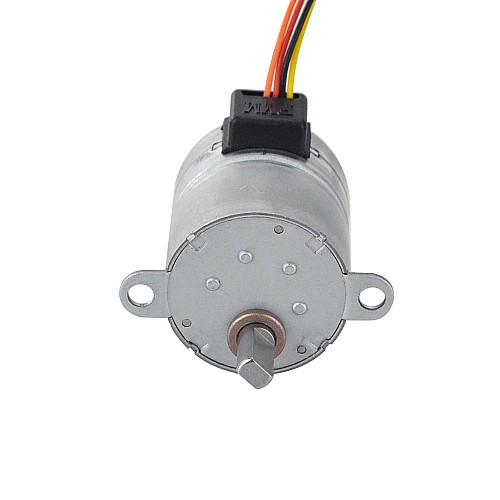

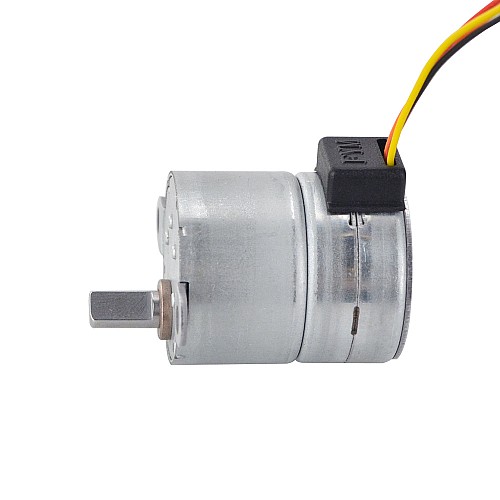

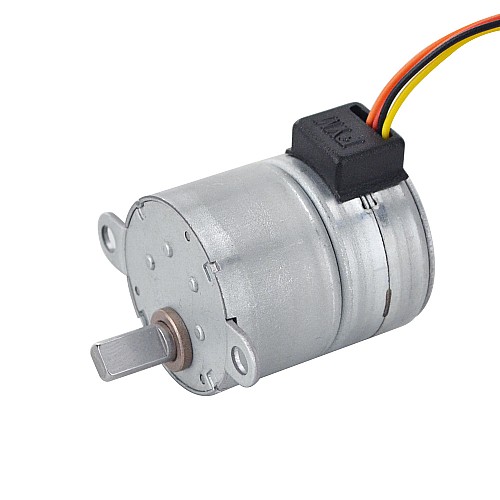

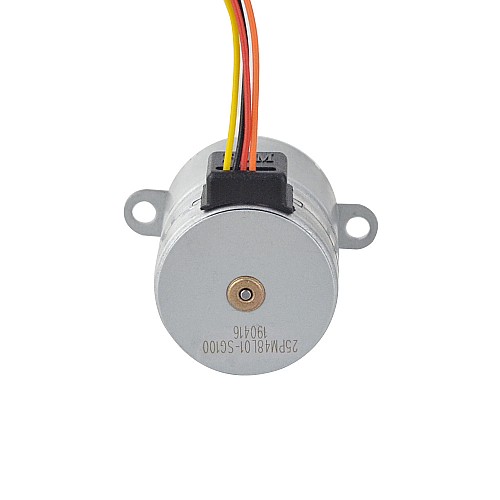

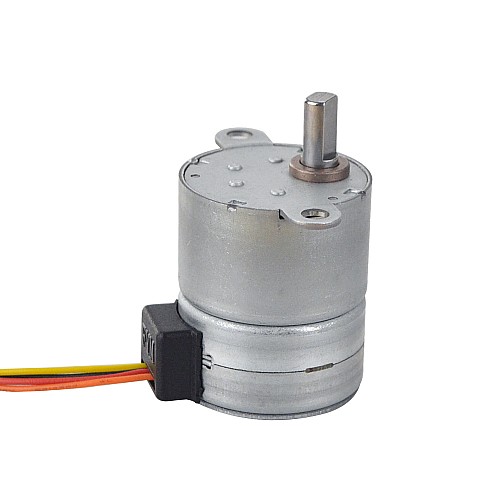

Φ25x30.5mm PM Stepper motor W/Gear Ratio 100:1 Spur gearbox

0 reviews - Write a review

C$16.81

5 + C$15.79

10 + C$14.89

50 + C$14.09

100 + C$13.36

In Stock: 10000
Model: 25PM48L01-SG100
Gross Weight: 0.10kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 25PM48L01-SG100
Motor Type: PM Stepper
Phase: 2
Step Angle: 0.075deg
Rated Current/phase: 0.3A
Holding Torque: 49Ncm(69.404oz.in)
Phase Resistance: 20±7%ohms(25℃)
Insulation Class: B 130°C[266°F]
Inductance: 10.6mH±20%

Physical Specification

Frame Size: Φ25mm
Body Length: 30.5mm
Gearbox Length: 16.3mm
Shaft Diameter: Φ5mm
Shaft Length: 10.4mm
Gearbox Type: Spur
Gear Ratio: 100

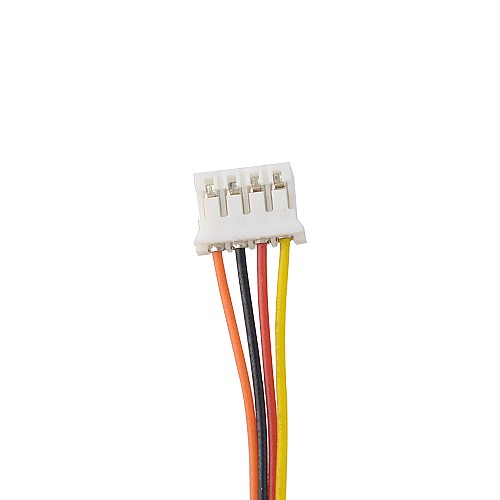

Number of Leads: 4 with connector PH-4Y
Lead Length: 200mm
Weight: 53.7g

Connection

A+	A-	B+	B-
Yellow	Red	Black	Orange

Product Type
Product Type	PM Geared Stepper Motor
Electrical Specification
Holding Torque(mN.m)	490
Inductance(mH)	10.6
Phase Resistance(ohms)	20
Rated Current(A)	0.3
Step Angle(deg.)	0.075
Physical Specification
Body Length(mm)	30.5
Frame Size(mm)	Φ25
Gear Ratio(xx:1)	100
Gearbox Type	spur
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	200
No. of Lead	4
Shaft Diameter(mm)	5
Shaft Length(mm)	10.4
Weight(g)	53.7
