4.3" 480x272px RS-485 Serial Port & USB 128MB/FLASH 128MB/Memory HMI Touch Screen LED Display with WiFi Module

Discontinued

4.3" 480x272px RS-485 Serial Port & USB 128MB/FLASH 128MB/Memory HMI Touch Screen LED Display with WiFi Module

0 reviews - Write a review

C$0.00

In Stock: 1
Model: HI3043ig-C(W)
Gross Weight: 1.30kg
Certificated: ISO

Sold: 2

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

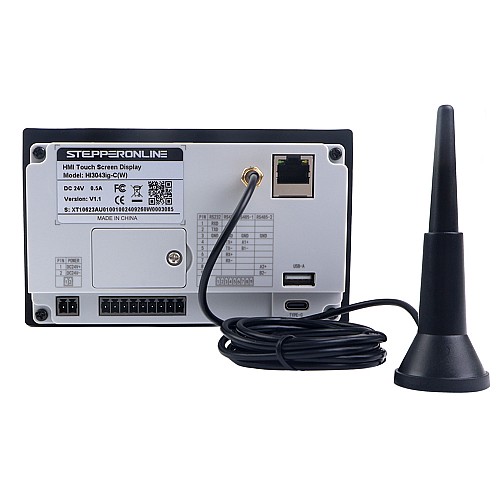

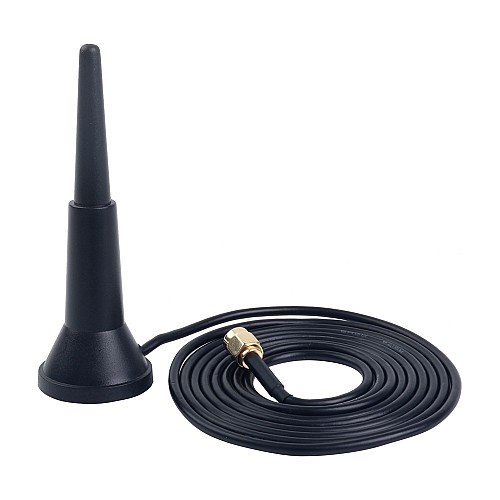

This high-end 4.3-inch HMI touch screen monitor features an LED screen with 480x272 pixel resolution and 300cd/m² brightness. The backlit LED display offers excellent visibility and has a service life of over 20,000 hours. This touch screen has USB 2.0 and two USB Type-C interfaces, and also has a WiFi module with WiFi antenna booster for more convenient debugging and control. The panel complies with IP65 flat panel installation standards and is ideal for various PLCs or smart controllers equipped with communication ports. Users can easily design and create programs using the included intuitive and powerful software.

Specifications

Part Number: HI3043ig-C(W)
Display Type: HMI Display
Processor: 4-core high-performance CPU
Storage: 128MB NAND FLASH + 128MB Memory
Operating Voltage: 24VDC
Display Resolution: 480x272px
Display Brightness: 300cd/m²
Display Backlight: LED
Display Size: 4.3"
Panel Cut-out: 131.0x78.0mm
Backlight Lifetime: 20,000 hours
USB Port: USB 2.0/USB TYPE-C Note: Two USB ports cannot be used simultaneously.
Ethernet: Yes
WiFi Enabled: Yes
I/O Port: Serial port(9): (RS-232, RS-422/RS-485, RS-485)

Downloads

Electrical Specification
Has Ethernet?	Yes
Has IIoT?	No
Operating Voltage(V)	24
WIFI Enabled	Yes
Physical Specification
Backlight Lifetime(h)	20000
Display Brightness(cd/m²)	300
Display Resolution(Pixels)	480x272
Display Size(inch)	4.3
Panel Cut-out(mm)	131.0x78.0
Processor	4-core high-performance CPU
Storage	128MB NAND FLASH + 128MB Memory
