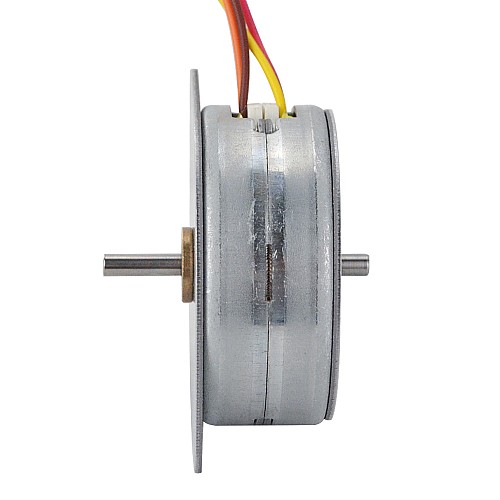

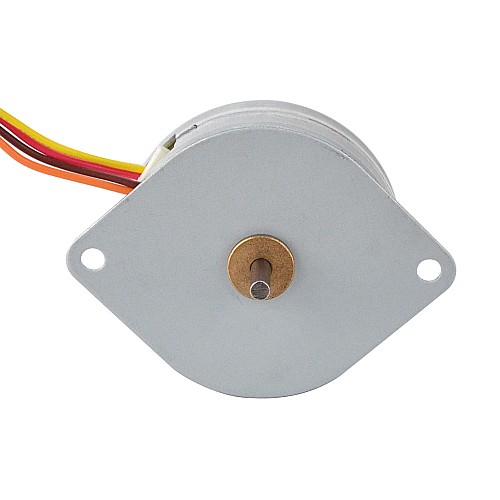

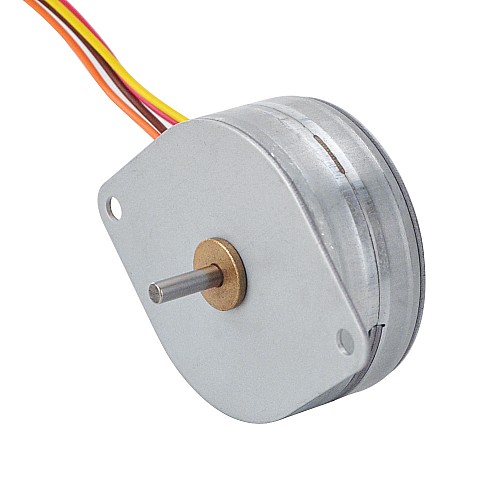

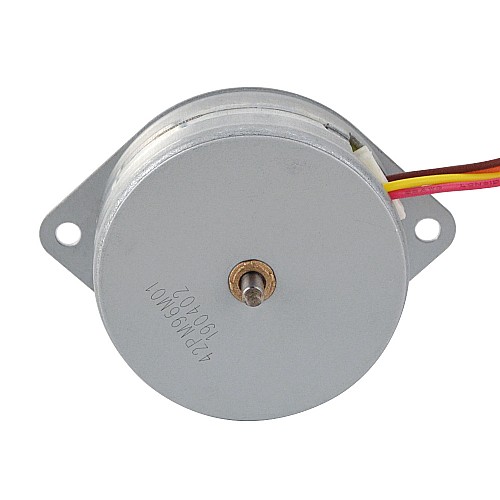

CN On Sale - Φ42x18mm PM Stepper motor 3.75deg 49mN.m(6.94oz.in) 0.42A 4 Wires

Φ42x18mm PM Stepper motor 3.75deg 49mN.m(6.94oz.in) 0.42A 4 Wires - 42PM96M01 | StepperOnline CA

-33 %

CN On Sale - Φ42x18mm PM Stepper motor 3.75deg 49mN.m(6.94oz.in) 0.42A 4 Wires

0 reviews - Write a review

C$11.38

C$7.62

In Stock: 10000
Model: CN-42PM96M01
Gross Weight: 0.18kg
Certificated: ISO, CE

Sold: 15

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 42PM96M01
Motor Type: PM Stepper
Phase: 2
Step Angle: 3.75deg
Rated Current/phase: 0.42A
Holding Torque: 49mN.m(6.94oz.in)
Detent Torque: 10.78mN.m(2.521oz.in)
Phase Resistance: 12±7%ohms(20℃)
Insulation Class: B 130°C[266°F]
Inductance: 12mH±20%(1KHz)
Rotor Inertia: Less than 9.6g.cm²
Life: 3000h MIN(20℃,200 pps)

Physical Specification

Frame Size: Φ42mm
Body Length: 18mm
Shaft Diameter: Φ3mm
Shaft Length: 12mm

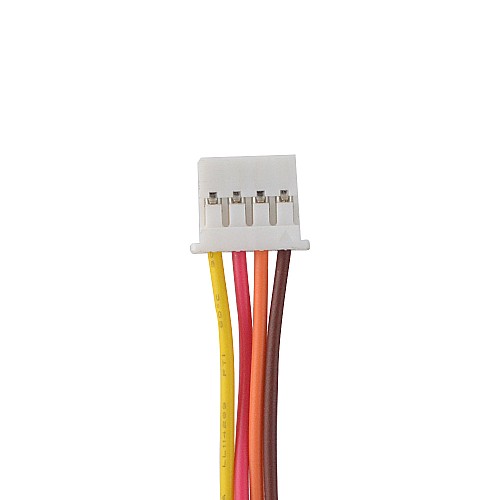

Number of Leads: 4 with connector PAP-04V-S
Lead Length: 85mm
Weight: 103.5g

Connection

A+	A-	B+	B-
Brown	Orange	Yellow	Red

Product Type
Product Type	PM Rotary Stepper Motor
Electrical Specification
Detent Torque(mN.m)	10.78
Detent Torque(oz.in)	2.521
Holding Torque(mN.m)	49
Holding Torque(oz.in)	6.94
Inductance(mH)	12
No. of Phase	2
Phase Resistance(ohms)	12
Rated Current(A)	0.42
Step Angle(deg.)	3.75
Physical Specification
Body Length(mm)	18
Frame Size(mm)	Φ42
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	85
No. of Lead	4
Shaft Diameter(mm)	3
Shaft Length(mm)	12
