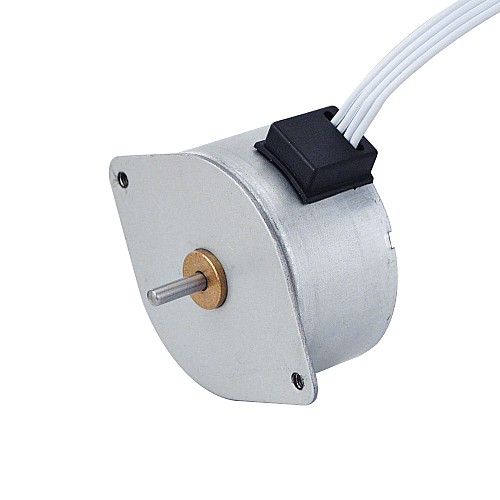

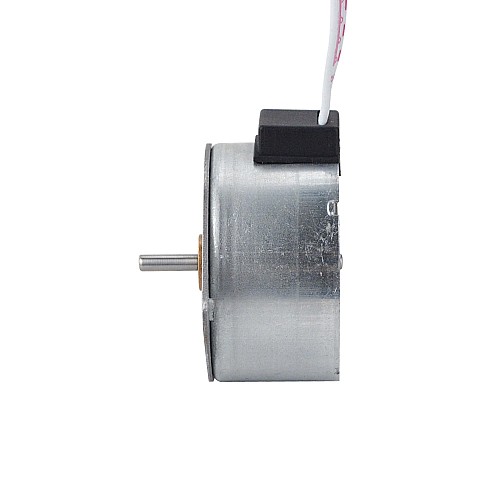

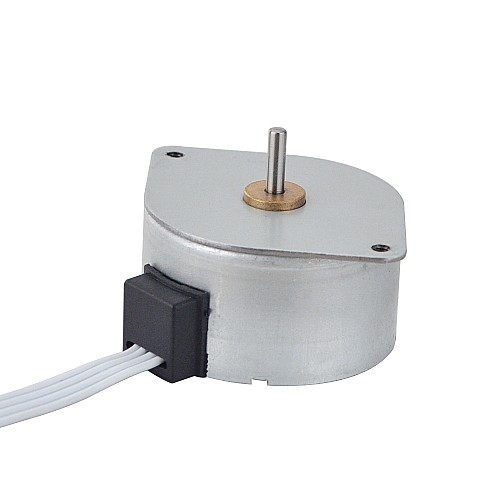

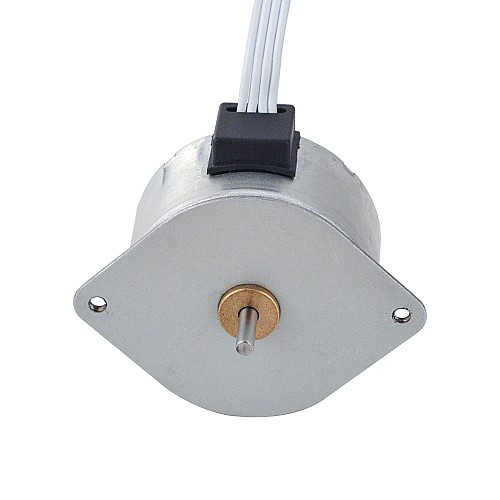

Φ42x23.5mm PM Stepper motor 7.5deg 68.6mN.m(9.717oz.in) 0.6A 4 Wires

0 reviews - Write a review

C$9.49

5 + C$8.81

10 + C$8.50

50 + C$8.21

100 + C$7.95

In Stock: 10000
Model: 42PM48L01
Gross Weight: 0.19kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 42PM48L01
Motor Type: PM Stepper
Phase: 2
Step Angle: 7.5deg
Rated Current/phase: 0.6A
Holding Torque: 68.6mN.m(9.717oz.in)
Detent Torque: 27.44mN.m(3.887oz.in)
Phase Resistance: 5.8±7%ohms(20℃)
Insulation Class: B 130°C[266°F]
Inductance: 9.5mH±20%(1KHz)
Rotor Inertia: Less than 10.5g.cm²
Life: 3000h MIN(20℃,100pps)

Physical Specification

Frame Size: Φ42mm
Body Length: 23.5mm
Shaft Diameter: Φ3mm
Shaft Length: 12mm

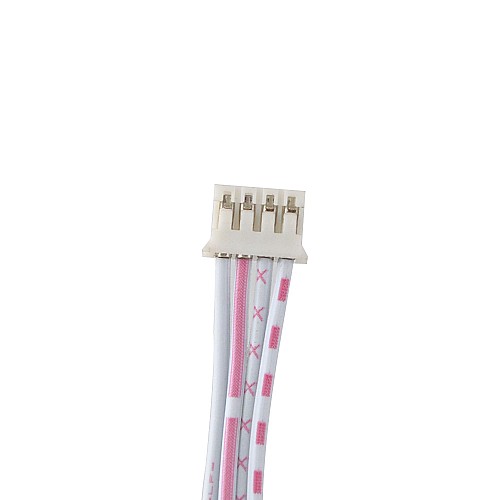

Number of Leads: 4 with connector PH2.0A-4Y
Lead Length: 80mm
Weight: 126.4g

Connection

A+	A-	B+	B-
4	2	3	1

Product Type
Product Type	PM Rotary Stepper Motor
Electrical Specification
Detent Torque(mN.m)	27.44
Detent Torque(oz.in)	3.887
Holding Torque(mN.m)	68.6
Holding Torque(oz.in)	9.717
Inductance(mH)	9.5
No. of Phase	2
Phase Resistance(ohms)	5.8
Rated Current(A)	0.6
Step Angle(deg.)	7.5
Physical Specification
Body Length(mm)	23.5
Frame Size(mm)	Φ42
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	80
No. of Lead	4
Shaft Diameter(mm)	3
Shaft Length(mm)	12
