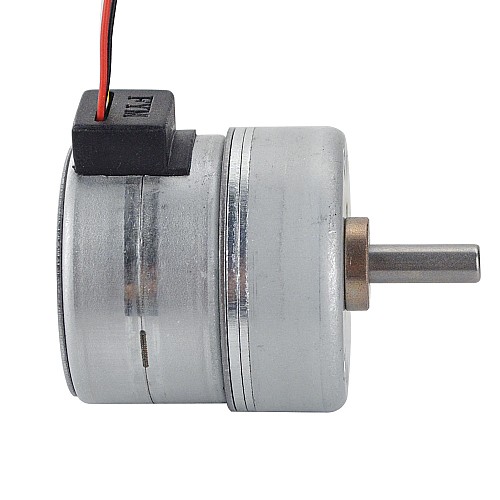

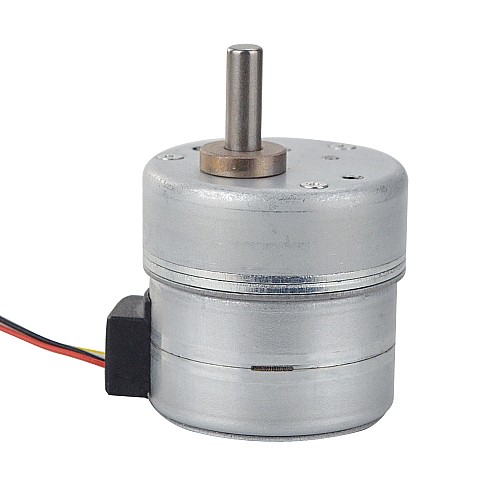

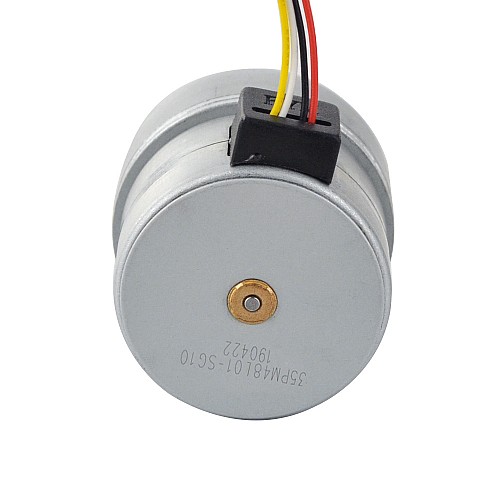

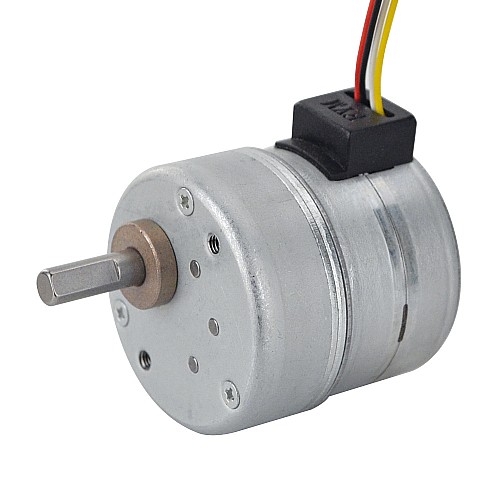

Φ35x36.2mm PM Stepper motor W/Gear Ratio 10.8:1 Spur gearbox

0 reviews - Write a review

C$16.81

5 + C$15.79

10 + C$14.89

50 + C$14.09

100 + C$13.36

In Stock: Pre-order
Model: 35PM48L01-SG10
Gross Weight: 0.25kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 50

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 35PM48L01-SG10
Motor Type: PM Stepper
Phase: 2
Step Angle: 0.694deg
Rated Current/phase: 0.24A
Holding Torque: 69.58Ncm(98.55oz.in)
Phase Resistance: 100±7%ohms(20℃)
Insulation Class: B 130°C[266°F]
Inductance: 110mH±20%

Physical Specification

Frame Size: Φ35mm
Body Length: 36.2mm
Gearbox Length: 15.2mm
Shaft Diameter: Φ5mm
Shaft Length: 17.1mm
D-cut Length: 10.1mm
Gearbox Type: Spur
Gear Ratio: 10.8
Number of Leads: 4 with connector Molex5264
Lead Length: 140mm
Weight: 139g

Connection

A+	A-	B+	B-
Yellow	Black	White	Red

Product Type
Product Type	PM Geared Stepper Motor
Electrical Specification
Holding Torque(mN.m)	695.8
Inductance(mH)	110
Phase Resistance(ohms)	100
Rated Current(A)	0.24
Step Angle(deg.)	0.694
Physical Specification
Body Length(mm)	36.2
Frame Size(mm)	Φ35
Gear Ratio(xx:1)	10.8
Gearbox Type	spur
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	140
No. of Lead	4
Shaft Diameter(mm)	5
Shaft Length(mm)	17.1
Weight(g)	139
