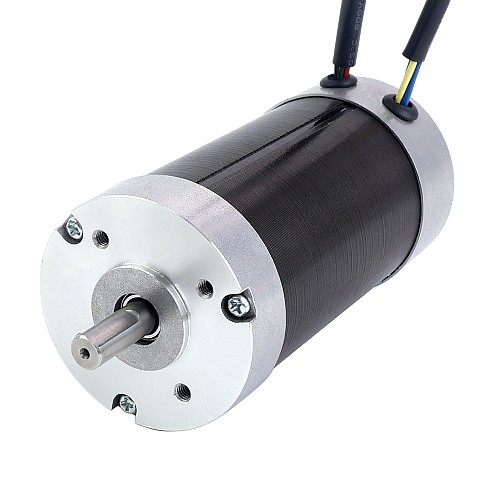

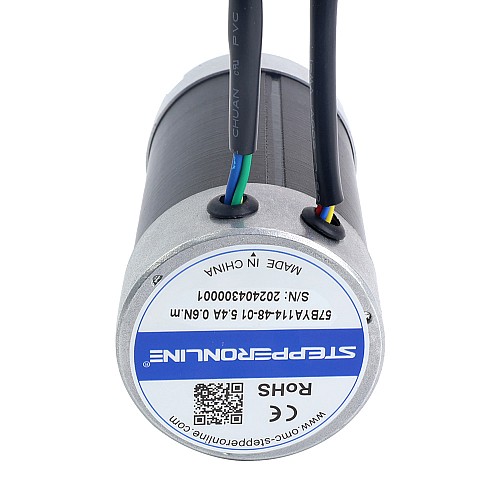

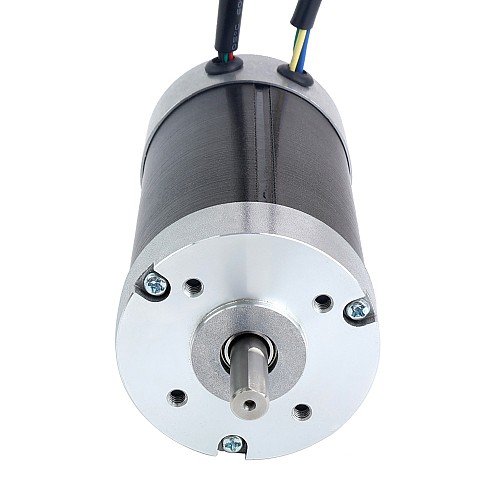

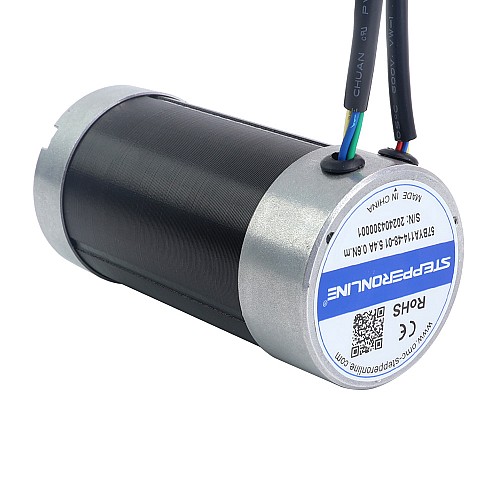

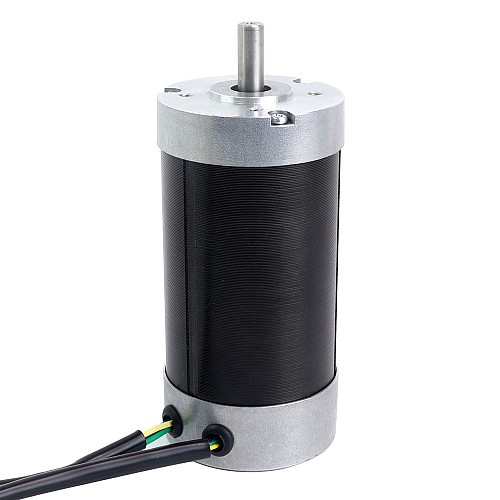

48V 3000RPM 0.6Nm 188W 5.40A Φ57x113.5mm Brushless DC Motor

0 reviews - Write a review

C$73.51

5 + C$71.08

10 + C$68.81

50 + C$66.67

100 + C$64.68

In Stock: 10000
Model: 57BYA114-48-01
Gross Weight: 1.41kg
Certificated: ISO, CE

Available Options

Ships from (Click country for real-time stock)

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a 48V brushless DC motor with 3 phases and 4 poles. It offers a rated speed of 3000rpm and torque of 0.6Nm(84.97oz.in).
57BYA series brushless motors are high-performance motors with round body and larger torque that are suitable for textile machines, robotics, autobikes and other industrial applications.

Electrical Specification

Manufacturer Part Number: 57BYA114-48-01
Phase: 3
Poles: 4
Rated Voltage: 48V
Rated Torque: 0.6Nm(84.97oz.in)
Rated Power: 188W
Rated Speed: 3000±10%RPM
Rated Current: 5.40A
No-load Speed: 3600±10%RPM
Resistance/phase: 0.76±10%Ohms
Inductance/phase: 2.32±20%mH
BACK EMF: 9.7±5%V/krpm
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: Φ57mm
Body Length: 113.5mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
Shaft Type: D-cut
Number of Leads: 8
Lead Length: 500mm
Sensor: Hall Sensor
Weight: 1.31kg

Connection

U	V	W	+5V	GND	A	B	C
Yellow	Green	Blue	Red	Black	Yellow	Green	Blue

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	5.4
Rated Power(W)	188
Rated Speed(rpm)	3000
Rated Torque(Nm)	0.6
Rated Voltage(V)	48
Physical Specification
Body Length(mm)	113.5
Frame Size(mm)	Nema 23 (Φ57)
Inventory Method	Dedicated Inventory
IP Rating	20
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	21
With Gearbox	No
