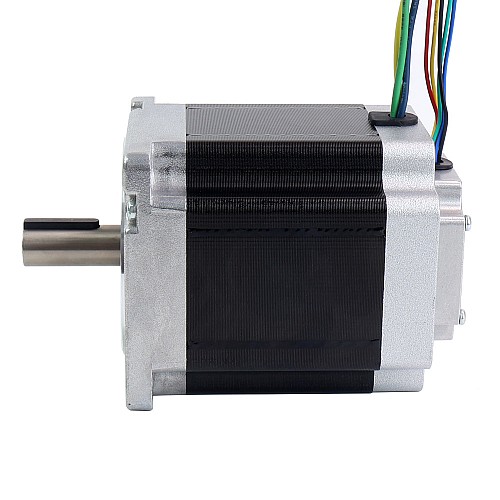

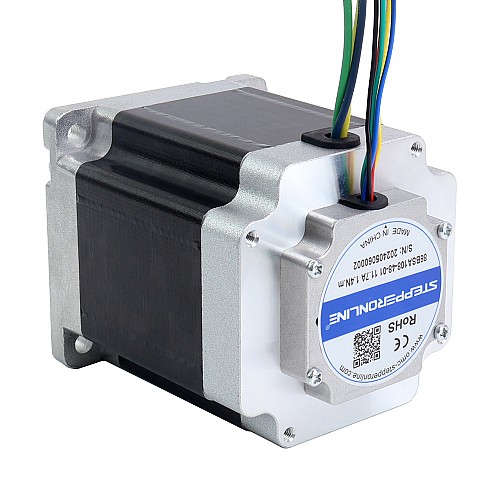

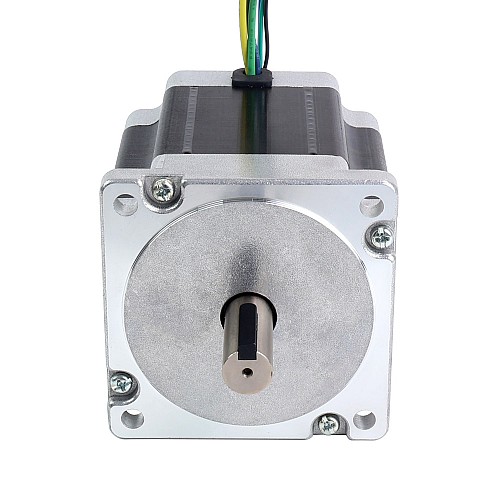

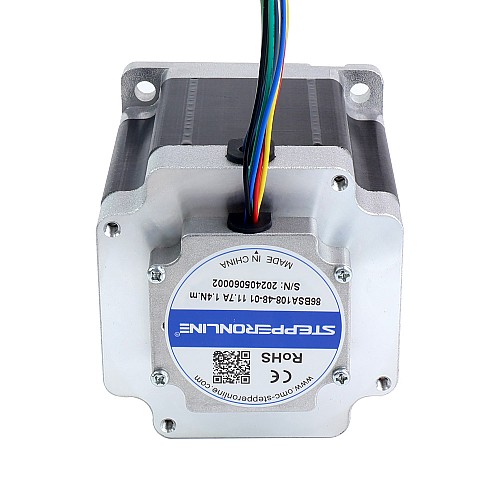

This is a 48V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and torque of 1.4Nm(198.26oz.in).
86BSA series brushless motors are high-performance motors with square body and larger torque that are suitable for textile machines, robotics, autobikes and other industrial applications.

Electrical Specification

Manufacturer Part Number: 86BSA108-48-01
Phase: 3
Poles: 8
Rated Voltage: 48V
Rated Torque: 1.4Nm(198.26oz.in)
Rated Power: 440W
Rated Speed: 3000±10%RPM
Rated Current: 11.7A
No-load Speed: 3600±10%RPM
Resistance/phase: 0.18±10%Ohms
Inductance/phase: 0.56±20%mH
BACK EMF: 9.72±5%V/krpm
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 107.6mm
Shaft Diameter: Φ14mm
Shaft Length: 35mm
Shaft Type: Keyway
Number of Leads: 8
Lead Length: 500mm
Sensor: Hall Sensor
Weight: 2.9kg

Connection

U	V	W	+5V	GND	A	B	C
Yellow	Green	Blue	Red	Black	Yellow	Green	Blue

The gearboxes suitable for this motor are EG34-G5, EG34-G10, EG34-G20, EG34-G50.

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	11.7
Rated Power(W)	440
Rated Speed(rpm)	3000
Rated Torque(Nm)	1.4
Rated Voltage(V)	48
Physical Specification
Body Length(mm)	107.6
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	20
Output Shaft Type	Keyway
Shaft Diameter(mm)	14
Shaft Length(mm)	35
With Gearbox	No
