Full D-cut Shaft Nema 17 Bipolar 59Ncm(83.55oz.in) 2A 42x42x48mm 4 Wires w/ 1m Cable & Connector
C$15.84
5 + C$15.08
10 + C$14.42
50 + C$13.79
100 + C$13.22
- In Stock: 10000
- Model: 17HS19-2004S2
- Gross Weight: 0.42kg
- Certificated: ISO, CE, UKCA, RoHS
Sold: 1061

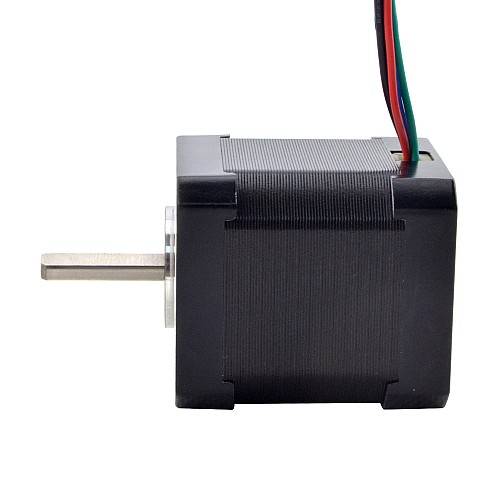

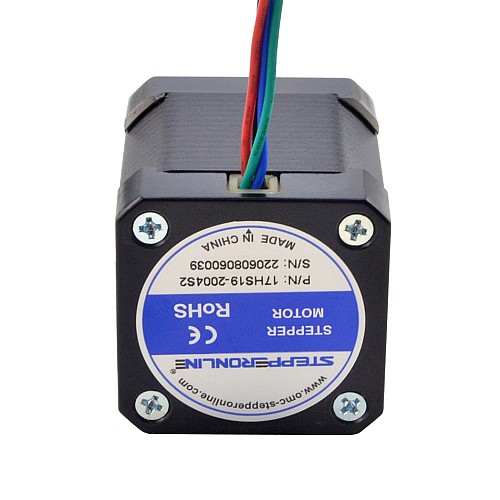

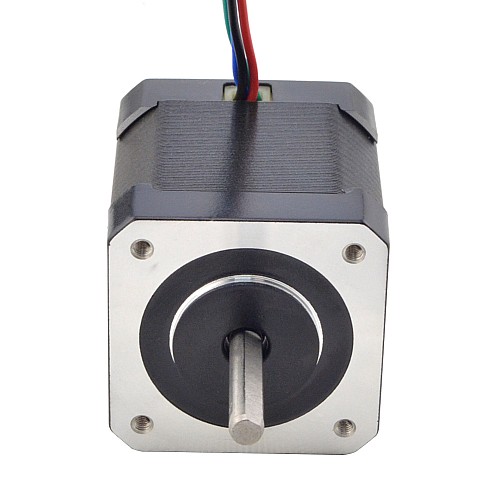

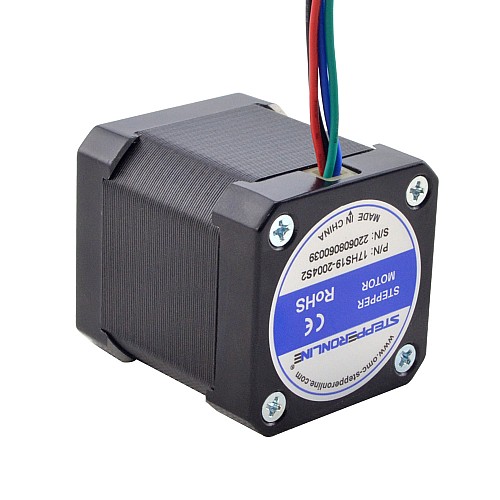

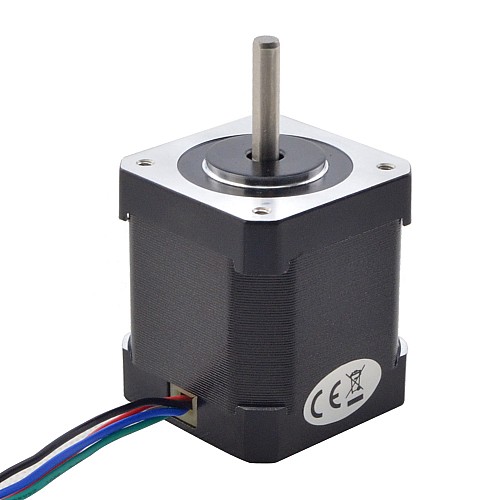

This is an updated version nema 17 stepper motor with holding torque of 59Ncm(83.55oz.in) and a full d-cut shaft. Based on old verstion, we have lengthened motor cable length to 1 metre, and add a 4-pin 0.1" pitch(2.54mm) Harwin female connector at the end of cable. It's good ideal for 3D printers, as well as CNC and robotics applications.
Electrical Specification
- Manufacturer Part Number: 17HS19-2004S2
- Motor Type: Bipolar Stepper
- Step Angle: 1.8deg
- Holding Torque: 59Ncm(83.55oz.in)
- Rated Current/phase: 2.0A
- Phase Resistance: 1.6ohms
- Inductance: 3.0mH±20%(1KHz)
- Insulation Class: B 130°C[266°F]
Physical Specification
- Frame Size: 42 x 42mm
- Body Length: 48mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- D-cut Length: 24mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 380g
Connection
A+ |
A- |
B+ |
B- |
Black |
Green |
Red |
Blue |
