Name: 17HS24-2104S | Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires | StepperOnline CA
SKU: 17HS24-2104S
Price: 19.6 CAD
Availability: InStock
Rating: 5 (19 reviews)

Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires - 17HS24-2104S | StepperOnline CA

Hot

Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires

19 reviews - Write a review

C$19.60

5 + C$18.68

10 + C$17.83

50 + C$17.06

100 + C$16.37

In Stock: 10000
Model: 17HS24-2104S
Gross Weight: 0.58kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Germany

United Kingdom

Australia

Russia

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

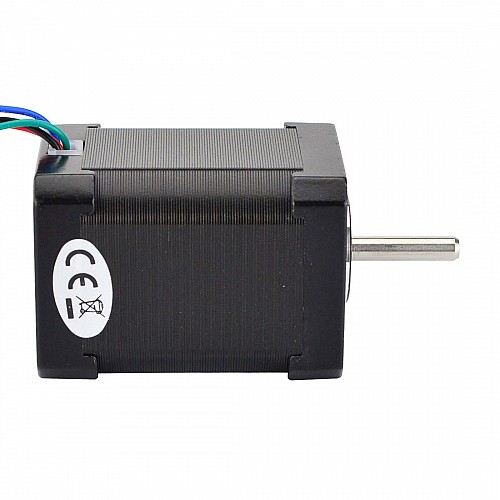

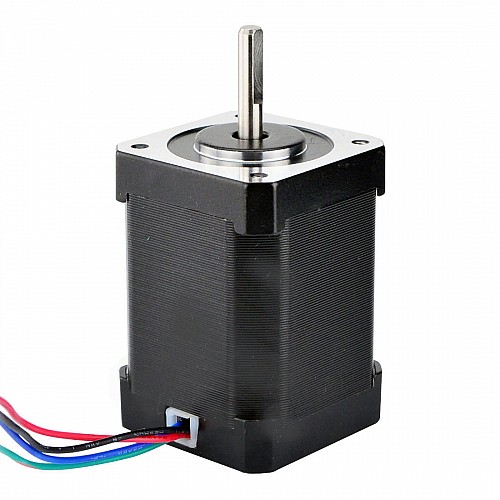

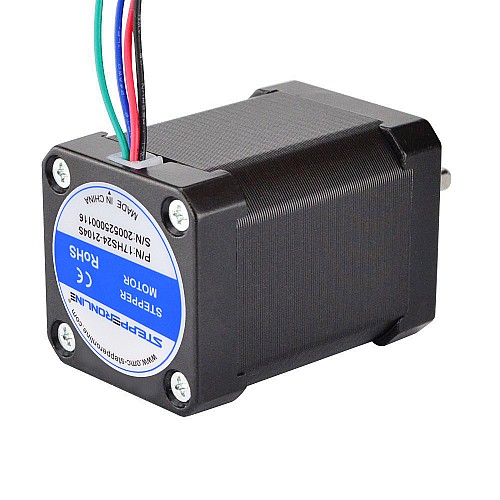

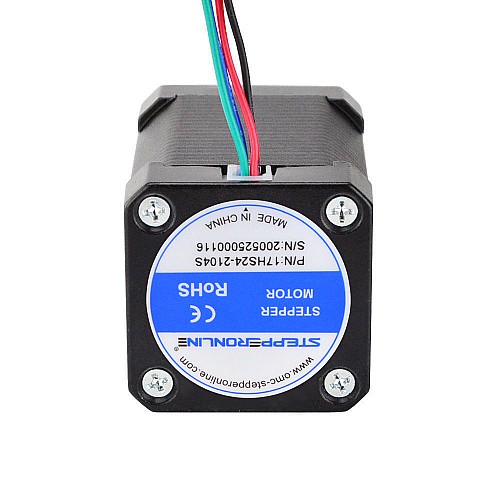

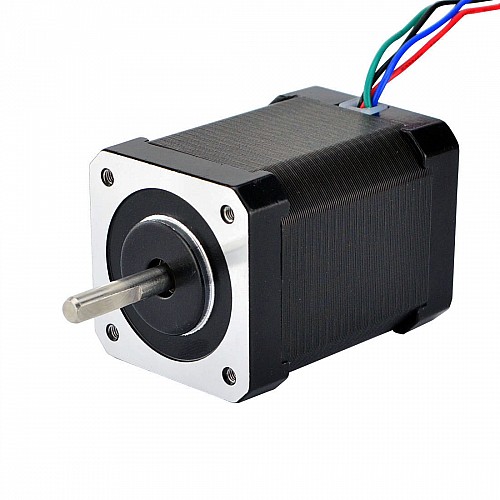

This is the strongest bipolar Nema 17 stepper motor we have, it with step angle 1.8deg and size 42x42x60mm. It has 4 wires, each phase draws 2.1A, with holding torque up to 65Ncm(92oz.in).

Electrical Specification

Manufacturer Part Number: 17HS24-2104S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 65Ncm(92oz.in)
Rated Current/phase: 2.1A
Phase Resistance: 1.6ohms
Inductance: 3mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 60mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 500g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

This motor is now available in a pack of 3. It has a better price. For more details, please see 3-17HS24-2104S.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	65
Holding Torque(oz.in)	92
Inductance(mH)	3
Phase Resistance(ohms)	1.6
Rated Current(A)	2.1
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	60
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	500
