7" 800x480px RS-485 Serial port & USB 128MB/FLASH 128MB/Memory lloT-Ready HMI Touch Screen LED Display

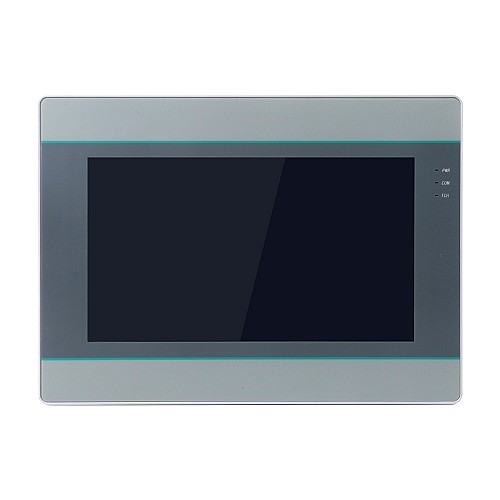

This high-end industrial IIoT HMI touch screen display features a 7-inch LED screen with 800x480 pixel resolution and 250cd/m² brightness. The backlit LED display ensures excellent visibility, with a lifespan exceeding 20,000 hours. Compared to conventional ones, this touchscreen incorporates IIoT capabilities, enabling intelligent device connectivity and enhancing safety and efficiency in production environments. Primarily designed for high-end PLC control automation applications, it allows users to quickly create programs using intuitive and powerful software.

Specifications

• Part Number: HI3070ig
• Display Type: HMI Display
• Processor: 4-core high-performance CPU
• Storage: 128MB NAND FLASH + 128MB Memory
• Operating Voltage: 24VDC
• Display Resolution: 800x480px
• Display Brightness: 250cd/m²
• Display Backlight: LED
• Display Size: 7"
• Panel Cut-out: 192.0x138.0mm
• Backlight Lifetime: 20,000 hours

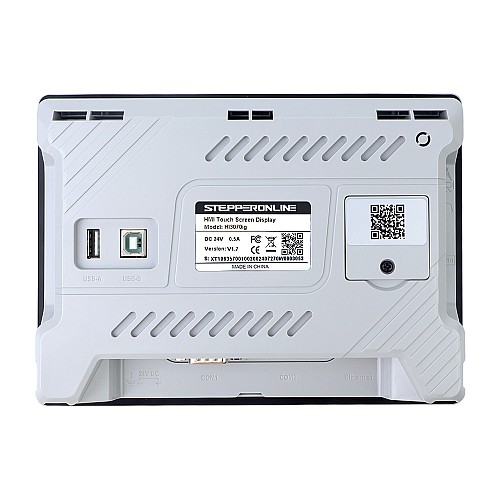

• USB Port: USB Host/USB CLIENT Note: Two USB ports cannot be used simultaneously.
• Ethernet: Yes

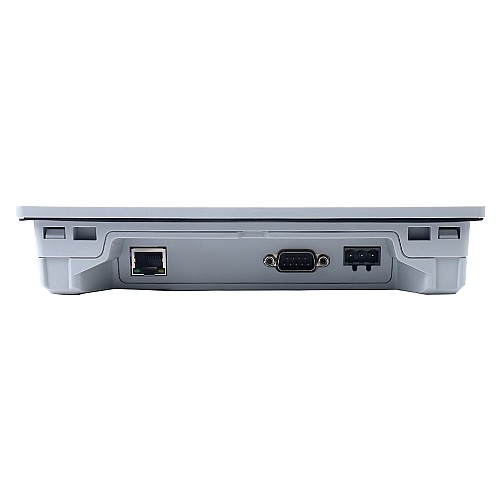

• I/O Port: Serial port(9): (RS-232, RS-422/RS-485, RS-485)
• IIoT(Industrial Internet of Things): Yes
• IIoT Real-time data monitoring: 100 points
• IIoT Alarm data monitoring: 20 points
• IIoT Historical data monitoring: 50 points
• IIoT Historical data monitoring days: 60 days or per million datas
