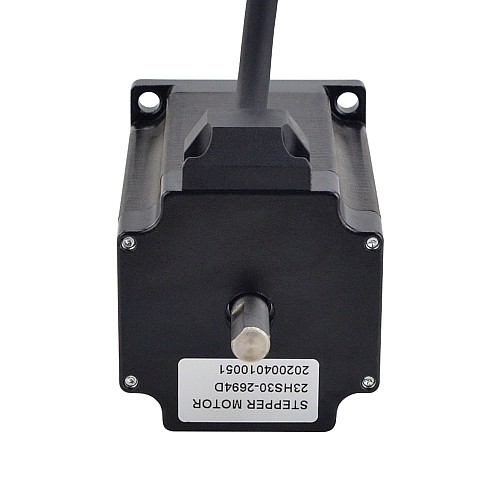

Name: Dual Shaft Nema 23 Bipolar 1.8deg 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires
Brand: STEPPERONLINE
SKU: 23HS30-2694D
Price: 27.43 CAD
Availability: InStock

Dual Shaft Nema 23 Bipolar 1.8deg 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires

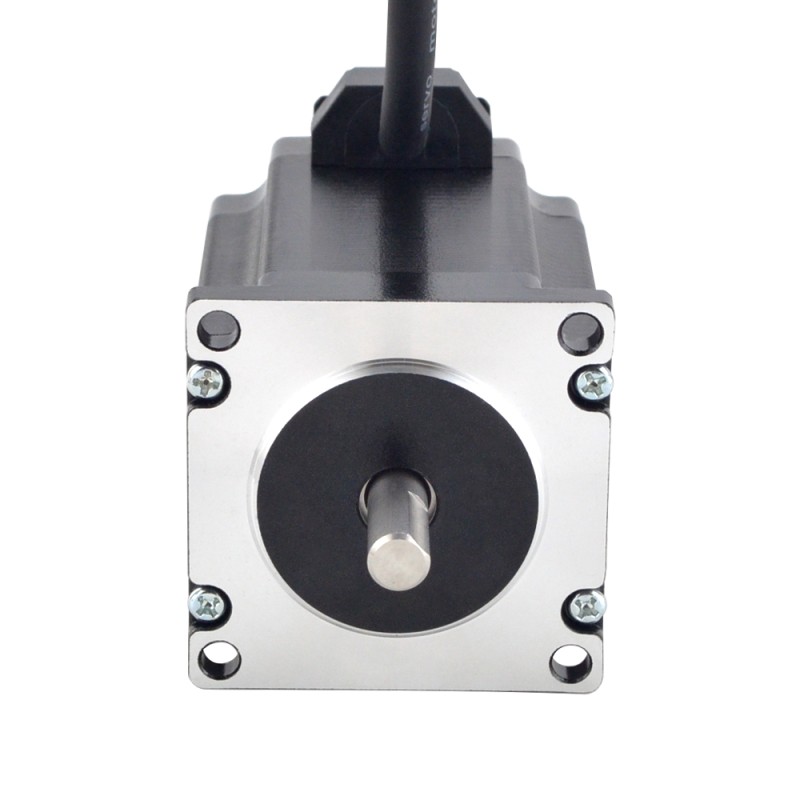

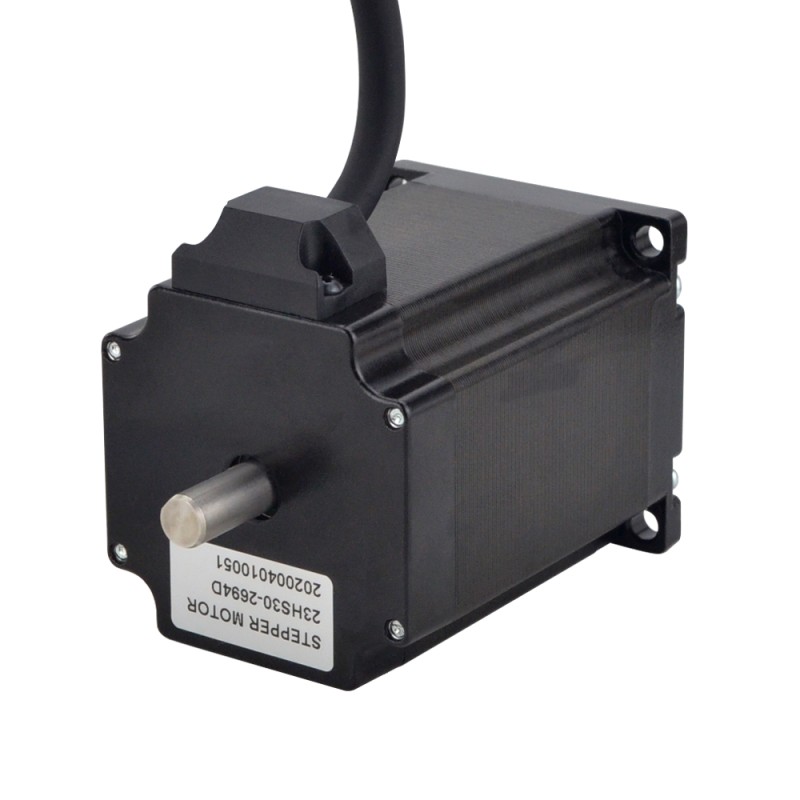

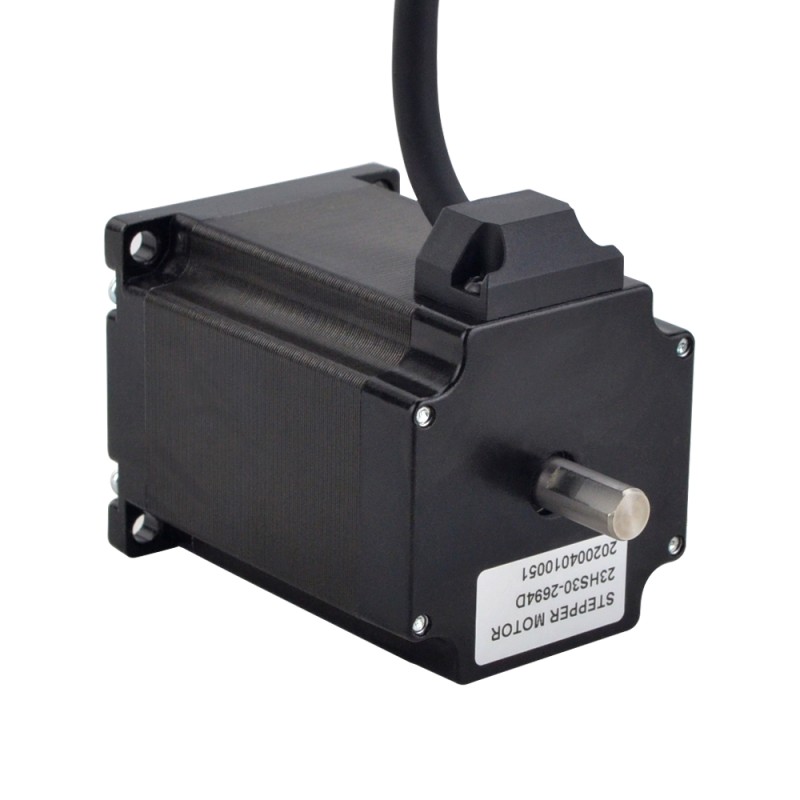

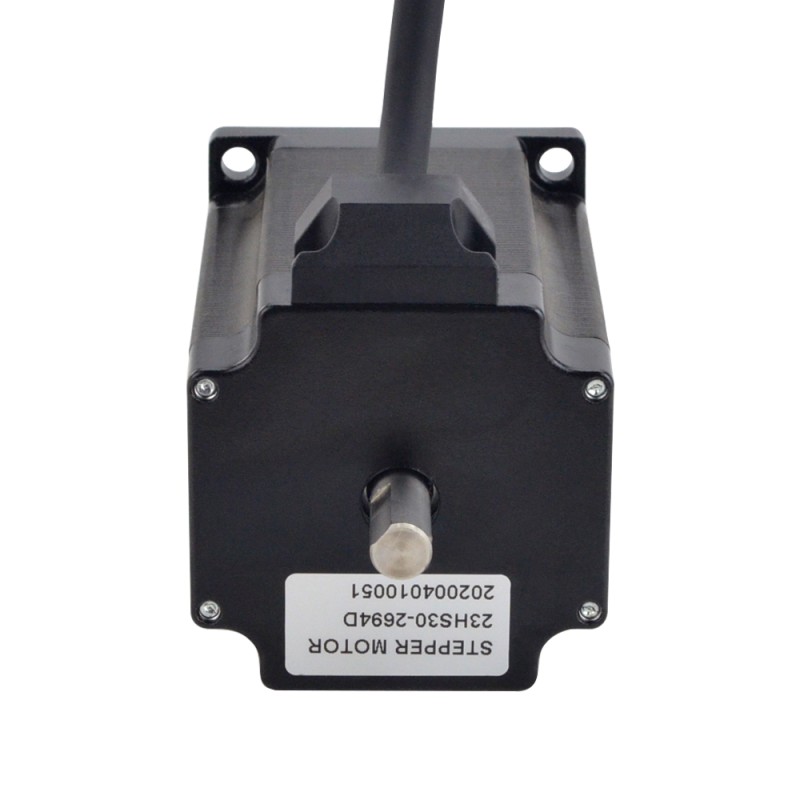

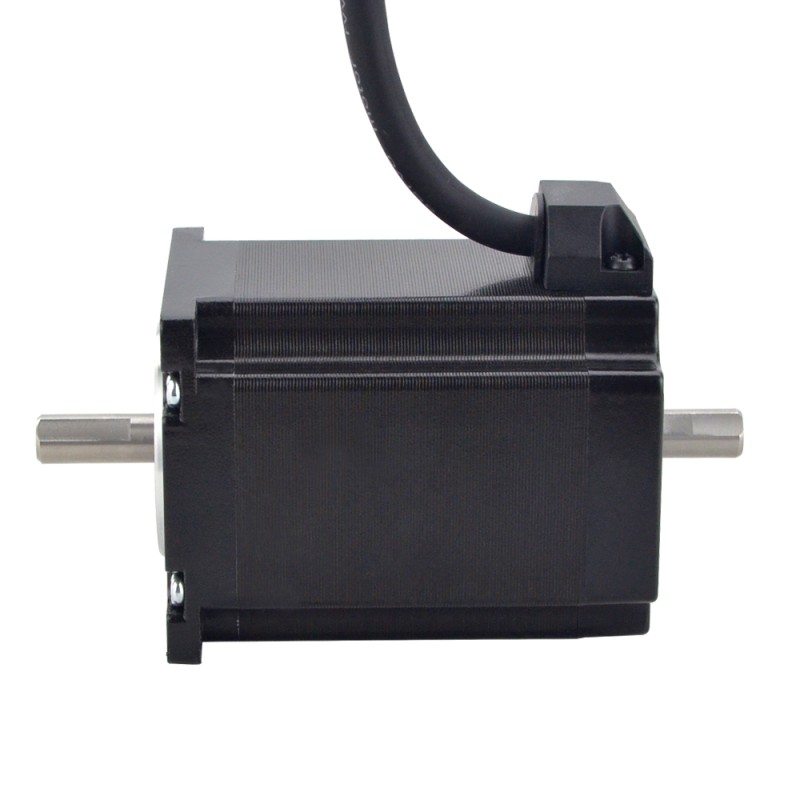

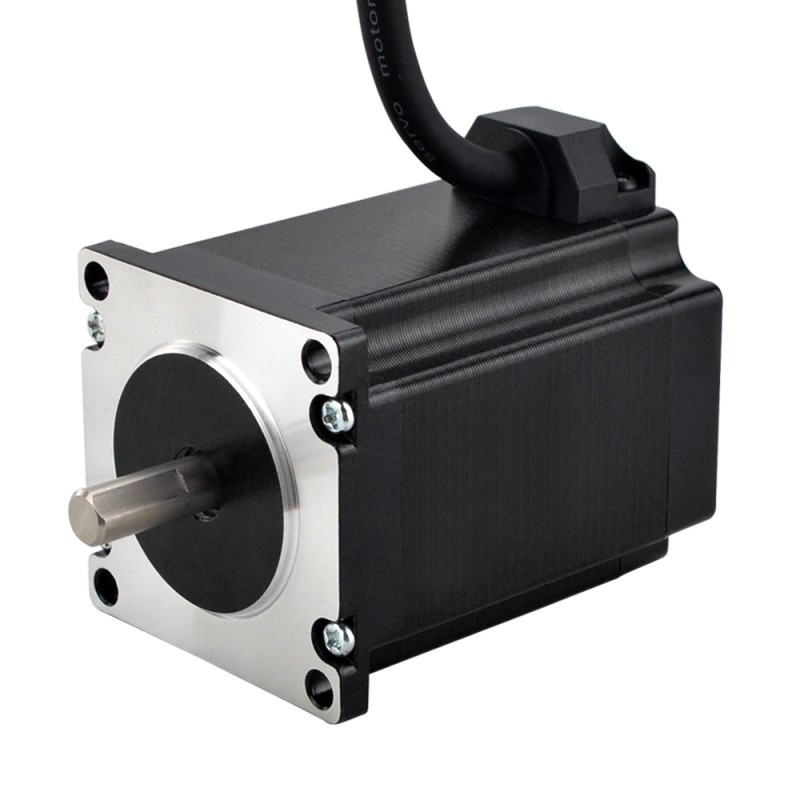

Nema 23 Stepper Motor 8mm Dual Shaft for Face Mask Machine & Respiratory Ventilator - 23HS30-2694D | StepperOnline CA

23HS30-2694D

Output Shaft TypeD

No. of Lead4

Single Shaft/Dual ShaftDual Shaft

Holding Torque(Ncm)185

Question

Downloads

23HS30-2694D.STEPSTEP · 1.43MBLog in to download 23HS30-2694D_Torque_Curve.pdfPDF · 173.97KB 23HS30-2694D_Full_Datasheet.pdfPDF · 122.83KB

Same series

Model	Output Shaft Type	No. of Lead	Single Shaft/Dual Shaft	Holding Torque(Ncm)	Price	Stock
23HS22-1006D	D	6	Dual Shaft	90	C$22.69	In stock
23HS22-1006S	D	6	Single Shaft	90	C$22.69	In stock
23HS22-1504S	D	4	Single Shaft	116	C$19.39	In stock
23HS22-1504S-C14	D	4	Single Shaft	116	C$12.96	In stock
23HS22-2804D	D	4	Dual Shaft	120	C$25.64	In stock
23HS22-2804S	D	4	Single Shaft	124	C$19.39	In stock
23HS22-2804S1	D	4	Single Shaft	126	C$19.39	In stock
23HS22-3008D	O	8	Dual Shaft	126	C$22.69	In stock
23HS26-2004H	Hollow	4	Dual Shaft	145	C$37.09	In stock
23HS30-1006S	D	6	Single Shaft	135	C$32.16	In stock
23HS30-2694D	D	4	Dual Shaft	185	C$27.43	In stock
23HS30-2694S	D	4	Single Shaft	185	C$27.43	In stock
23HS30-2804D	D	4	Dual Shaft	185	C$35.25	In stock
23HS30-2804S	D	4	Single Shaft	200	C$26.48	In stock
23HS30-2804S-RV	Keyway	4	Single Shaft	190	C$37.77	In stock
23HS30-2804S-USED	D	4	Single Shaft	190	C$11.11	In stock
23HS30-2804S1	D	4	Single Shaft	185	C$32.16	In stock
23HS30-2804S2	D	4	Single Shaft	190	C$26.48	In stock
23HS30-2904S	D	4	Single Shaft	190	C$26.48	In stock
23HS30-3004S	D	4	Single Shaft	189	C$26.48	In stock
23HS30-3006D	O	6	Dual Shaft	135	C$32.16	Backorder
23HS32-4004S	D	4	Single Shaft	240	C$27.43	In stock
23HS32-4004S-C8-USED	D	4	Single Shaft	240	C$25.06	In stock
23HS33-4008D	D	8	Dual Shaft	283	C$38.83	In stock
23HS33-4008S	D	8	Single Shaft	283	C$40.90	In stock
23HS39-5004S	D	4	Single Shaft	300	C$21.21	In stock
23HS39-5004S-USED	D	4	Single Shaft	300	C$21.63	In stock
23HS41-1804S	D	4	Single Shaft	240	C$36.51	In stock
23HS45-3504S	D	4	Single Shaft	300	C$44.92	In stock
23HS45-4204D	D	4	Dual Shaft	280	C$54.91	In stock

View all in category

Dual Shaft Nema 23 Bipolar 1.8deg 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires

Electrical Specification Manufacturer Part Number: 23HS30-2694D Number Of Phase: 2 Step Angle: ... Read More

0 reviews • Write a review

from

C$27.43

5 + C$26.14

10 + C$24.97

50 + C$23.88

100 + C$22.91

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 23HS30-2694D
Number Of Phase: 2
Step Angle: 1.8deg
Holding Torque: 1.85Nm(261.98oz.in)
Rated Current/phase: 2.8A
Phase Resistance: 1.1ohms± 10%
Inductance: 5.4mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 76mm
Shaft Diameter: Φ8mm
Front Shaft Length: 21mm
Front D-CUT Shaft Length: 15mm
Rear Shaft Length:16mm
Rear D-CUT Shaft Length: 14mm
Number of Leads: 4
Lead Length: 500mm
Weight: 1.09kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	185
Holding Torque(oz.in)	261.98
Inductance(mH)	5.4
Phase Resistance(ohms)	1.1
Rated Current(A)	2.8
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	76
Frame Size(mm)	Nema 23 (57 x 57)
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	8
Shaft Length(mm)	21
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	1090
