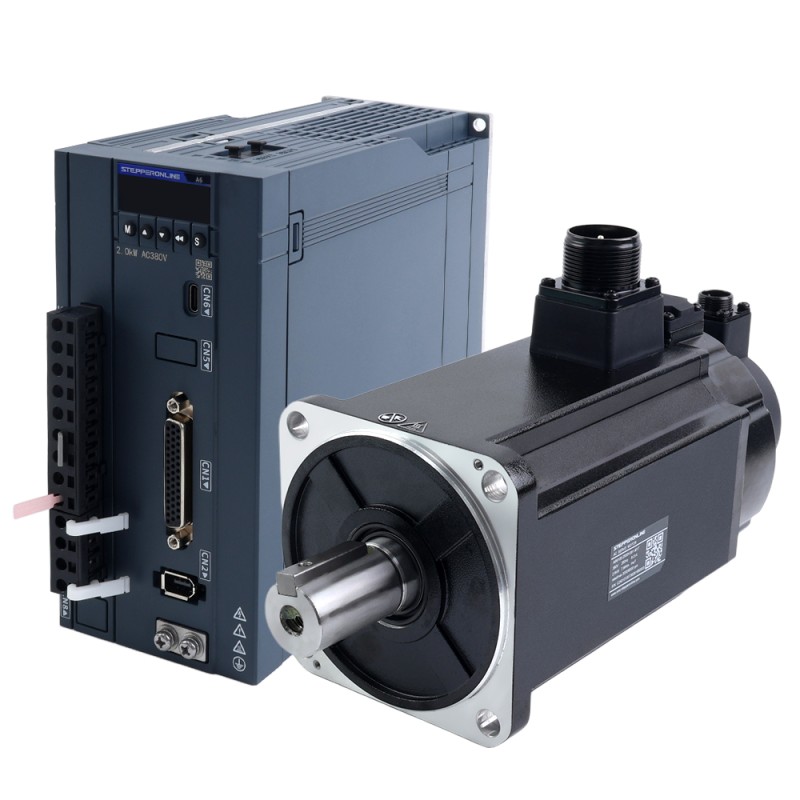

A6 Series 2500W RS485 AC Servo Motor Kit 3000rpm 7.96Nm w/ Brake 17-Bit Absolute Encoder IP67

This is an A6 series AC servo motor and driver kit consisting of a 380VAC 2500W motor with the built-in 17-bit multiturn absolute encoder and a 24V 8.5W brake, and a three-phase 380V 2000W servo driver that supports Pulse/RS485/Analog communication. The motor provides excellent servo control performance.

This series of servo products is easy to operate, economical and efficient with optimal balance between performance and costs.
The A6-RS series servo products feature in high response, hight accuracy and cost-efficiency, providing efficient and convenient motion control solutions for various industries.

Items in Kit

• 1 x A6-2000RS: 2000W AC Servo Motor Driver
• 1 x A6M100-2500H3B1-M17: 2500W AC Servo Motor Kit 3000rpm 7.96Nm with Brake 17-Bit Absolute Encoder IP67

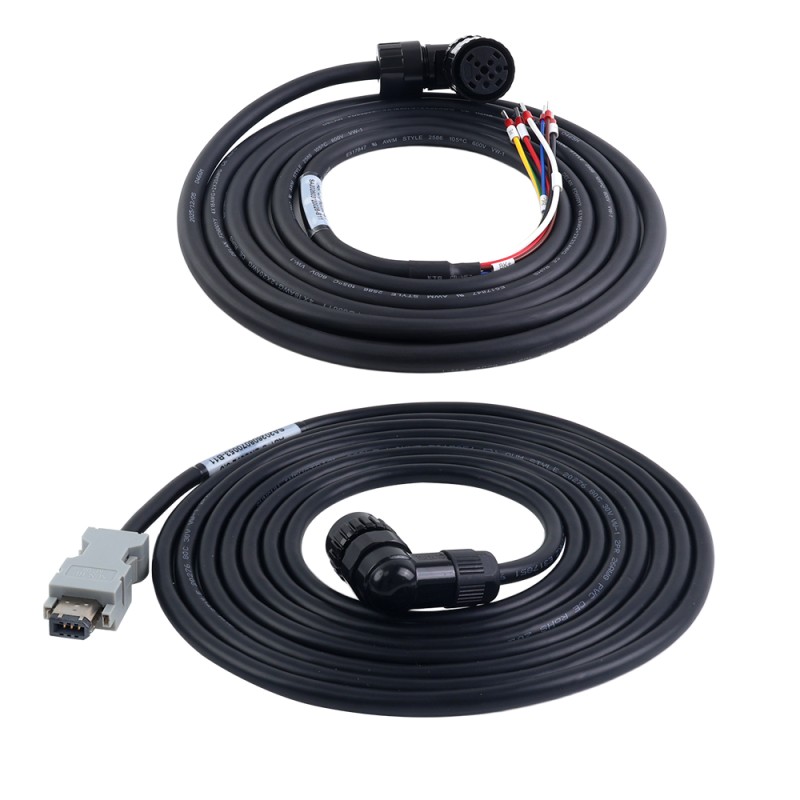

• 1 x AS7-C-PWB062-3.0: 3.0m Motor Cable
• 1 x AS7-C-ENC072-3.0: 3.0m Encoder Cable

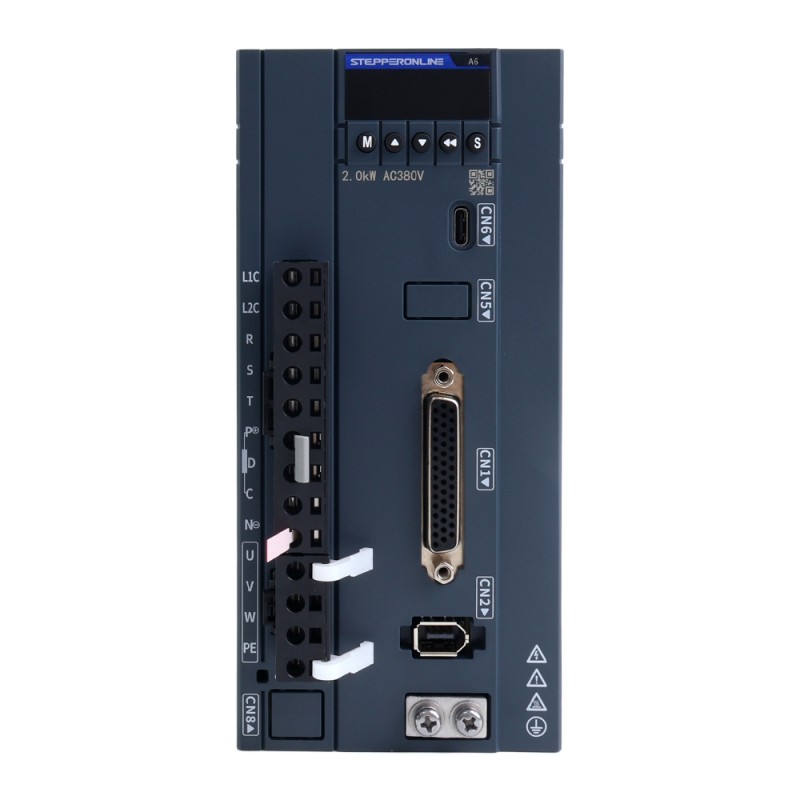

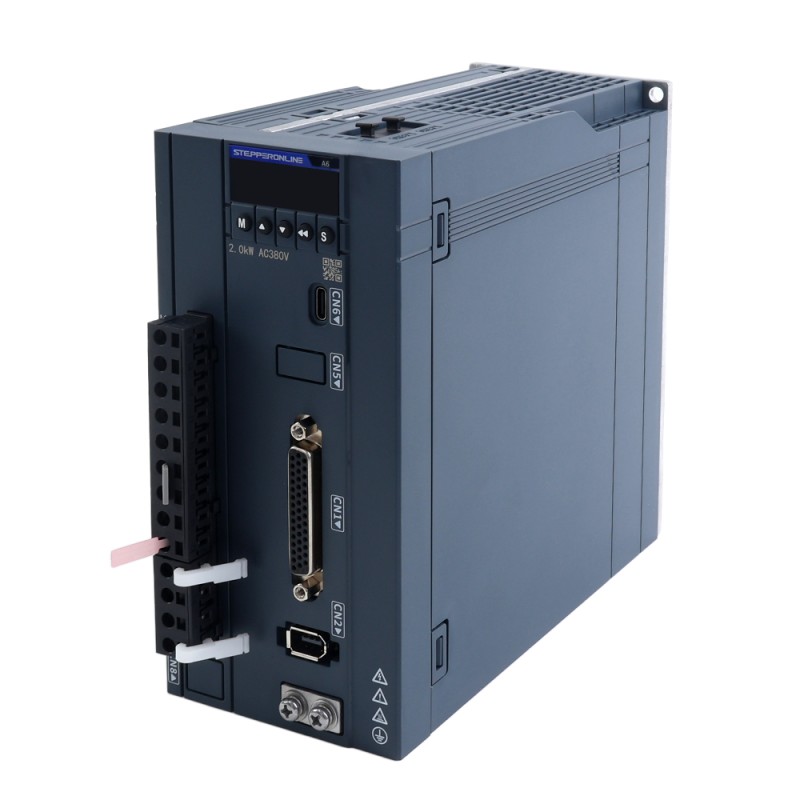

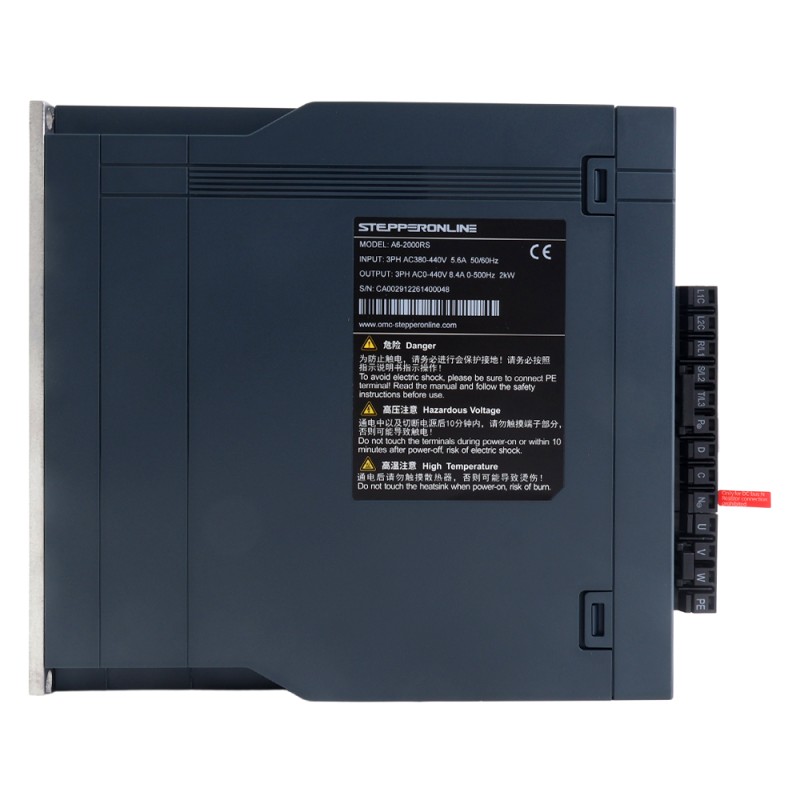

Servo Driver Specification

• Part Number: A6-2000RS
• Pulse/RS485/Analog communication
• 2KHz speed loop bandwith
• 17-bit absolute encoder
• Rated voltage three-phase 380VAC
• Rated power 2000W
• Dimension: 280*200*120mm

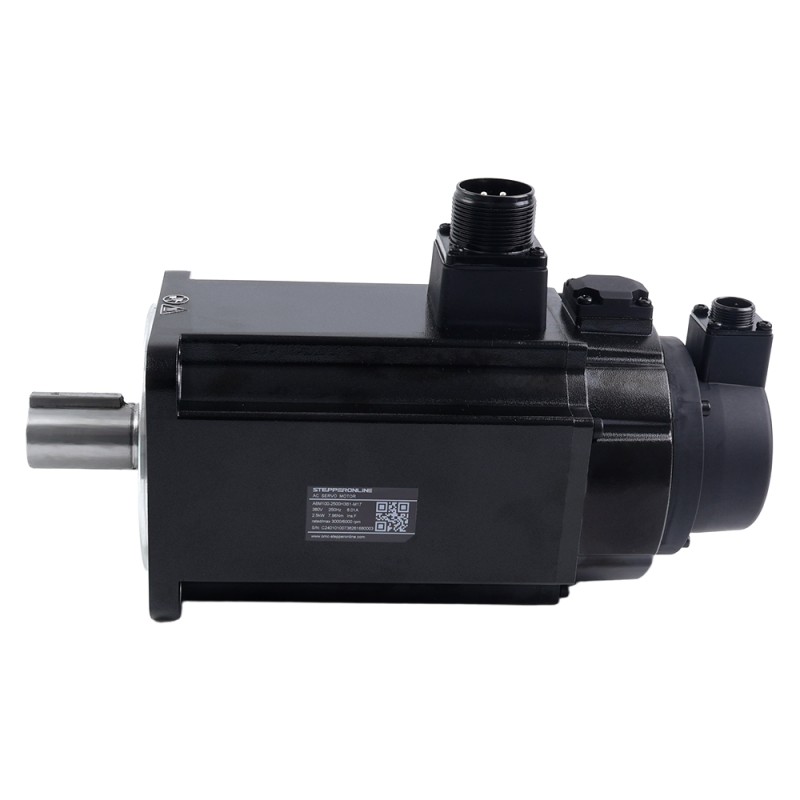

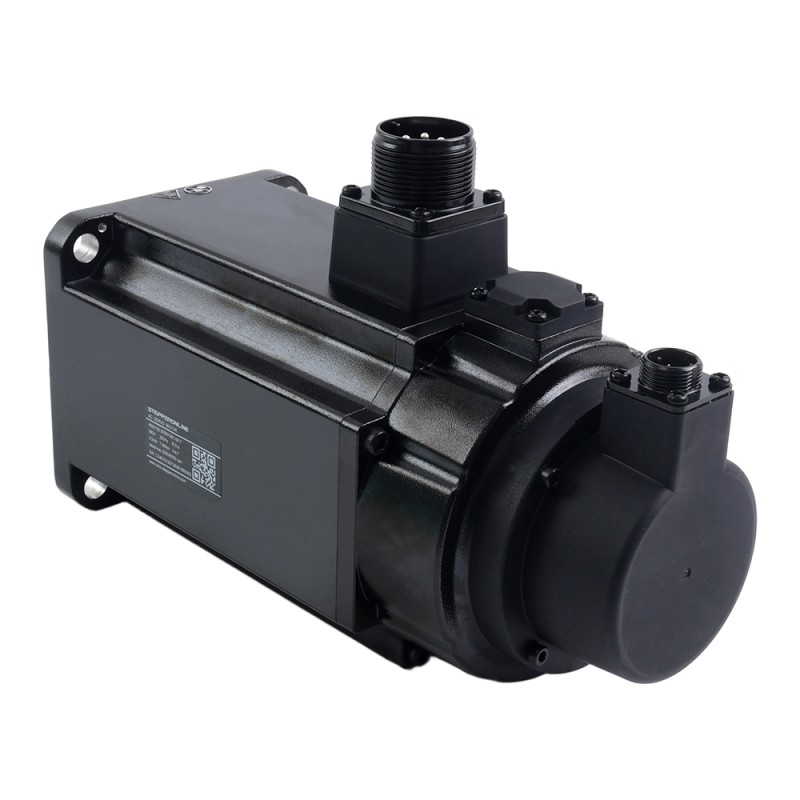

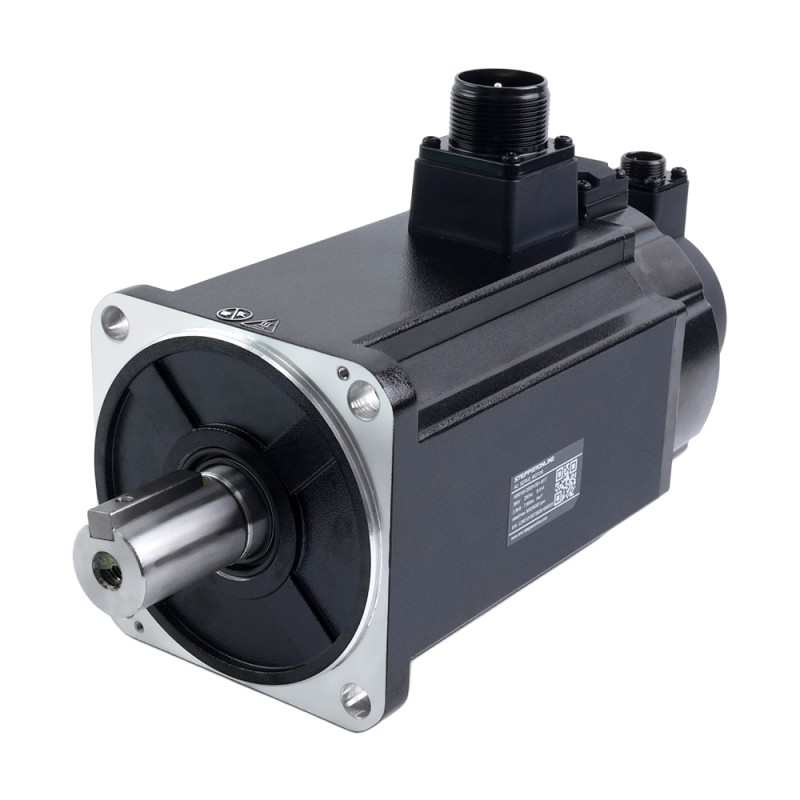

Servo Motor Specification

• Part Number: A6M100-2500H3B1-M17
• Rated Voltage: 380VAC
• Rated Power: 2500W
• Rated Torque: 7.96Nm
• Peak Torque: 26.50Nm
• Rated Speed: 3000rpm
• Peak Speed: 6000rpm
• Rated Current: 8.17A
• Peak Current: 27.8A
• Torque Const: 0.974Nm/A
• Back EMF Const: 61.45V/krpm
• Resistance: 0.644ohms
• Inductance: 9.98mH
• Inertia: 5.11kg*m²*10^-4
• Poles: 10
• Encoder: Magnetic encoder, 17-bit single-turn absolute(multi-turn available)
• IP Rating: IP67
• Shaft Diameter: 24mm
• Brake Voltage: 24V DC
• Brake Power: 8.5W
• Brake Holding Torque: 3.20Nm
• Axial Load: Max.196N
• Radial Load @ Shaft Length 45mm: Max.686N
