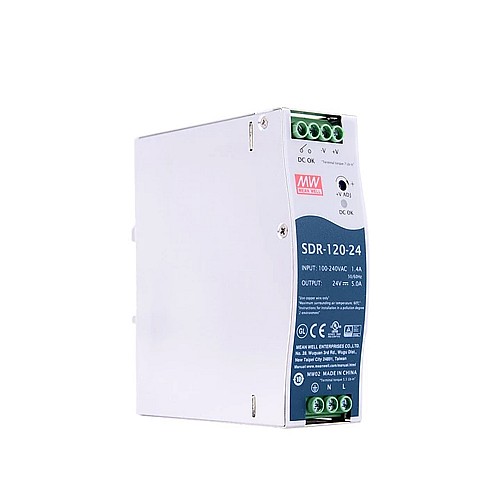

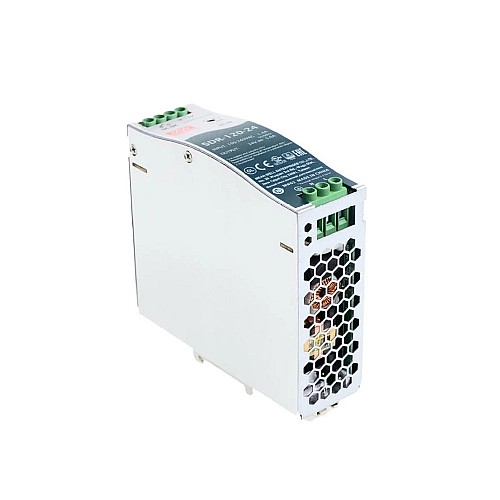

CN On Sale - SDR-120-24 MEANWELL 120W 24VDC 5A 115/230VAC With PFC Function DIN Rail Power Supply
0 reviews - Write a review
C$87.72
C$58.21
  • In Stock: 10000
  • Brand: MEANWELL
  • Model: CN-SDR-120-24
  • Gross Weight: 0.89kg
  • Certificated: ISO, CE
Sold: 20

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Features

  • Brand MEANWELL
  • 24V DC 5A output
  • AC input voltage range: 88 ~ 264VAC
  • Rated power: 120W
  • High efficiency 91% and low power dissipation
  • 150% peak load capability
  • Built-in active PFC function, PF>0.93
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection

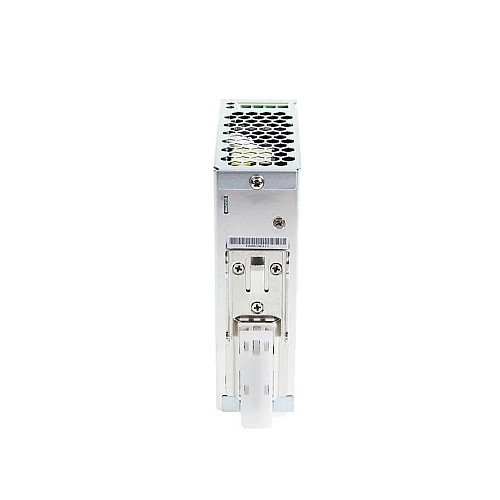

  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
  • Built-in DC OK relay contact
  • 100% full load burn-in test
  • 3 years warranty

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipments or apparatus
  • Household appliances
Product Type
Product Type DIN Rail Power Supply
Electrical Specification
Efficiency(%) 91%
Max. Output Current(A) 5
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 40 x 125.2 x 113.5 / 1.57x 4.93 x 4.47
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 88 - 264 / 124 - 370
Output Voltage(VDC) 24
PFC Function Yes
Power(W) 120
Physical Specification
Inventory Method Dedicated Inventory
File Size
SDR-120.pdf 792.64KB Download
