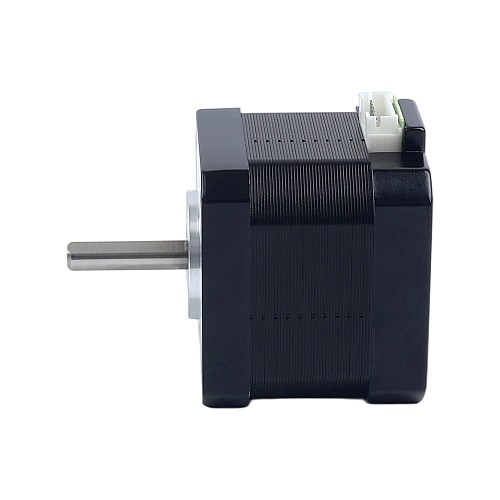

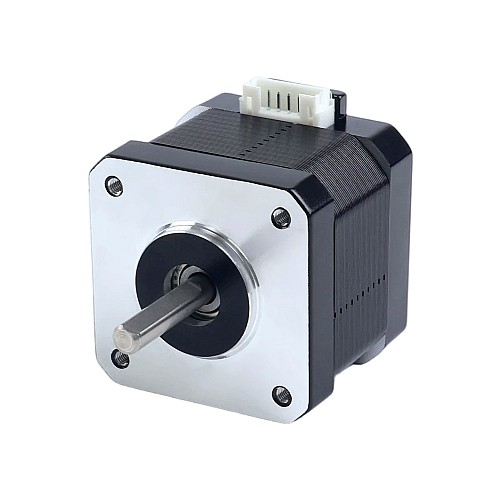

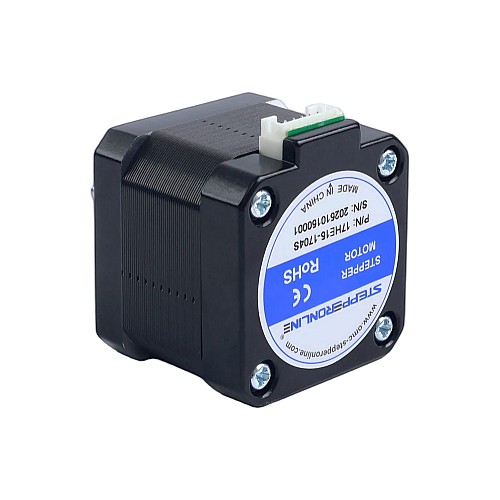

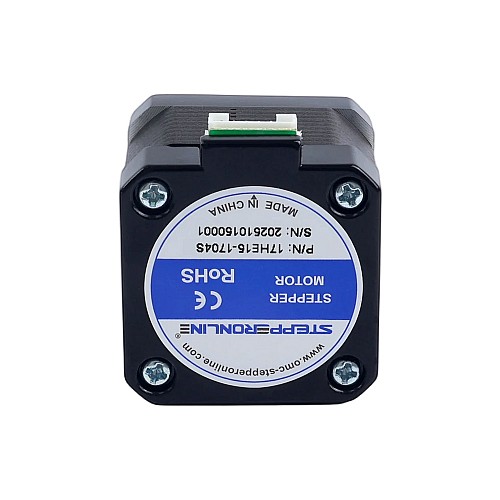

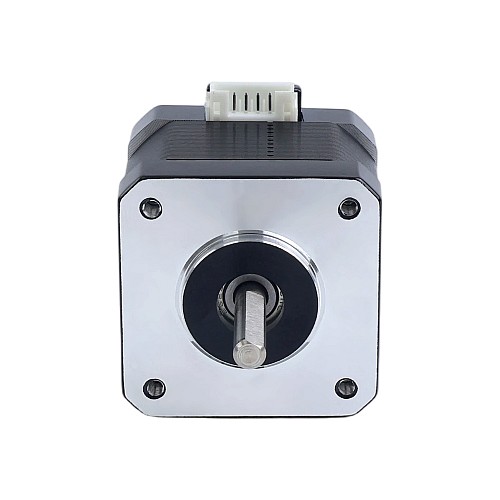

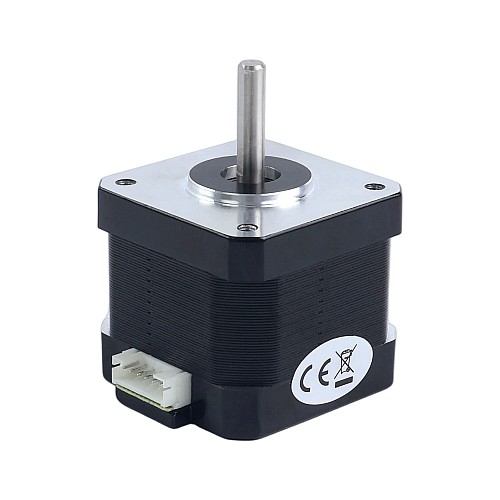

E Series Nema 17 Bipolar 42Ncm(59.48oz.in) 1.7A 42x42x37.5mm 4 Wires w/ 1m Cable & Connector

New

E Series Nema 17 Bipolar 42Ncm(59.48oz.in) 1.7A 42x42x37.5mm 4 Wires w/ 1m Cable & Connector

0 reviews - Write a review

C$7.65

5 + C$7.34

10 + C$7.04

50 + C$6.78

100 + C$6.53

In Stock: 10000
Model: 17HE15-1704S
Gross Weight: 0.31kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

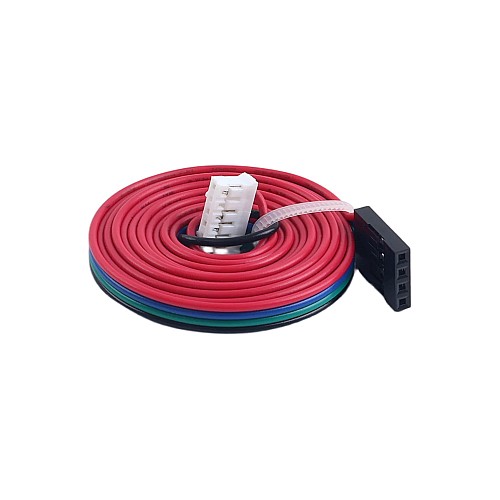

This Nema 17 bipolar stepper motor offers a holding torque of 42Ncm(59.48oz.in) and a 1.8° step angle. Designed for stable and reliable performance, it has a rated current of 1.7A per phase. The motor comes with a 1-meter cable and a 4-pin 2.54mm pitch Harwin female connector for easy plug-and-play installation. It is an ideal power solution for high-precision motion control in applications such as 3D printers, CNC equipment, and robotics projects.

Electrical Specification

Manufacturer Part Number: 17HE15-1704S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 42Ncm(59.48oz.in)
Rated Current/phase: 1.70A
Phase Resistance: 2.3ohms
Inductance: 4.0mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 37.5mm
Shaft Diameter: Φ5mm
Shaft Length: 22mm
Number of Leads: 4
Cable Length: 1000mm
Weight: 270g

Connection

A+	A-	B+	B-
Red	Blue	Black	Green

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	42
Holding Torque(oz.in)	59.48
Inductance(mH)	4.0
Phase Resistance(ohms)	2.3
Rated Current(A)	1.7
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	37.5
Cable Length(mm)	1000
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	4
Output Shaft Type	D
Product Series	E
Shaft Diameter(mm)	5
Shaft Length(mm)	22
Single Shaft/Dual Shaft	Single Shaft
