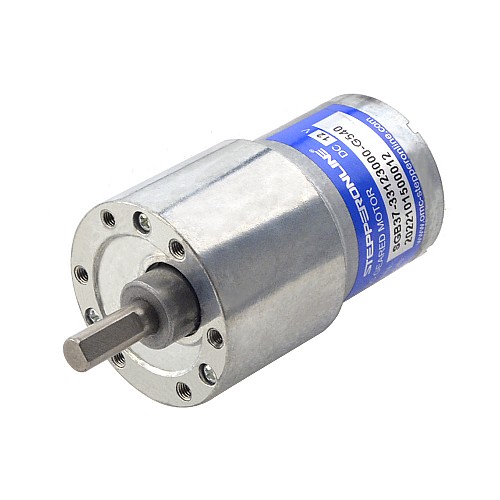

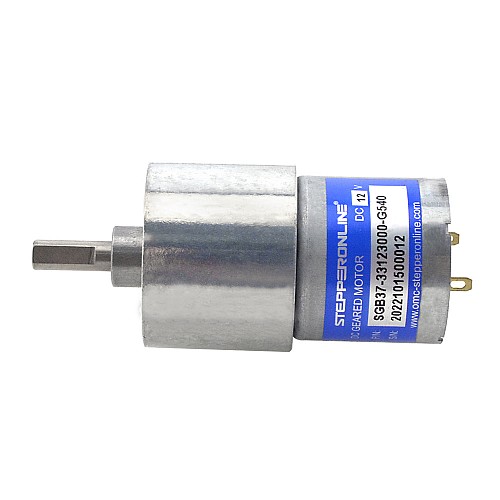

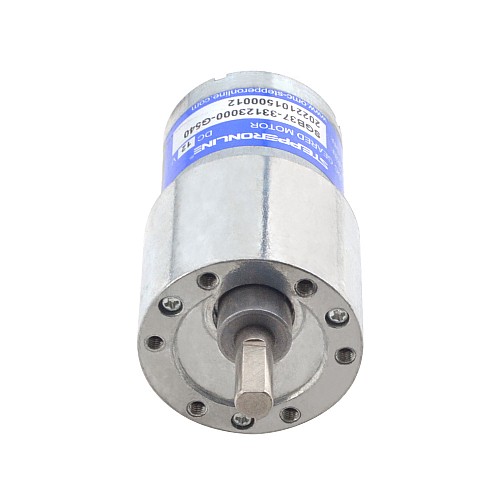

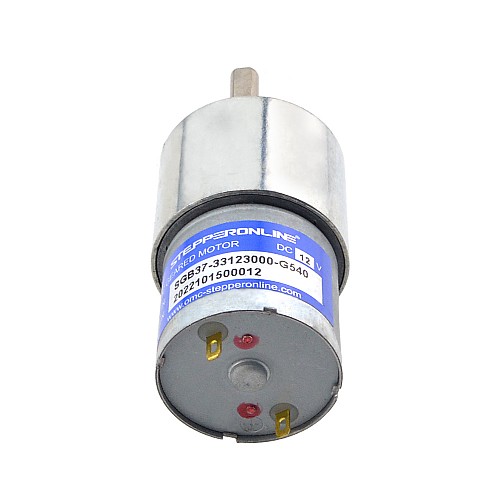

Brushed 12V DC Gear Motor 12Kg.cm/4.4RPM 540:1 Spur Gearbox

0 reviews - Write a review

C$9.69

5 + C$9.35

10 + C$9.04

50 + C$8.76

100 + C$8.48

In Stock: 10000
Model: SGB37-33123000-G540
Gross Weight: 0.44kg
Certificated: ISO, CE

Sold: 31

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This is a standard 12volt brushed DC gear motor, generating 12kg.cm of torque at 4.4rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 540 : 1 spur gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: SGB37-33123000-G540
Rated Voltage: 12V
Rated Torque: 12kg.cm(165.96oz.in)
Rated Current: <=240mA
Rated Speed: 4.4rpm
No-load Current: <=60mA
No-load Speed: 5.5rpm
Rotation Direction: CW/CCW
Motor Type: Brushed DC Motor

Gearbox Specification

Gearbox Type: Spur Gearbox
Gear Ratio: 540 : 1

Physical Specification

Motor Size: Φ33 x 29.1mm
Gearbox Size: Φ37 x 29mm
Shaft Diameter: Φ6mm
Shaft Length: 15.5mm
D-cut Length: 12mm

Electrical Specification
Motor Type	Brushed DC Motor
Rated Current(A)	0.24
Rated Speed(rpm)	4.4
Rated Torque(kg.cm)	12
Rated Torque(oz.in)	165.96
Rated Voltage(V)	12
Physical Specification
Gear Ratio(xx:1)	540
Gearbox Shape	Round
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	15.5
