Name: 17HS15-1504S-X1 | Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Pin Connector | StepperOnline CA
SKU: 17HS15-1504S-X1
Price: 13.51 CAD
Availability: InStock
Rating: 5 (25 reviews)

Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Pin Connector - 17HS15-1504S-X1 | StepperOnline CA

Hot

Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x40mm 4 Wires w/ 1m Pin Connector

25 reviews - Write a review

C$13.51

5 + C$12.88

10 + C$12.30

50 + C$11.77

100 + C$11.29

In Stock: 10000
Model: 17HS15-1504S-X1
Gross Weight: 0.38kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Germany

Japan

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

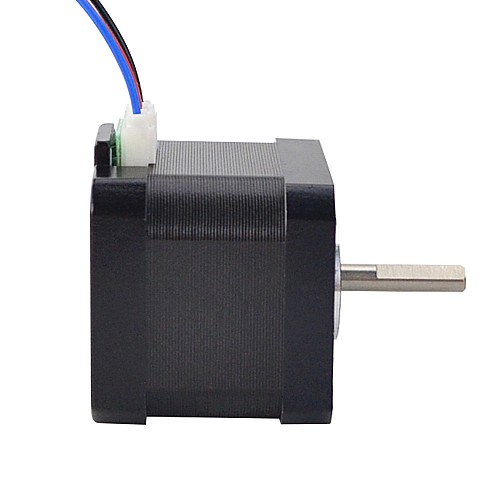

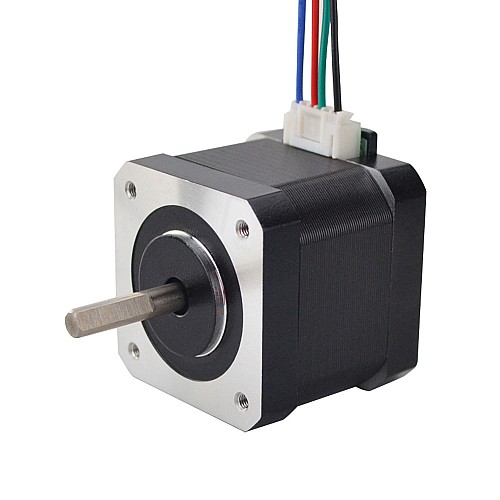

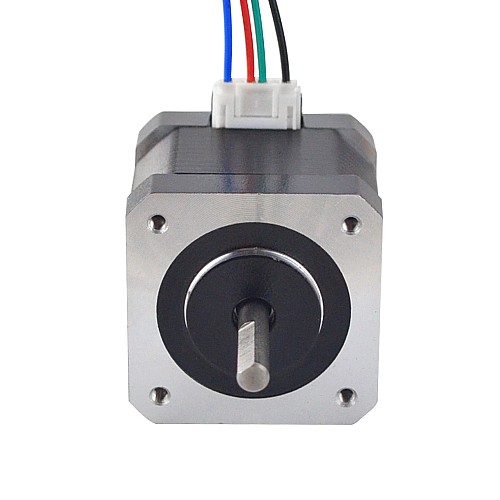

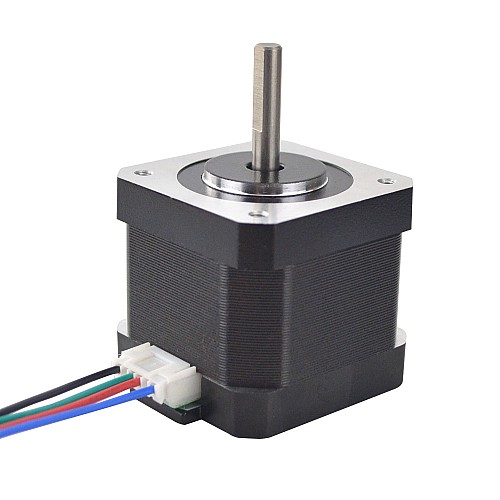

This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x40mm. It has 4 wires, each phase draws current 1.5A, with holding torque 45Ncm(63.74oz.in).

Electrical Specification

Manufacturer Part Number: 17HS15-1504S-X1
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 45Ncm(63.74oz.in)
Rated Current/phase: 1.50A
Phase Resistance: 2.3ohms
Inductance: 4.4mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 40mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 15mm
Number of Leads: 4

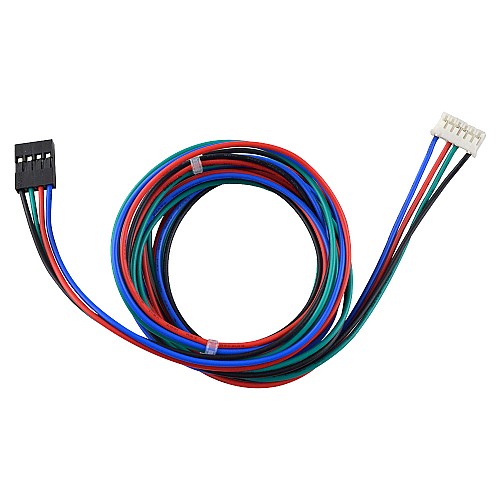

Lead Length: 1000mm
Weight: 280g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

This motor is now available in packs of 3 and 5. It has a better price. For more details, please see 3-17HS15-1504S-X1 and 5-17HS15-1504S-X1.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	45
Holding Torque(oz.in)	63.74
Inductance(mH)	4.4
Phase Resistance(ohms)	2.3
Rated Current(A)	1.5
Step Angle(deg.)	1.8
Brake Specification
Brake Power(W)	Yes
Physical Specification
Body Length(mm)	40
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	1000
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	280
