Brushed 12V DC Gear Motor 50Kg.cm/4.2RPM 540:1 Spur Gearbox

0 reviews - Write a review

C$11.07

5 + C$10.70

10 + C$10.35

50 + C$10.00

100 + C$9.69

In Stock: 10000
Model: SGE37-36123000-G540
Gross Weight: 0.44kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

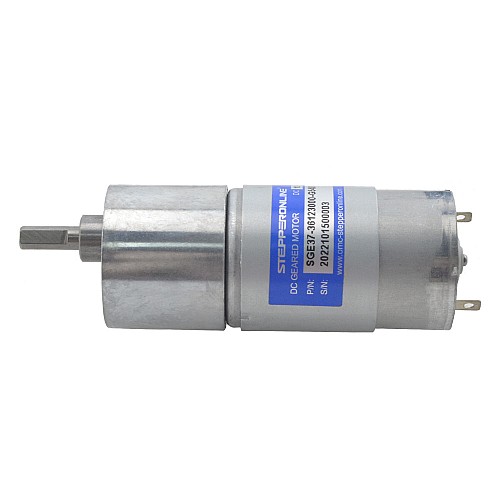

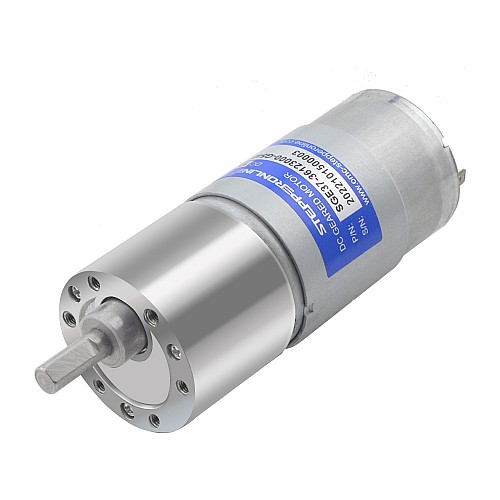

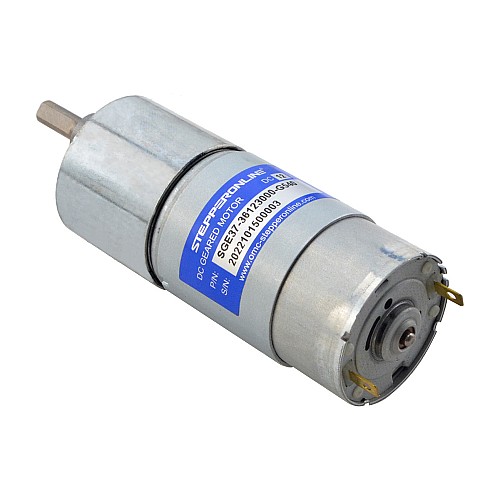

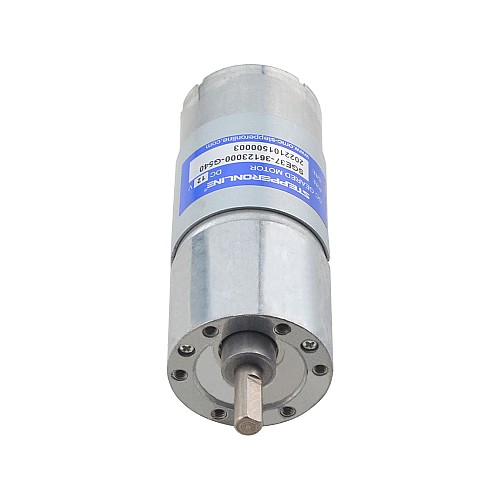

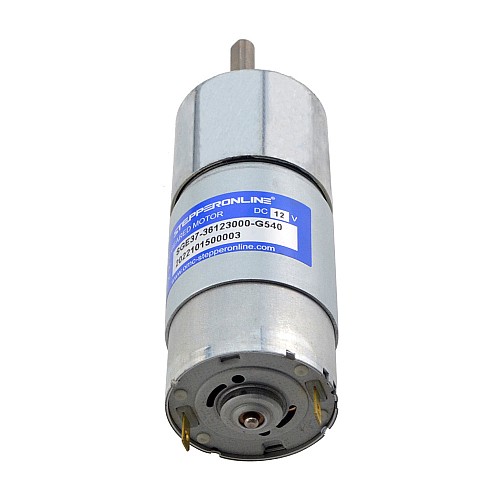

This is a standard 12 volt brushed DC gear motor, generating 50kg.cm of torque at 4.2rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 540 : 1 spur gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: SGE37-36123000-G540
Rated Voltage: 12V
Rated Torque: 50kg.cm(691.5oz.in)
Rated Current: <=930mA
Rated Speed: 4.2rpm
No-load Current: <=250mA
No-load Speed: 5.6rpm
Rotation Direction: CW/CCW
Motor Type: Brushed DC Motor

Gearbox Specification

Gearbox Type: Spur Gearbox
Gear Ratio: 540 : 1

Physical Specification

Motor Size: Φ37 x 57.5mm
Gearbox Size: Φ36 x 30mm
Shaft Diameter: Φ6mm
Shaft Length: 15.5mm
D-cut Length: 12mm

Electrical Specification
Motor Type	Brushed DC Motor
Rated Current(A)	0.93
Rated Speed(rpm)	4.2
Rated Torque(kg.cm)	50
Rated Torque(oz.in)	691.5
Rated Voltage(V)	12
Physical Specification
Gear Ratio(xx:1)	540
Gearbox Shape	Round
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	15.5
