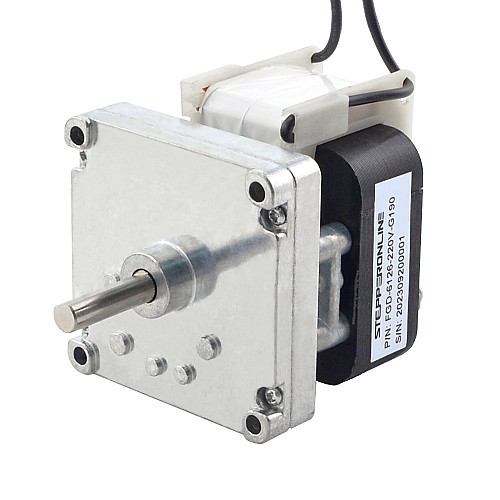

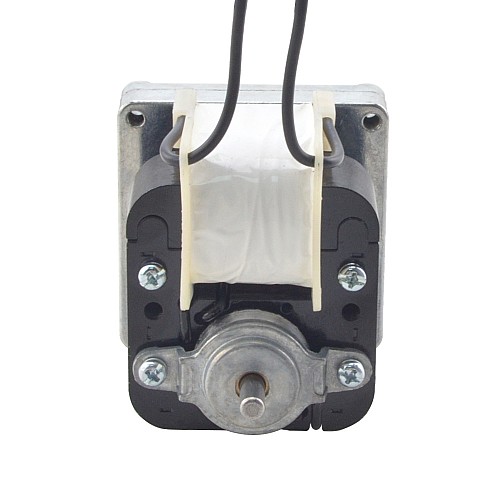

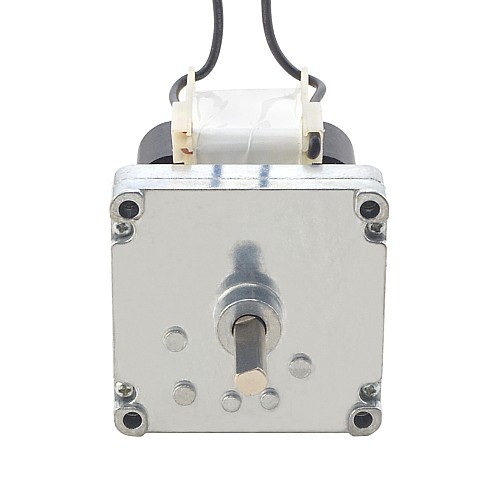

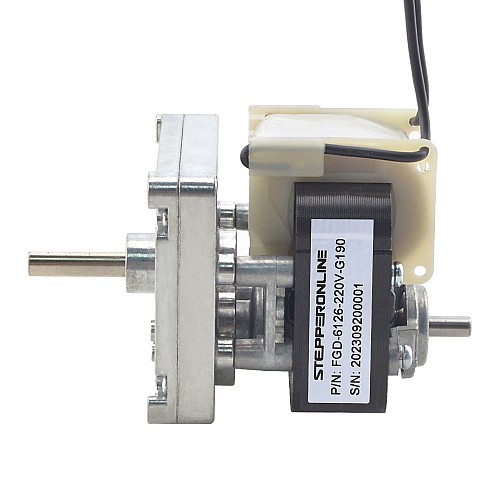

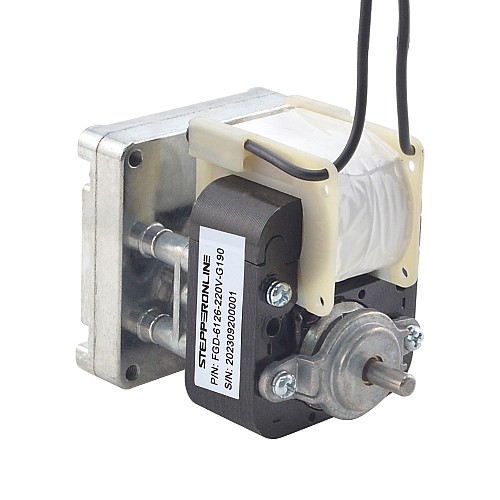

220V AC Gear Motor 20Kg.cm/14RPM w/ 190:1 Rectangular Spur Gearbox

0 reviews - Write a review

C$34.60

5 + C$33.42

10 + C$32.31

50 + C$31.27

100 + C$30.31

In Stock: 10000
Model: FGD-6126-220V-G190
Gross Weight: 1.35kg
Certificated: ISO, CE

Sold: 25

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This is a standard 220 volt brushed AC gear motor, generating 20kg.cm of torque at 14rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 190 : 1 rectangular gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: FGD-6126-220V-G190
Rated Voltage: 220V
Rated Torque: 20kg.cm(276.6oz.in)
Rated Current: <=400mA
Rated Speed: 14rpm
No-load Current: <=350mA
No-load Speed: 14.7rpm
Rotation Direction: CW/CCW
Motor Type: Brushed AC Motor

Gearbox Specification

Gearbox Type: Rectangular Gearbox
Gear Ratio: 190 : 1

Physical Specification

Motor Length: 26mm
Gearbox Size: 70 x 70 x 18mm
Front Shaft Diameter: Φ8mm
Front Shaft Length: 27mm
D-cut Length: 27mm
Rear Shaft Diameter: Φ6mm
Rear Shaft Length: 12.5mm

Electrical Specification
Rated Current(A)	0.4
Rated Speed(rpm)	14
Rated Torque(kg.cm)	20
Rated Voltage(V)	220
Physical Specification
Gear Ratio(xx:1)	190
Gearbox Shape	Rectangular
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	27
